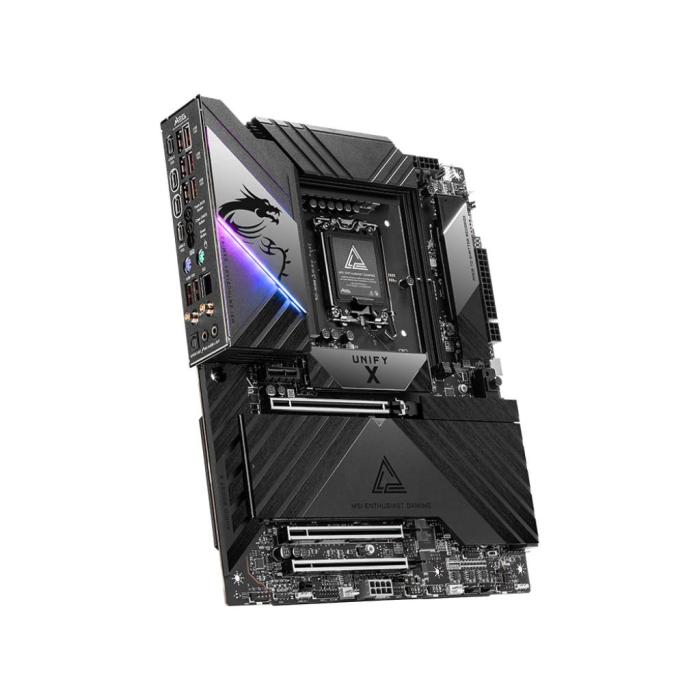

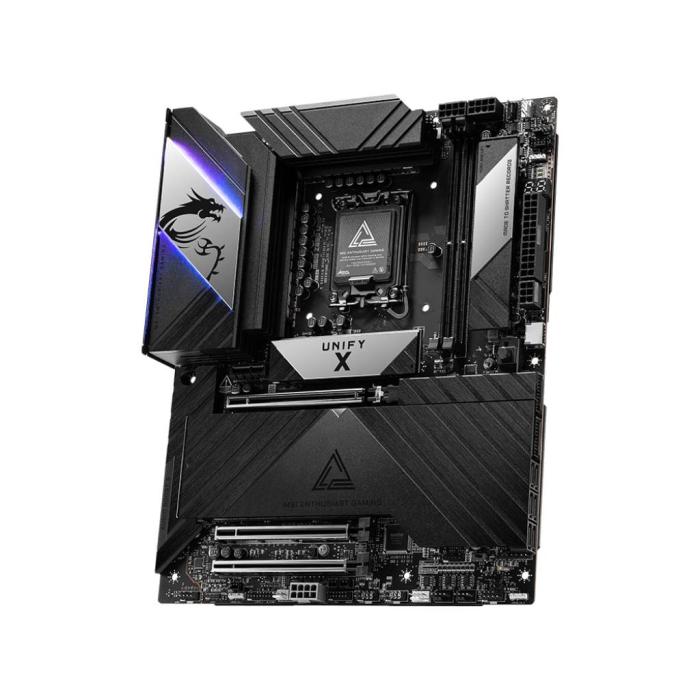

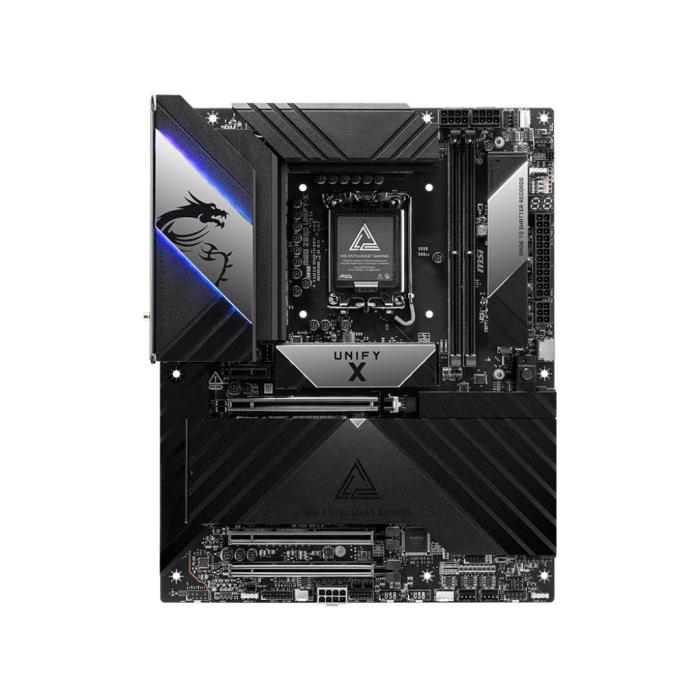

MSI MEG Z890 UNIFY-X motherboard Intel Z890 LGA 1851 (Socket V1) ATX

$767.46
$767.46 without VAT

More info

Brand: MSI
SKU: 110358 PRC: 594736 EAN: 4711377266970 PN: 7E20-001R

Description

MSI MEG Z890 UNIFY-X, Intel, LGA 1851 (Socket V1), Intel Core Ultra (Series 2), Intel LGA1851, 128 GB, DDR5-SDRAM

Specifications

Processor

  • Processor manufacturer: Intel
  • Processor socket: LGA 1851 (Socket V1)
  • Compatible processor series: Intel Core Ultra (Series 2)
  • Supported processor sockets: Intel LGA1851
  • Maximum internal memory supported by processor: 128 GB

Memory

  • Supported memory types: DDR5-SDRAM
  • Number of memory slots: 2
  • Memory slots type: DIMM
  • Memory channels: Dual-channel
  • ECC сompatibility: Non-ECC
  • Supported memory clock speeds: 4800, 6400 MHz
  • Supported memory clock speed (max): 9600 MHz
  • Maximum internal memory: 128 GB

Storage controllers

  • Supported storage drive types: HDD & SSD
  • Supported storage drive interfaces: M.2, SATA III
  • Number of storage drives supported: 6
  • RAID support: Yes
  • RAID levels: 0, 5, 10

Graphics

  • On-board graphics card: No

Internal I/O

  • USB 2.0 connectors: 4
  • Number of SATA III connectors: 6
  • Total number of SATA connectors: 6
  • ATX Power connector (24-pin): Yes
  • CPU fan connector: Yes
  • EPS power connector (8-pin): Yes
  • Number of EPS power connectors (8-pin): 1

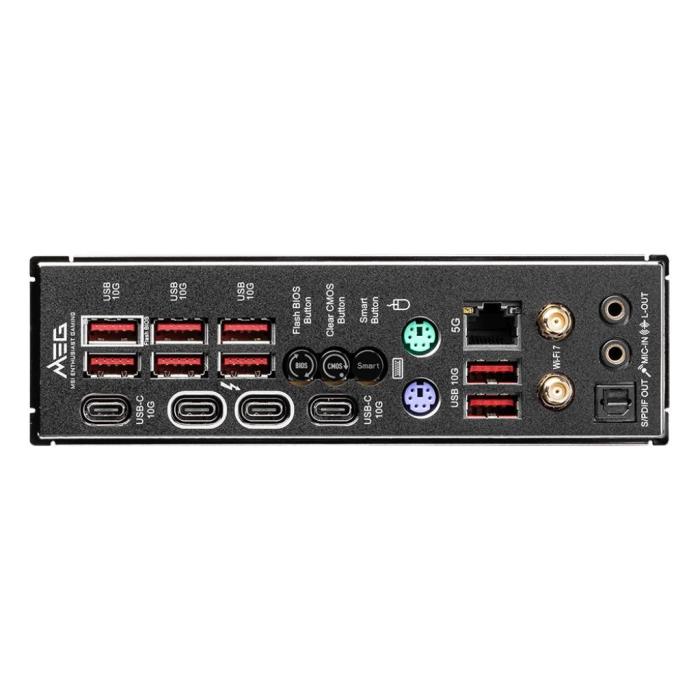

Rear panel I/O ports

  • USB 2.0 ports quantity: 4
  • Ethernet LAN (RJ-45) ports: 1
  • Thunderbolt ports quantity: 2

Network

  • Ethernet LAN: Yes
  • Ethernet interface type: 5 Gigabit Ethernet
  • Wi-Fi: Yes
  • Top Wi-Fi standard: Wi-Fi 7 (802.11be)
  • Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
  • Bluetooth: Yes
  • Bluetooth version: 5.4

Features

  • Motherboard chipset: Intel Z890
  • Audio chip: Realtek ALC4080
  • Audio output channels: 7.1 channels
  • Product colour: Black
  • Component for: PC
  • Motherboard form factor: ATX
  • Motherboard chipset family: Intel
  • Windows operating systems supported: Windows 11

Expansion slots

  • PCI Express x1 slots: 1
  • PCI Express x16 (Gen 5.x) slots: 3
  • Number of M.2 (M) slots: 6

Weight & dimensions

  • Width: 243.8 mm
  • Depth: 304.8 mm
