Description

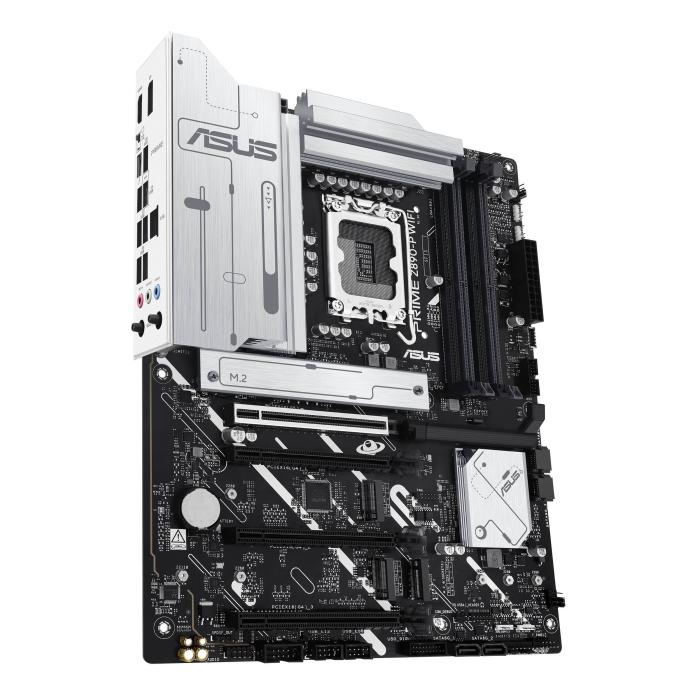

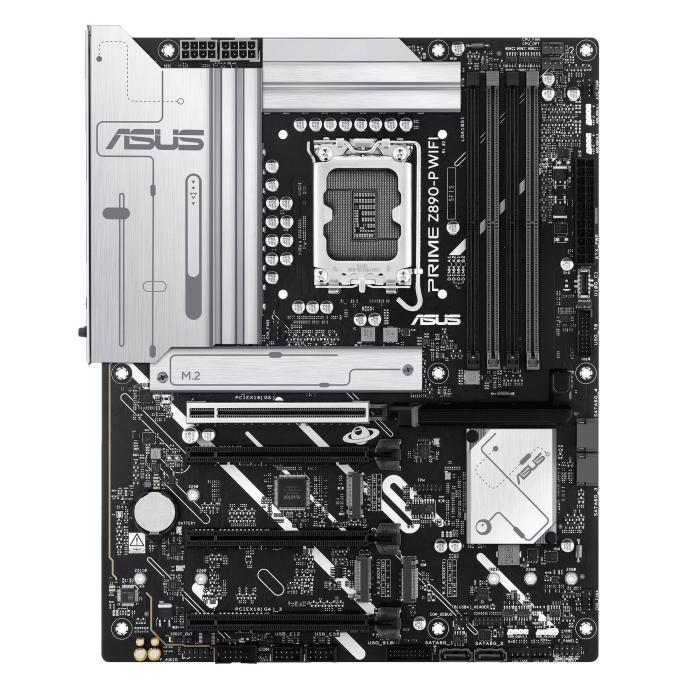

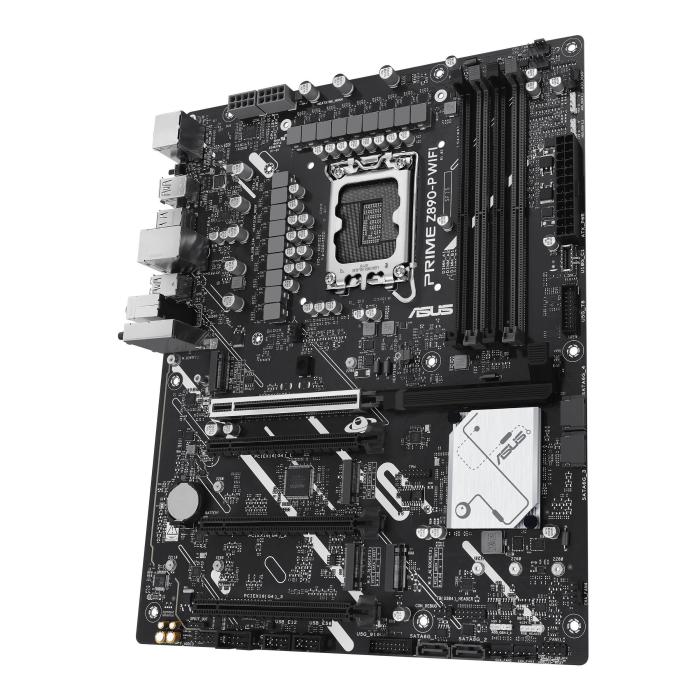

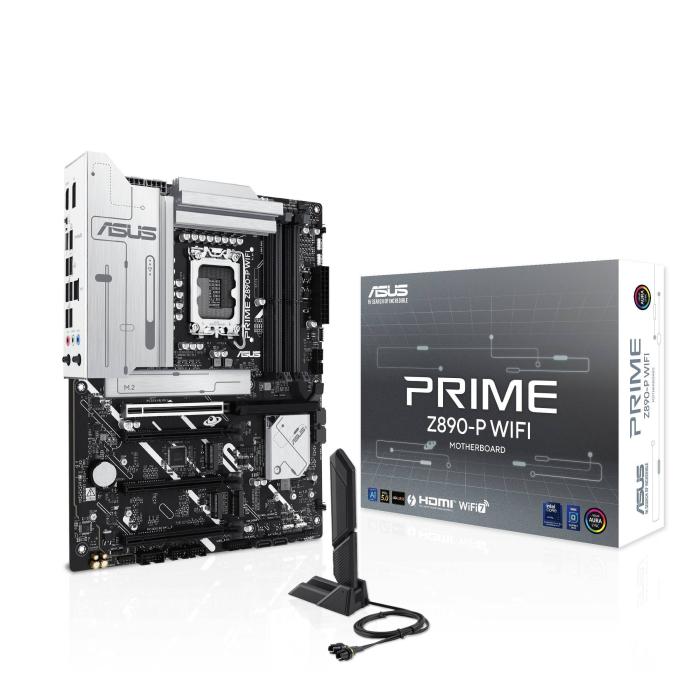

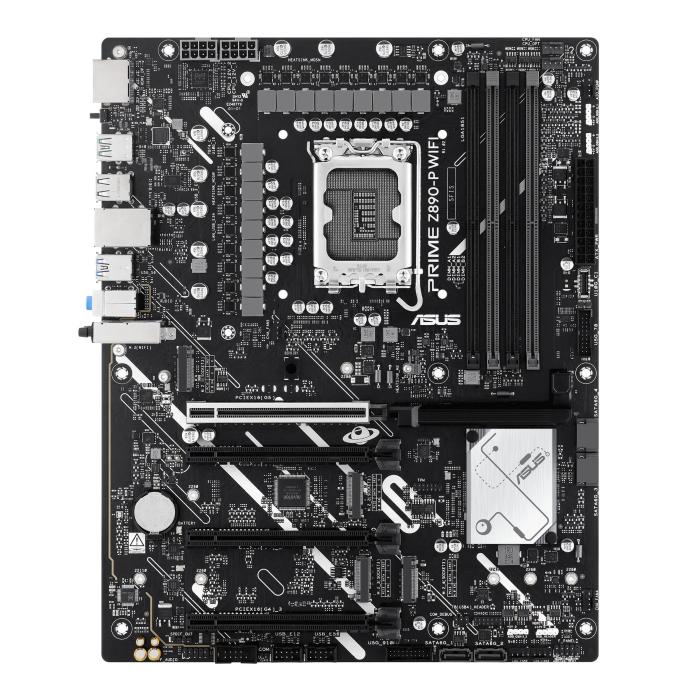

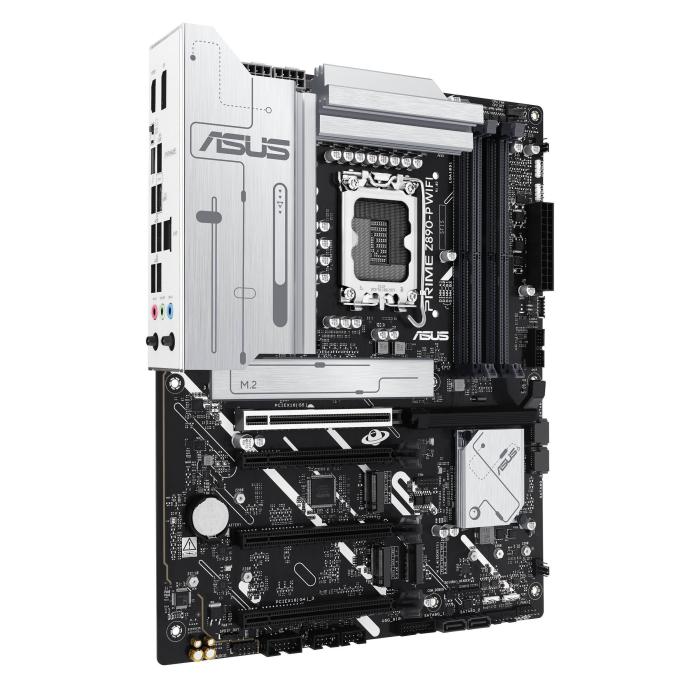

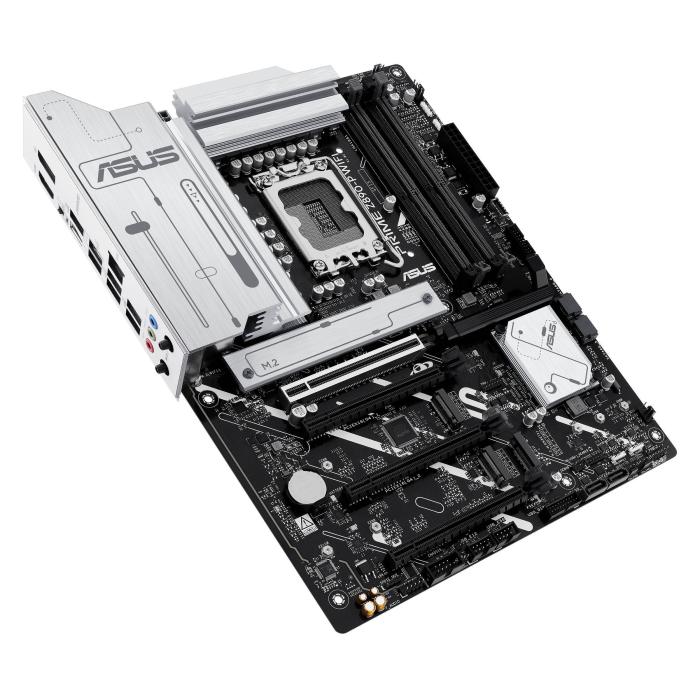

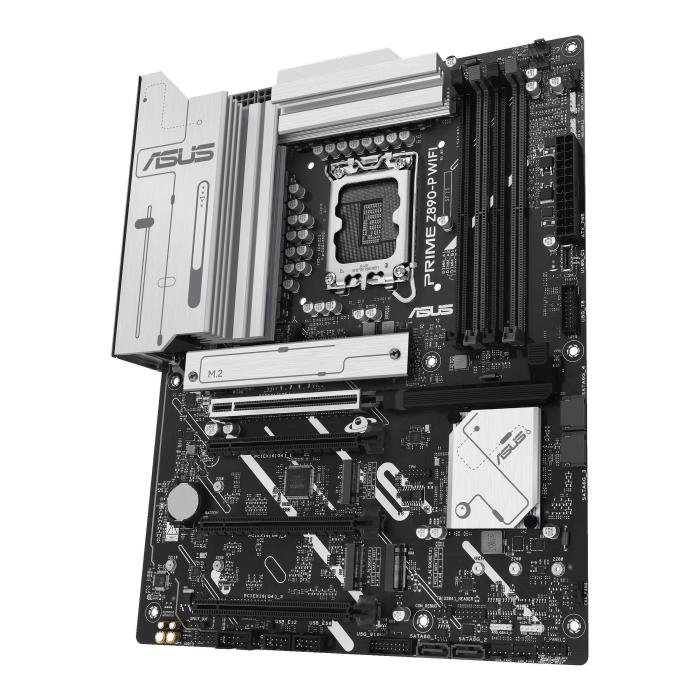

ASUS PRIME Z890-P WIFI motherboard with LGA 1851 (Socket V1) socket for Intel Core Ultra (Series 2) processors and ATX form factor. Supporting up to 192 GB of DDR5-SDRAM memory across four DIMM slots, it reaches clock speeds of 7600 MHz in dual-channel configuration. It offers flexible storage with M.2 and SATA III interfaces, RAID compatibility at levels 0, 1, 5, and 10, and supports up to eight HDD or SSD drives. With integrated Wi-Fi connectivity, this motherboard from ASUS is ready to build a desktop system with the latest-generation Intel processors.
Specifications
Processor
- Processor manufacturer: Intel
- Processor socket: LGA 1851 (Socket V1)
- Compatible processor series: Intel Core Ultra (Series 2)
Memory
- Supported memory types: DDR5-SDRAM
- Number of memory slots: 4
- Memory slots type: DIMM
- Memory channels: Dual-channel
- ECC сompatibility: Non-ECC
- Supported memory clock speed (max): 7600 MHz
- Maximum internal memory: 192 GB
- Unbuffered memory: Yes
Storage controllers
- Supported storage drive types: HDD & SSD
- Supported storage drive interfaces: M.2, SATA III
- Number of HDDs supported: 4
- Number of storage drives supported: 8
- RAID support: Yes
- RAID levels: 0, 1, 5, 10
Graphics
- Parallel processing technology support: Not supported
- On-board graphics card: No
Internal I/O
- USB 2.0 connectors: 2
- USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
- USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
- Number of SATA III connectors: 4
- S/PDIF out connector: Yes
- Front panel audio connector: Yes
- ATX Power connector (24-pin): Yes
- CPU fan connector: Yes
- Number of chassis fan connectors: 4
- EPS power connector (8-pin): Yes
- Number of COM connectors: 1
- TPM connector: Yes
- Thunderbolt headers: 1
- 12V power connector: Yes
- RGB LED pin header: Yes

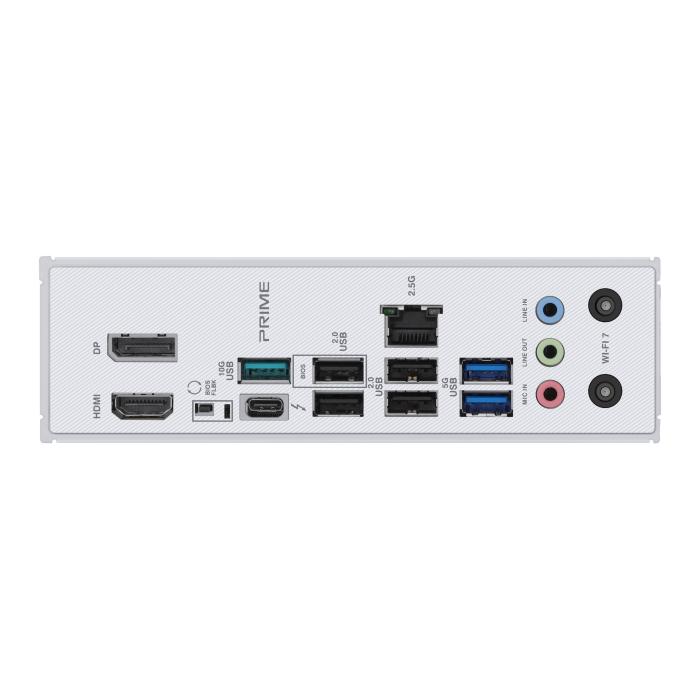

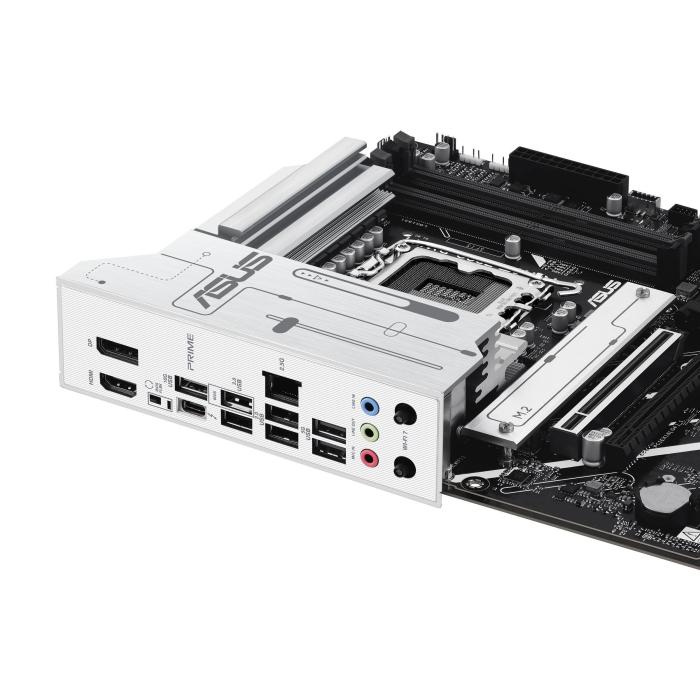

Rear panel I/O ports
- USB 2.0 ports quantity: 4
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
- Ethernet LAN (RJ-45) ports: 1
- HDMI ports quantity: 1
- HDMI version: 2.1
- DisplayPorts quantity: 1
- DisplayPort version: 1.4
- Headphone outputs: 1
- Line-in: Yes
Network
- Ethernet LAN: Yes
- Ethernet interface type: 2.5 Gigabit Ethernet

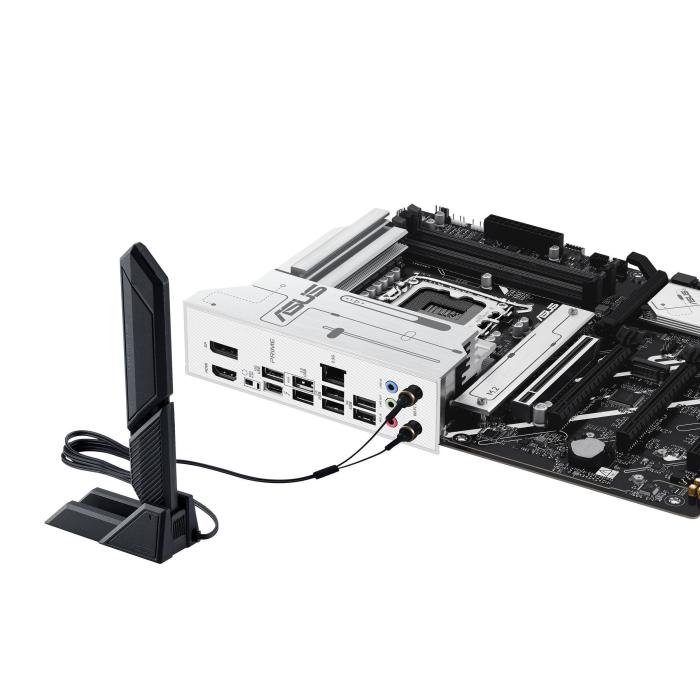

- Wi-Fi: Yes
- Top Wi-Fi standard: Wi-Fi 7 (802.11be)
- Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
- Bluetooth: Yes
- Bluetooth version: 5.4
Features
- Motherboard chipset: Intel Z890
- Audio output channels: 7.1 channels
- Product colour: Black
- Component for: PC
- Motherboard form factor: ATX
- Motherboard chipset family: Intel
- Cooling type: Passive
- Power source type: ATX
- Windows operating systems supported: Windows 10, Windows 11
Expansion slots
- PCI Express x16 (Gen 4.x) slots: 3
- PCI Express x16 (Gen 5.x) slots: 1
- Number of M.2 (M) slots: 4
BIOS
- BIOS type: UEFI AMI
- BIOS memory size: 256 Mbit
Packaging data
- Package width: 353 mm
- Package depth: 273 mm
- Package height: 68 mm
- Package weight: 1.89 kg
Weight & dimensions
- Width: 305 mm
- Depth: 244 mm

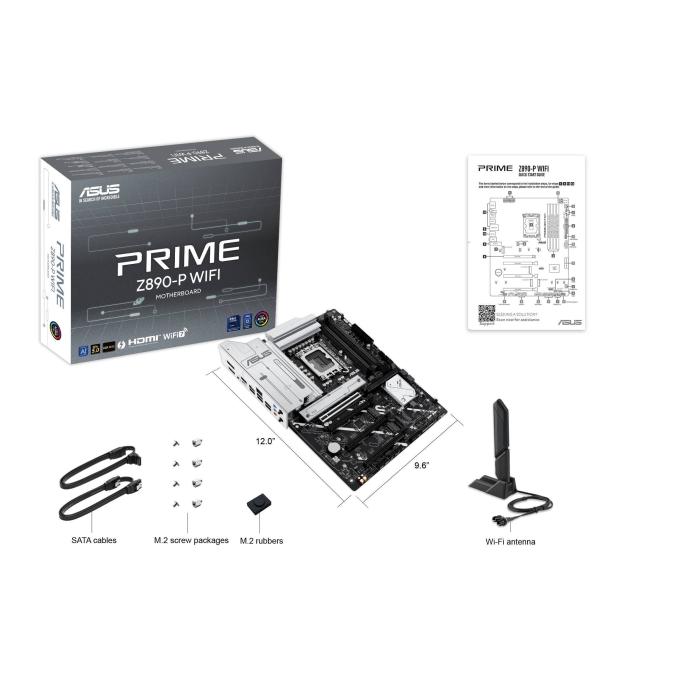

Packaging content
- Cables included: SATA
Other features
- Quick installation guide: Yes
- Back-to-BIOS button: Yes
