Description

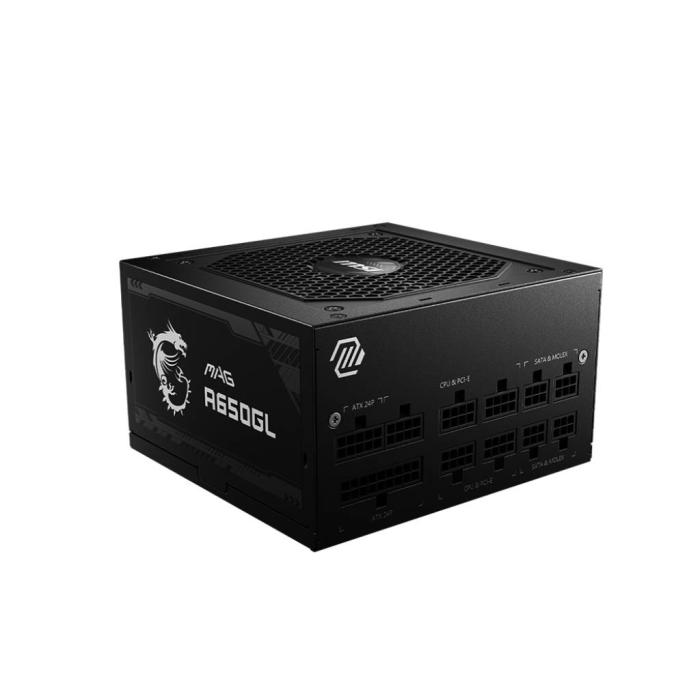

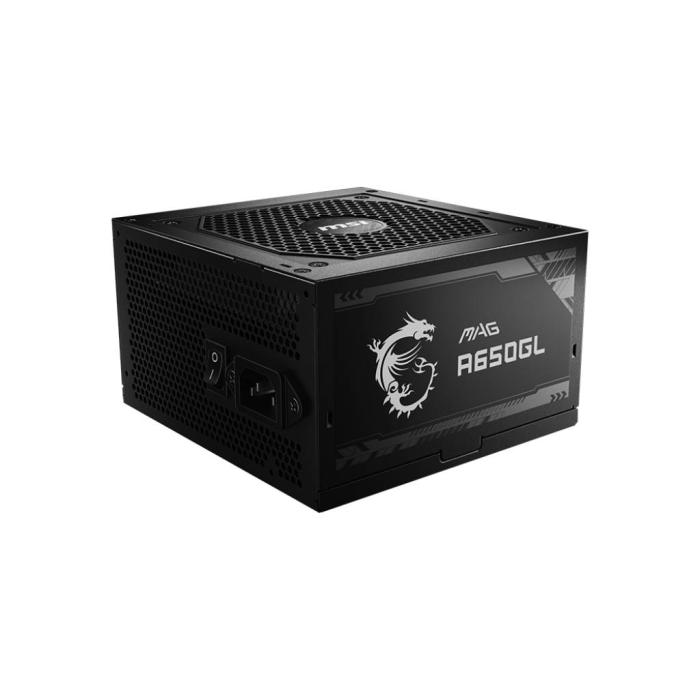

The MSI MAG A650GL power supply, in its 650 W version and black ATX format, delivers a combined power of 648 W on the +12 V rail with a maximum output current of 54 A, ideal for powering demanding configurations. It features active power factor correction (active PFC) and 90% efficiency, which reduces consumption and heat generation. It includes protection against overcurrent, overvoltage, overvoltage and short circuit, as well as a 20+4 pin main power connector for standard ATX motherboards. Designed to operate with input voltages of 100-240 V, it adapts to different electrical networks without the need for manual adjustments.
Specifications
Power
- Total power: 650 W
- AC input voltage: 100 - 240 V
- Maximum input current (@110V): 10 A
- Maximum input current (@220V): 5 A
- Power Factor Correction (PFC) type: Active
- Combined power (+3.3V): 100 W
- Combined power (+12V): 648 W
- Combined power (+5V): 100 W
- Combined power (-12V): 3.6 W
- Combined power (+5Vsb): 12.5 W
- Max output current (+3.3V): 20 A
- Max output current (+12V): 54 A
- Max output current (+5V): 20 A
- Max output current (-12V): 0.3 A
- Max output current (+5Vsb): 20 A
- Efficiency: 90%
- Power protection features: Over current, Over power, Over voltage, Short circuit
Ports & interfaces

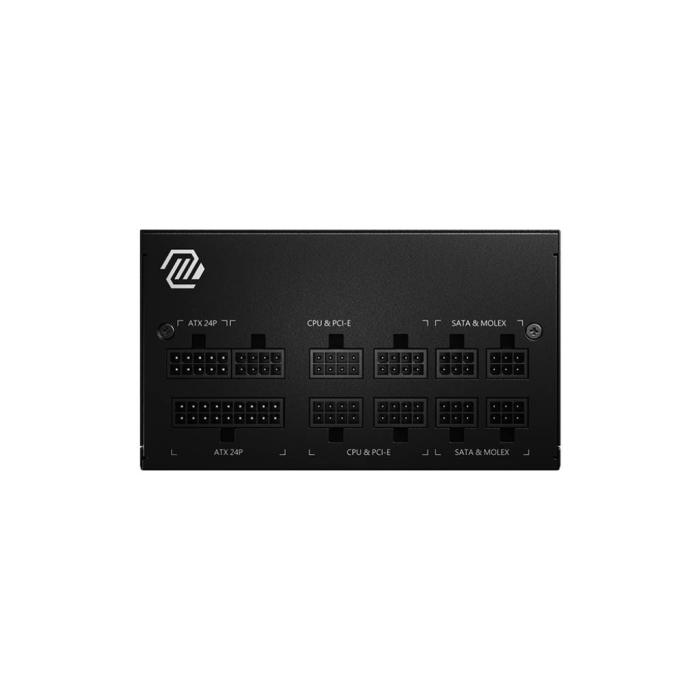

- Motherboard power connector: 20+4 pin ATX
- Number of SATA power connectors: 6
- Peripheral (Molex) power connectors (4-pin): 4
- EPS power connector (8-pin): No
- EPS power connector (4+4 pin): Yes
- PCI Express power connectors (6+2 pin): 4
- CPU power connector (4+4 pin): Yes
- ATX Power connector (24-pin): No
- ATX power connector (20+4 pin): Yes
- Floppy disk drive connector: No
- Cabling type: Fully-Modular
Performance
- 80 PLUS certification: 80 PLUS Bronze
- Purpose: PC
- Power supply unit (PSU) form factor: ATX
Design
- Product colour: Black
- Cooling type: Active

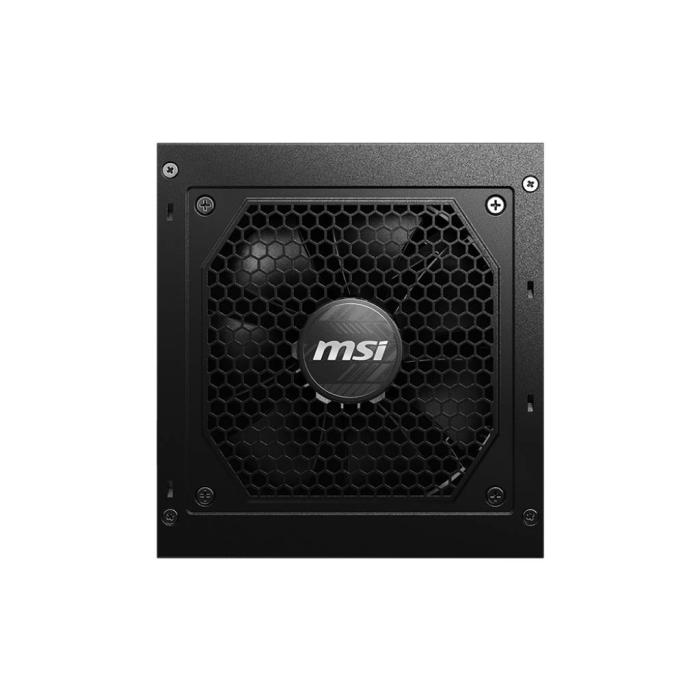

- Fan diameter: 12 cm
- Number of fans: 1 fan(s)
- Illumination: No
- On/off switch: Yes
Weight & dimensions
- Width: 150 mm
- Depth: 140 mm
- Height: 86 mm
Logistics data
- Harmonized System (HS) code: 84733020
