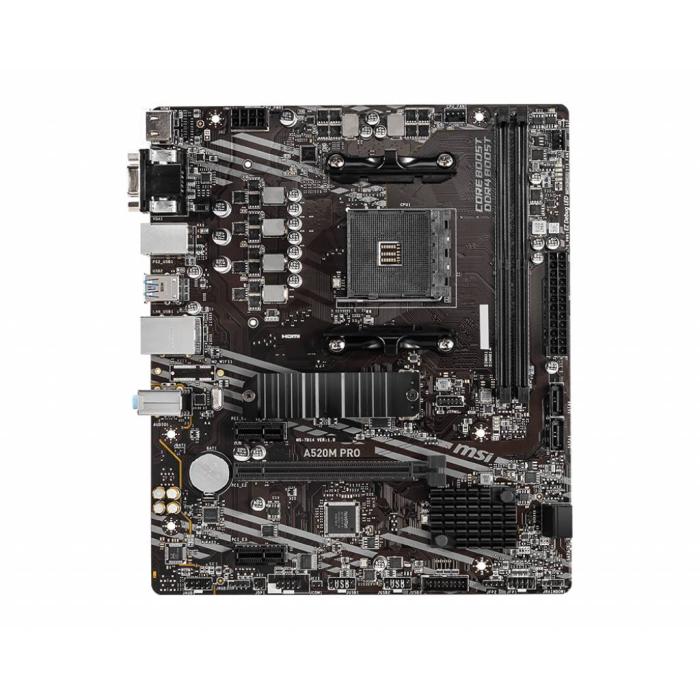

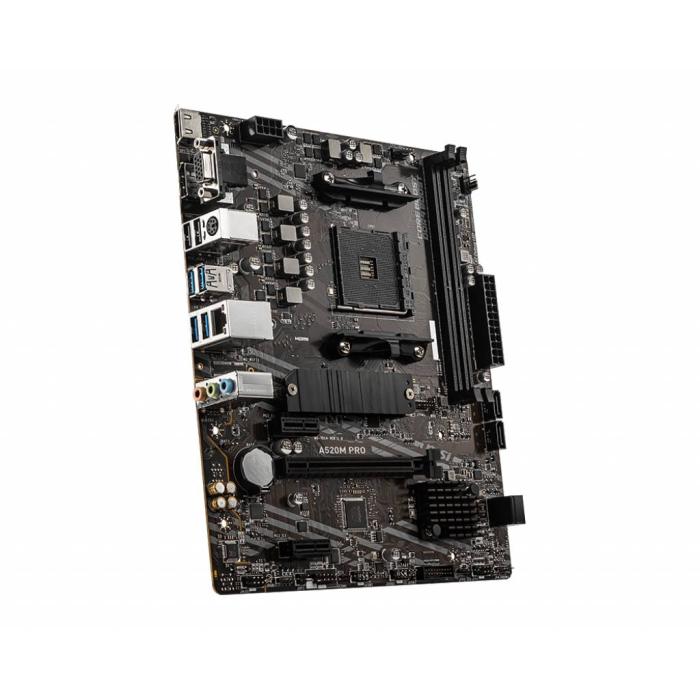

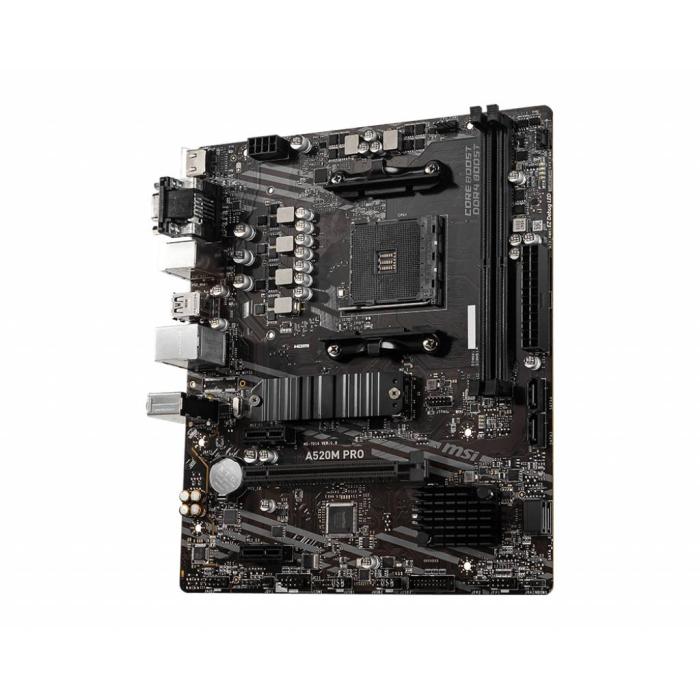

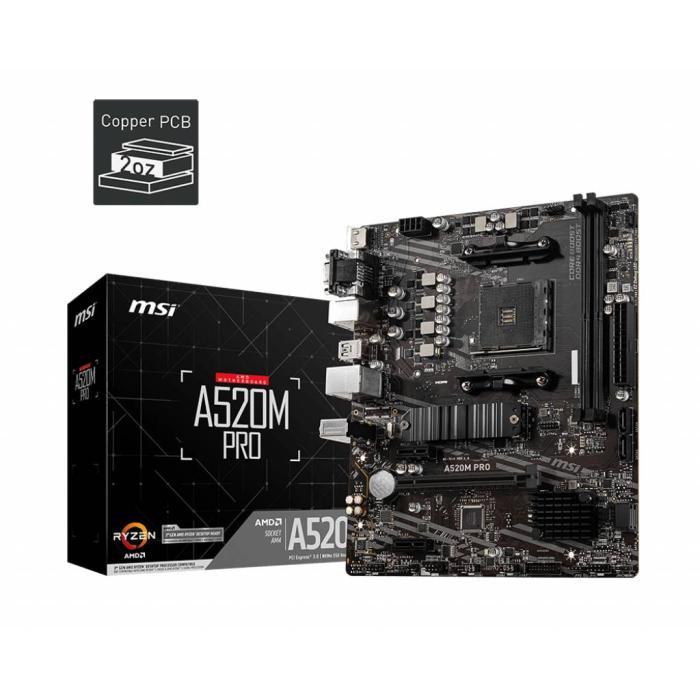

MSI A520M PRO motherboard AMD A520 Socket AM4 micro ATX

Not avaliable

MSI A520M PRO motherboard AMD A520 Socket AM4 micro ATX. More info

Amount

Brand: MSI

SKU: 91587 PRC: 355560 EAN: 4719072755492 PN: A520M PRO

Description

Specifications

Processor

Processor manufacturer: AMD
Processor socket: Socket AM4
Compatible processor series: AMD Ryzen 3000 Series
Maximum number of SMP processors: 1

Memory

Supported memory types: DDR4-SDRAM
Number of memory slots: 2
Memory slots type: DIMM
Memory channels: Dual-channel
ECC сompatibility: ECC & Non-ECC
Supported memory clock speeds: 1866, 2133, 2400, 2667, 2800, 2933, 3000, 3066, 3200, 3466, 3600, 3733, 3866, 4000, 4133, 4266, 4400, 4466 MHz
Maximum internal memory: 64 GB
Unbuffered memory: No

Storage controllers

Supported storage drive types: HDD & SSD
Supported storage drive interfaces: PCI Express 3.0, SATA
RAID levels: 0, 1, 10

Graphics

Maximum resolution: 4096 x 2160 pixels

Internal I/O

USB 2.0 connectors: 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
Number of SATA III connectors: 4
Total number of SATA connectors: 4
Front panel audio connector: Yes
Front panel connector: Yes
ATX Power connector (24-pin): Yes
CPU fan connector: Yes
Number of chassis fan connectors: 1
Chassis intrusion connector: Yes

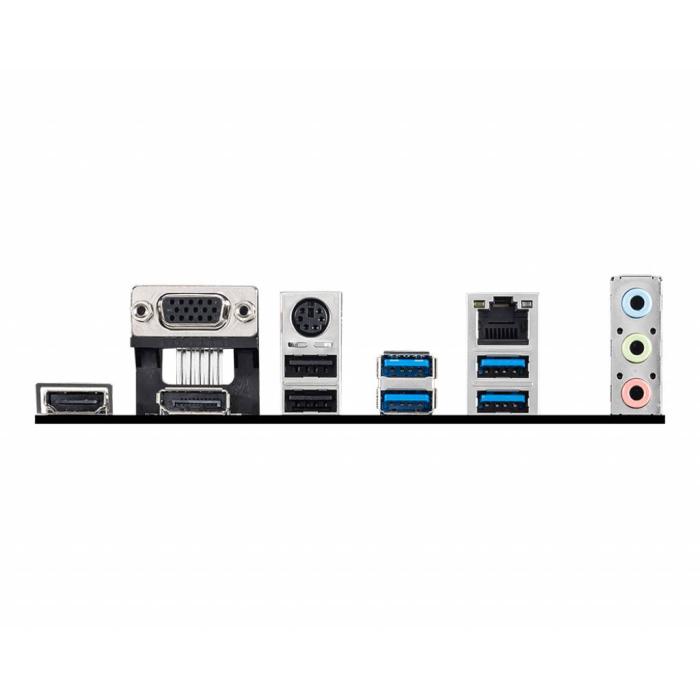

Rear panel I/O ports

USB 2.0 ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
Ethernet LAN (RJ-45) ports: 1
PS/2 ports quantity: 1
VGA (D-Sub) ports quantity: 1
HDMI ports quantity: 1
DisplayPorts quantity: 1
Microphone in: Yes

Network

Ethernet LAN: Yes
Ethernet interface type: Gigabit Ethernet
LAN controller: Realtek 8111H
Wi-Fi: No

Features

Motherboard chipset: AMD A520
Audio chip: Realtek ALC892
Audio output channels: 7.1 channels
Component for: PC
Motherboard form factor: micro ATX
Motherboard chipset family: AMD
Power source type: ATX
Number of mounting holes: 6

Expansion slots

PCI Express x1 (Gen 3.x) slots: 2
PCI Express x16 slots: 1
Number of M.2 (M) slots: 1

Logistics data

Harmonized System (HS) code: 84733020

Weight & dimensions

Width: 244 mm
Depth: 210 mm
Height: 65 mm

Other features

Weight: 698 g
