Description

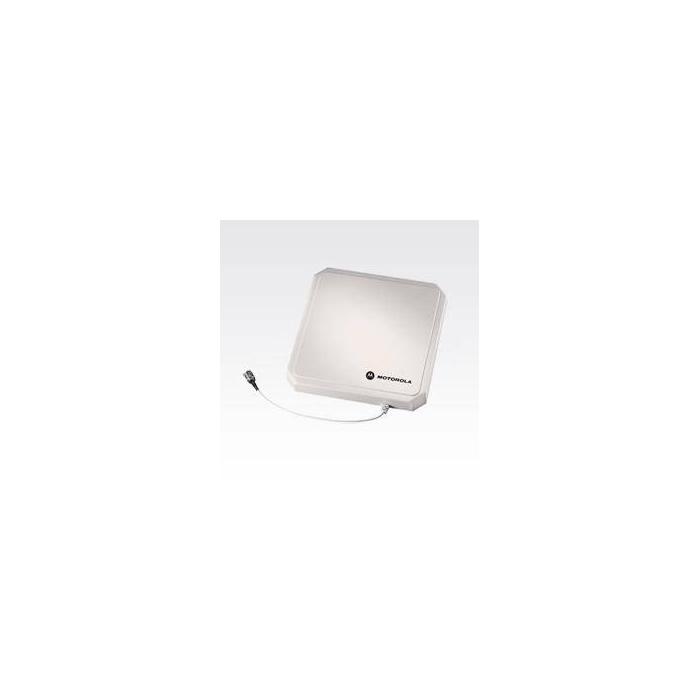

Motorola AN480-CL66100WR antenna in white, designed for Class N networks with a maximum gain of 6 dBi and an impedance of 50 Ω. Wall-mountable, it offers horizontal polarisation and a VSWR of 1.22:1, with a power handling of 2 W. It includes a Class N antenna connector and operates over a frequency range of 865-868 MHz, ideal for outdoor network applications. Manufactured by Zebra under the antennas category, it carries IP 54, IEC-68, UL-746C and RoHS certifications, ensuring durability and regulatory compliance. Its compact dimensions of 259.1 mm in width, 258.1 mm in depth and 50.3 mm in height, along with a weight of 1.13 kg, facilitate its fixed installation.
Specifications
Performance
- Impedance: 50 Ω
- Antenna gain level (max): 6 dBi
Features
- Antenna connector type: N-type
- Polarization: Horizontal polarization
- Voltage Standing Wave Ratio (VSWR): 1.22:1
- Product colour: White
- Power handling: 2 W
- Mounting: Wall
Certificates
- Compliance certificates: RoHS
- Certification: IP 54 IEC-68 UL-746C
Weight & dimensions
- Width: 259.1 mm
- Depth: 258.1 mm
- Height: 50.3 mm
- Weight: 1.13 kg
Logistics data
- Harmonized System (HS) code: 85177100
Other features
- Frequency range: 865-868 MHz
