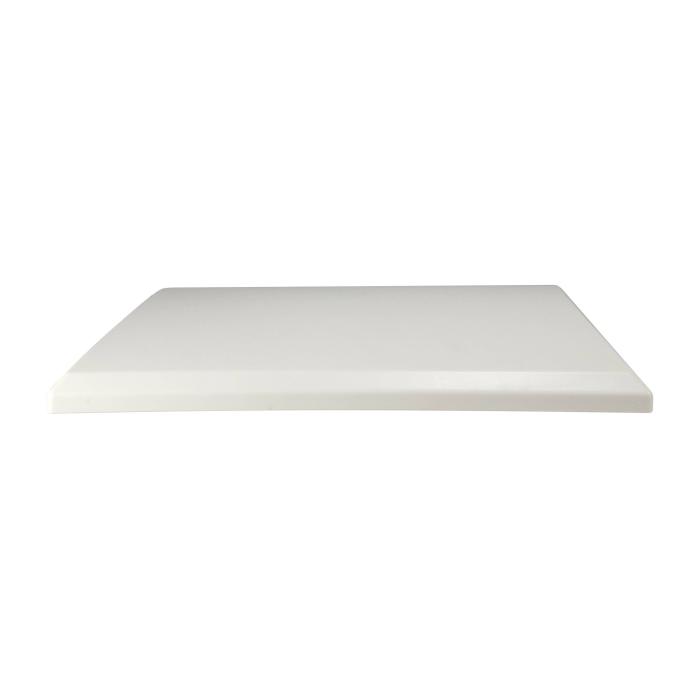

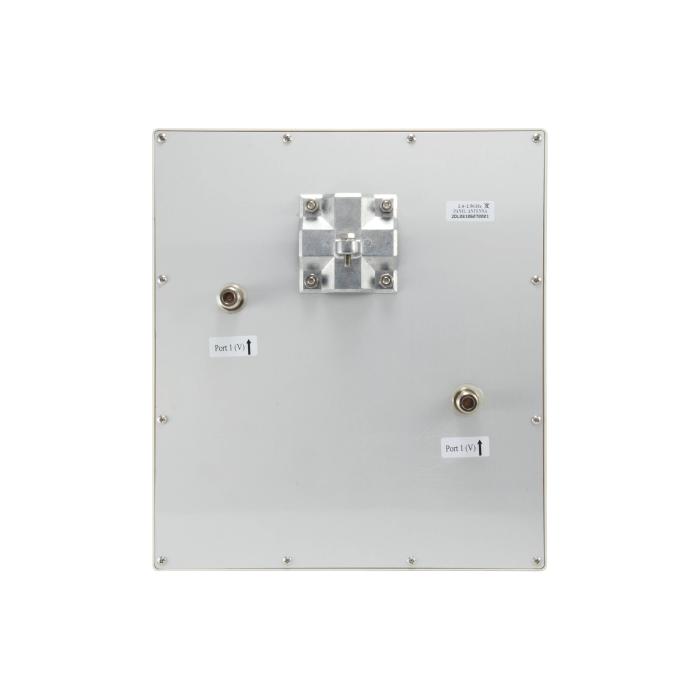

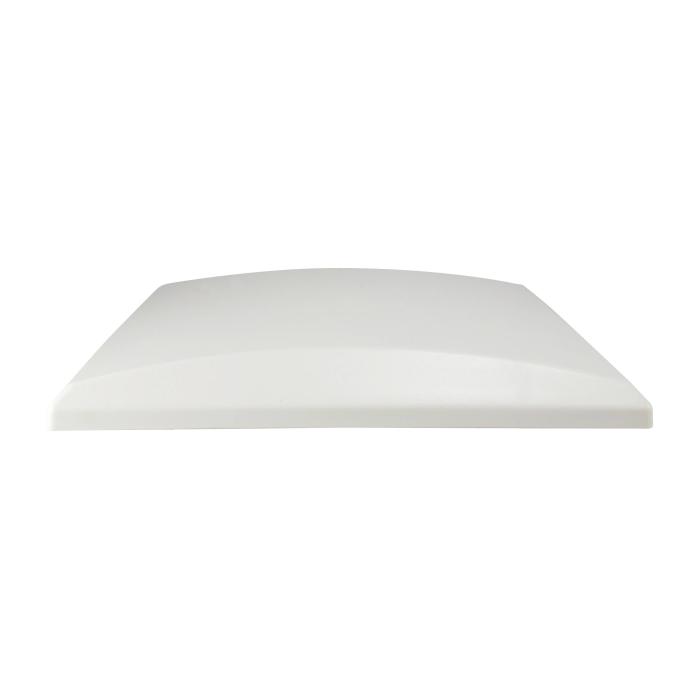

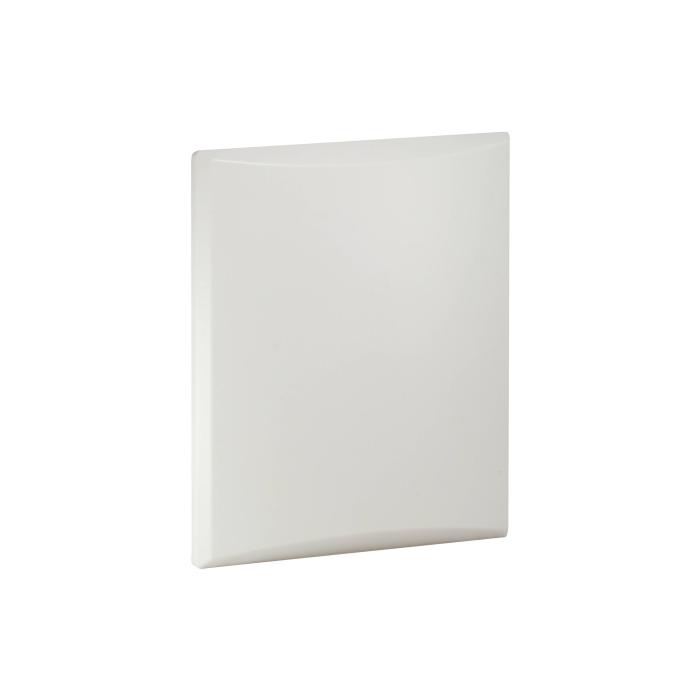

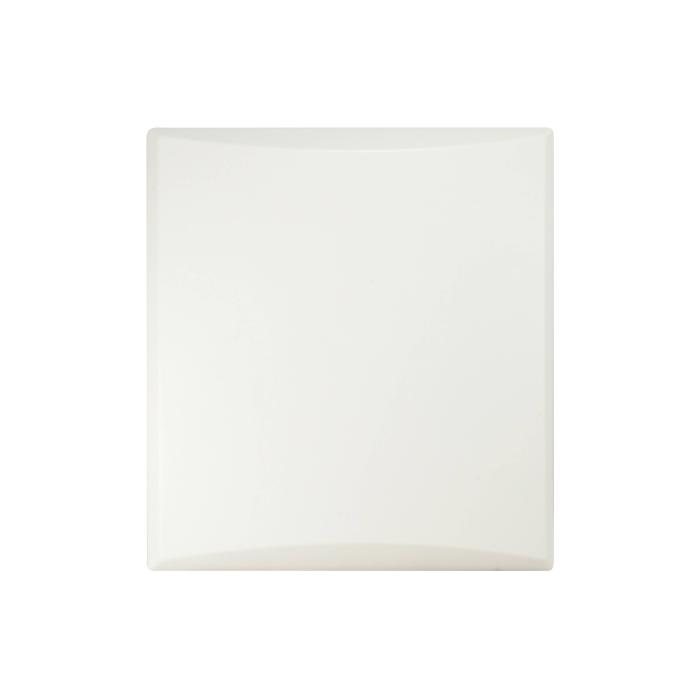

Name: LevelOne 15dBi 2.4GHz Directional Dual-Polarization Panel Antenna, Indoor/Outdoor
Brand: LEVELONE
Price: 293.82 EUR
Availability: InStock

LevelOne 15dBi 2.4GHz Directional Dual-Polarization Panel Antenna, Indoor/Outdoor

293.82 €

242.83 € without VAT

Amount

Brand: LEVELONE

SKU: 118817 PRC: 313224 EAN: 4015867203576 PN: WAN-7151

Specifications

Performance

Frequency band: 2.4 ~ 2.5 GHz
Networking standards: IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Impedance: 50 Ω
Horizontal beam width: 30°
Vertical beam width: 15°
Antenna gain level (max): 15 dBi

Features

Survival wind speed: 180 km/h
Purpose: Indoor & outdoor
Maximum cable loss with connectors: -10 dB
Antenna type: Directional antenna
Antenna connector type: N-type
Polarization: Dual polarization
Voltage Standing Wave Ratio (VSWR): 2.0
Product colour: Grey
Protection features: Dust resistant, Snow resistant, Water resistant

Operational conditions

Operating temperature (T-T): -30 - 60 °C
Operating relative humidity (H-H): 0 - 95%

Weight & dimensions

Width: 295 mm
Depth: 330 mm
Height: 35 mm
Weight: 904 g

Packaging data

Package width: 333 mm
Package depth: 354 mm
Package height: 84 mm
Package weight: 1.81 kg
Package type: Box

Packaging content

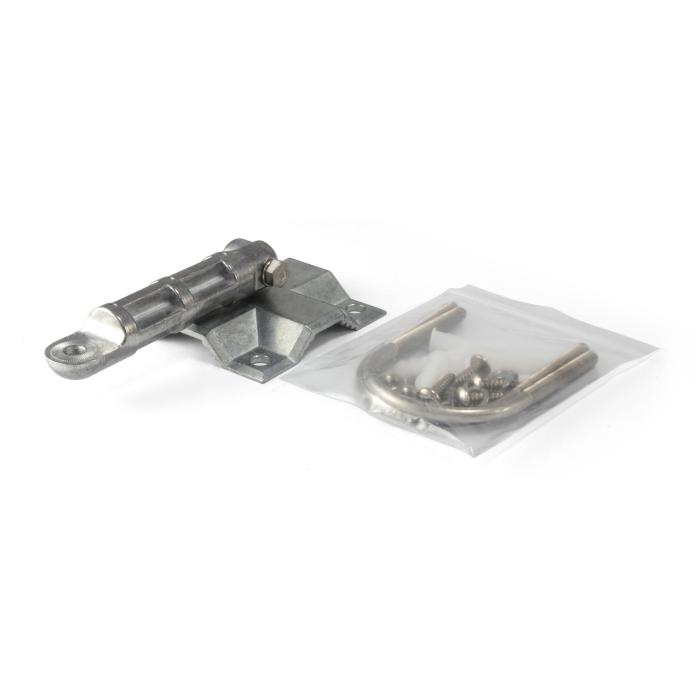

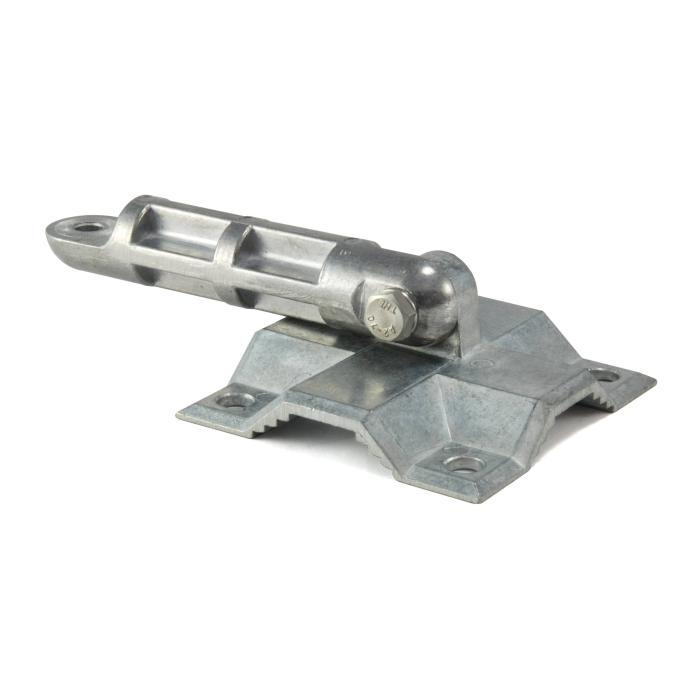

Mounting kit: Yes
Quick installation guide: Yes

Logistics data

Harmonized System (HS) code: 85177100
Country of origin: Taiwan
Master (outer) case width: 460 mm
Master (outer) case length: 447 mm
Master (outer) case height: 370 mm
Master (outer) case gross weight: 20 kg
Products per master (outer) case: 10 pc(s)
