Description

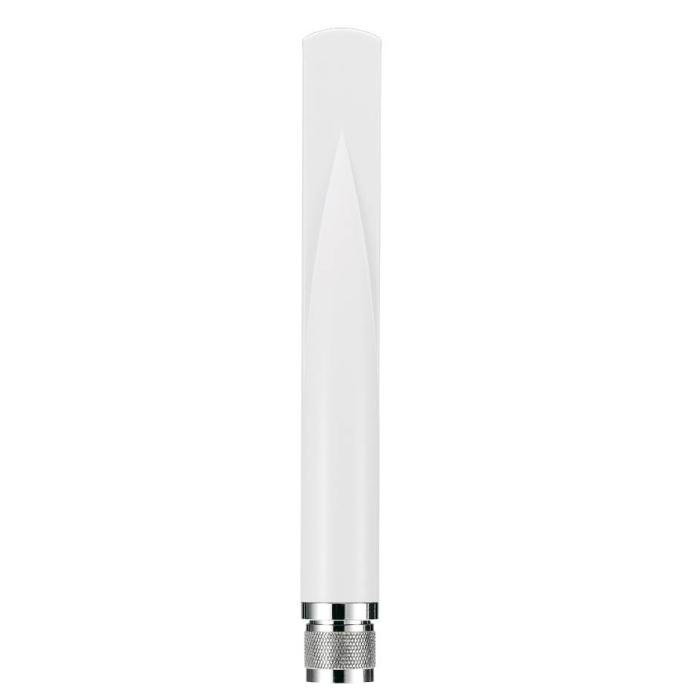

The Zyxel ANT2105-ZZ0201F is an outdoor omni-directional antenna with an N-type connector, designed to extend the coverage of dual-band 2.4 and 5 GHz wireless networks. Its vertical polarisation and 360° horizontal beamwidth allow it to spread the signal in all directions, while the vertical beamwidth is 30° at 2.4 GHz and 15° at 5 GHz, which concentrates the energy into a narrow lobe and extends the range. The antenna gain reaches 4.5 dBi at 2.4 GHz and 7 dBi at 5 GHz, with an impedance of 50 Ω that matches standard network equipment. It comes in white, weighs 70 g and supports operating temperatures from -10 to 70 °C with a relative humidity of 0 to 95 %. Install it on poles or masts to link sites, warehouses or outdoor areas where indoor wifi does not reach reliably.
Specifications
Performance
- Frequency band: 2.4/5 GHz
- Antenna gain (2.4 GHz): 4.5 dBi
- Antenna gain (5 GHz): 7 dBi
- Impedance: 50 Ω
- Horizontal beam width: 360°
- Vertical beam width: 30°
- Horizontal beam width (2.4 GHz): 360°
- Vertical beam width (2.4 GHz): 30°
- Horizontal beam width (5 GHz): 360°
- Vertical beam width (5 GHz): 15°
- Antenna gain level (max): 7 dBi
Features
- Antenna type: Omni-directional antenna
- Antenna connector type: N-type
- Polarization: Vertical polarization
- Product colour: White
- Purpose: Outdoor
Operational conditions
- Operating temperature (T-T): -10 - 70 °C
- Operating relative humidity (H-H): 0 - 95%
Weight & dimensions
- Height: 183 mm
- Diameter: 2.2 cm
- Weight: 70 g
Logistics data
- Harmonized System (HS) code: 85177100
