Description

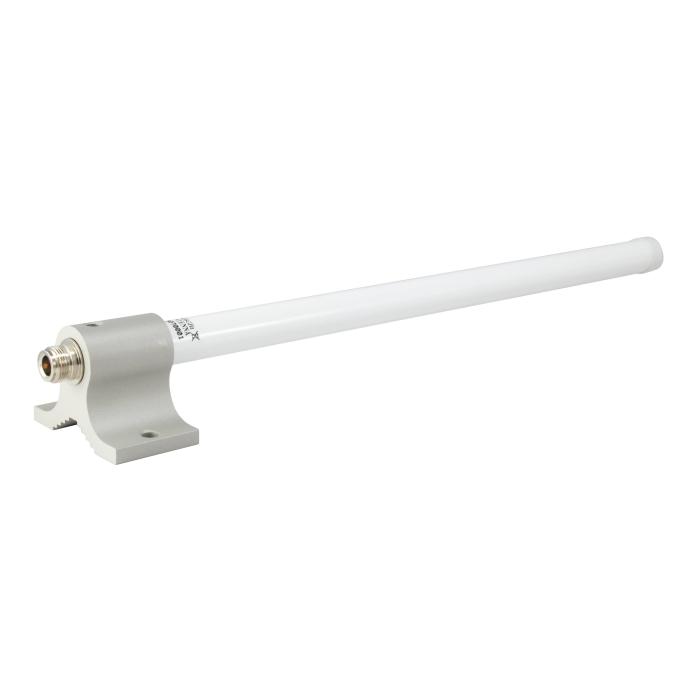

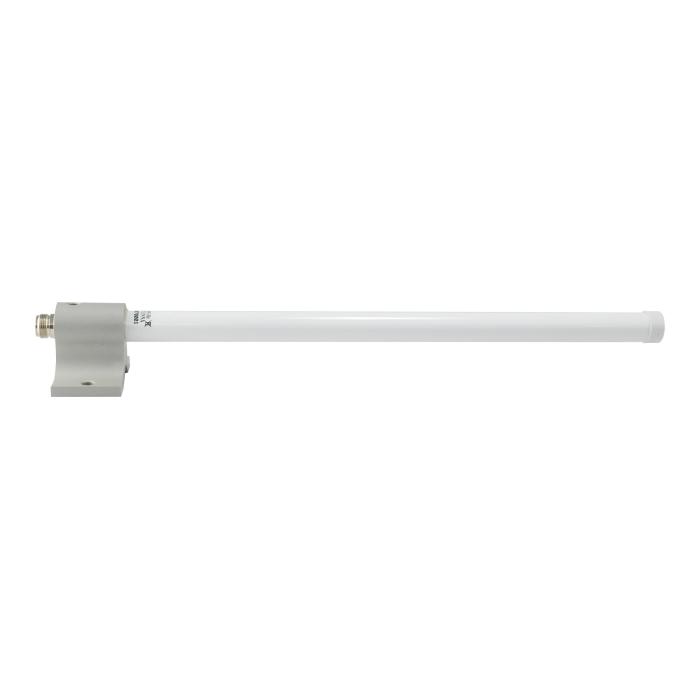

The LevelOne OAN-4102 antenna, an omnidirectional Class N model with 10 dBi gain, offers 360° horizontal and 9.6° vertical coverage, designed for IEEE 802.11a and 802.11n networks in the 5.4 to 5.835 GHz band. With 50 Ω impedance, vertical polarisation and a VSWR of 2.0, this white antenna is mast-mounted and designed for both indoor and outdoor use, resistant to dust, snow and water, with a survival wind speed of 180 km/h. Its Class N connector ensures a maximum cable loss of -10 dB, and it operates in a temperature range of -30 to 60 °C with relative humidity from 0 to 95%, making it suitable for demanding environments.
Specifications
Performance
- Frequency band: 5.4 ~ 5.835 GHz
- Networking standards: IEEE 802.11a, IEEE 802.11n
- Impedance: 50 Ω
- Horizontal beam width: 360°
- Vertical beam width: 9.6°
- Antenna gain level (max): 10 dBi
Features
- Antenna type: Omni-directional antenna

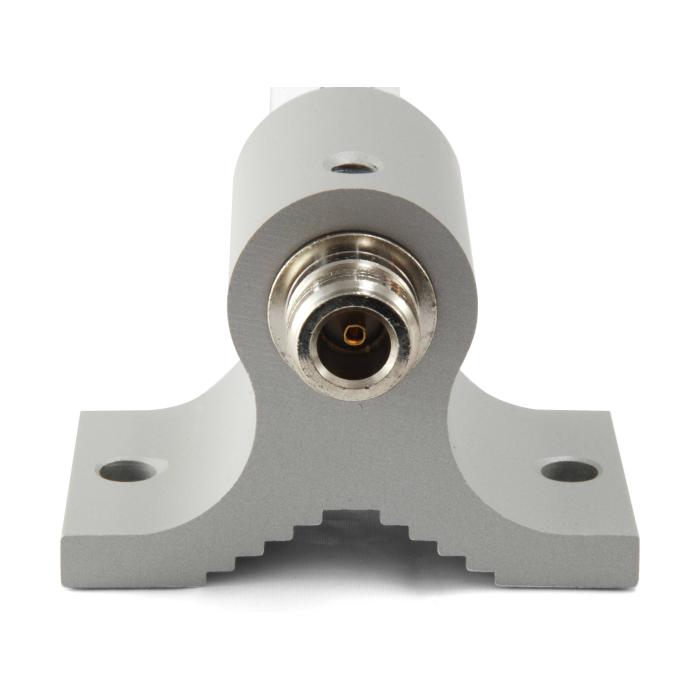

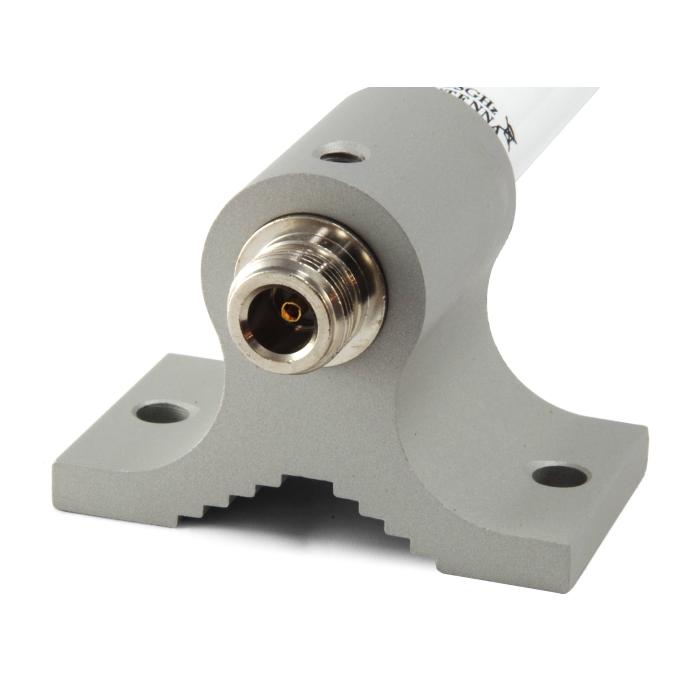

- Antenna connector type: N-type
- Polarization: Vertical polarization
- Voltage Standing Wave Ratio (VSWR): 2.0
- Product colour: White
- Protection features: Dust resistant, Snow resistant, Water resistant
- Survival wind speed: 180 km/h
- Mounting: Pole
- Purpose: Indoor & outdoor
- Maximum cable loss with connectors: -10 dB
Operational conditions
- Operating temperature (T-T): -30 - 60 °C
- Operating relative humidity (H-H): 0 - 95%
Weight & dimensions
- Width: 70 mm
- Depth: 409 mm
- Height: 53 mm
- Weight: 262 g
Packaging data
- Package width: 86 mm
- Package depth: 472 mm
- Package height: 72 mm
- Package weight: 470 g
- Package type: Box
Packaging content

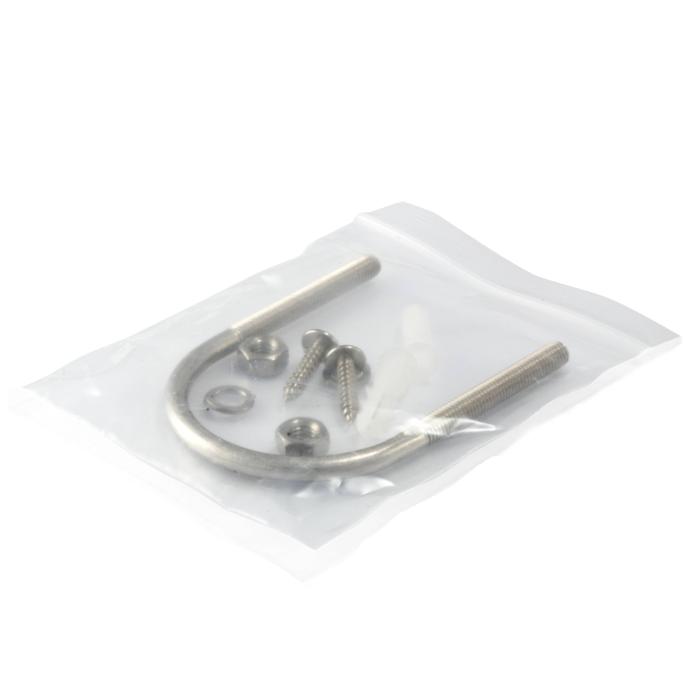

- Mounting kit: Yes
- Quick installation guide: Yes
Logistics data
- Harmonized System (HS) code: 85177100
- Country of origin: Taiwan
- Master (outer) case width: 330 mm
- Master (outer) case length: 465 mm
- Master (outer) case height: 505 mm
- Master (outer) case gross weight: 11 kg
- Products per master (outer) case: 20 pc(s)
