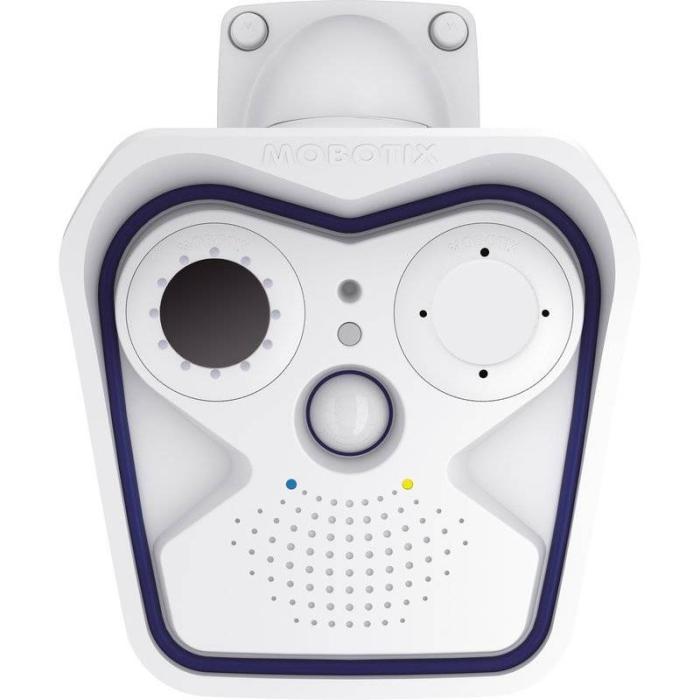

Mobotix Mx-M16TB-T237 Box IP security camera Indoor & outdoor 3072 x 2048 pixels Wall

$4,192.44
$4,192.44 without VAT

More info

Brand: MOBOTIX
SKU: 84534 PRC: 285723 EAN: 4047438031035 PN: mx-m16tb-t237

Description

Specifications

Performance

  • Type: IP security camera
  • Placement supported: Indoor & outdoor
  • Connectivity technology: Wired
  • PTZ control: Yes
  • Certification: EN55032: 2012; EN55022: 2010; EN55024: 2010; EN61000-6-1: 2007; EN61000-6-2: 2005; EN61000-6-3: 2007 + A1: 2011; EN61000-6-4: 20

Design

  • Form factor: Box
  • Mounting type: Wall
  • Product colour: White
  • LED indicators: Status
  • International Protection (IP) code: IP66
  • IK code: IK08

Camera

  • Minimum illumination: 0.001 lx
  • Lens viewing angle, horizontal: 17°
  • Lens viewing angle, vertical: 13°

Image sensor

  • Number of sensors: 1
  • Optical sensor size: 25.4 / 1.8 mm (1 / 1.8")
  • Progressive scan: Yes
  • Sensor type: CMOS

Lens system

  • Zoom capability: Yes
  • Digital zoom: 8x
  • Number of lenses: 1

Video

  • Maximum resolution: 3072 x 2048 pixels
  • Total megapixels: 6 MP
  • Video compression formats: H.264, M-JPEG, MxPEG
  • Supported graphics resolutions: 1280 x 960, 1920 x 1080 (HD 1080), 2048 x 1536 (QXGA), 2592 x 1944, 3072 x 2048
  • Frame rate: 9 fps
  • Video streaming: Yes

Audio

  • Built-in speaker(s): Yes
  • Sample rate: 16 kHz
  • Built-in microphone: Yes
  • Voice codecs: G.711, G.722

Network

  • Ethernet LAN: Yes
  • Ethernet interface type: Fast Ethernet
  • Networking standards: IEEE 802.3af
  • Supported network protocols: IPv4, IPv6, HTTP, HTTPS, FTP, FTPS, RTP, RTSP, UDP, SNMP, SMTP, DHCP, NTP, SIP
  • Wi-Fi: No
  • Bluetooth: No
  • Cabling technology: 10/100Base-T(X)
  • Streaming method: Multicast

Storage

  • Built-in HDD: No
  • Card reader integrated: Yes
  • Compatible memory cards: MicroSD (TransFlash)

Ports & interfaces

  • USB port: Yes
  • Interface: RJ-45

Security

  • Temperature sensor: Yes
  • Motion sensor: Yes
  • Motion sensor technology: Passive infrared (PIR) sensor

Management features

  • Web-based management: Yes

Power

  • Power source type: PoE
  • Power consumption (typical): 9 W

Operational conditions

  • Operating temperature (T-T): -40 - 60 °C

Weight & dimensions

  • Width: 158 mm
  • Depth: 207 mm
  • Height: 210 mm
  • Weight: 1.32 kg

Packaging content

  • Number of cameras: 1

Logistics data

  • Harmonized System (HS) code: 85258900
