Description

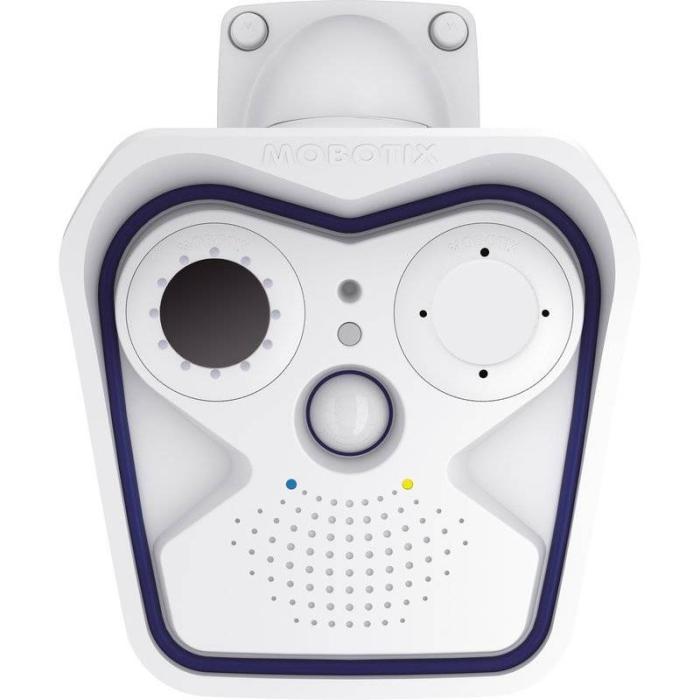

MOBOTIX Mx-M16TB-T119 box IP security camera, white, with wall mount, provides surveillance both indoors and outdoors. This model incorporates PTZ control and a 1/1.8-inch progressive scan CMOS sensor delivering a resolution of 3072 x 2048 pixels, with a minimum illumination of 0.001 lx to capture images in low-light conditions. Its single lens provides a horizontal viewing angle of 25° and a vertical angle of 19°. The housing features IP66 protection and IK08 rating, alongside an LED status indicator, and its connectivity is fully wired for fixed installation.
Specifications
Performance
- Type: IP security camera
- Placement supported: Indoor & outdoor
- Connectivity technology: Wired
- PTZ control: Yes
- Certification: EN55032: 2012; EN55022: 2010; EN55024: 2010; EN61000-6-1: 2007; EN61000-6-2: 2005; EN61000-6-3: 2007 + A1: 2011; EN61000-6-4: 20
Design
- Form factor: Box
- Mounting type: Wall
- Product colour: White
- LED indicators: Status
- International Protection (IP) code: IP66
- IK code: IK08
Camera
- Minimum illumination: 0.001 lx
- Lens viewing angle, horizontal: 25°
- Lens viewing angle, vertical: 19°
Image sensor
- Number of sensors: 1
- Optical sensor size: 25.4 / 1.8 mm (1 / 1.8")
- Progressive scan: Yes
- Sensor type: CMOS
Lens system
- Zoom capability: Yes
- Digital zoom: 8x
- Number of lenses: 1
Video
- Maximum resolution: 3072 x 2048 pixels
- Total megapixels: 6 MP
- Video compression formats: H.264, M-JPEG, MxPEG
- Supported graphics resolutions: 1280 x 960, 1920 x 1080 (HD 1080), 2048 x 1536 (QXGA), 2592 x 1944, 3072 x 2048
- Frame rate: 9 fps
- Video streaming: Yes
Audio
- Built-in speaker(s): Yes
- Sample rate: 16 kHz
- Built-in microphone: Yes
- Voice codecs: G.711, G.722
Network
- Ethernet LAN: Yes
- Ethernet interface type: Fast Ethernet
- Networking standards: IEEE 802.3af
- Supported network protocols: IPv4, IPv6, HTTP, HTTPS, FTP, FTPS, RTP, RTSP, UDP, SNMP, SMTP, DHCP, NTP, SIP
- Wi-Fi: No
- Bluetooth: No
- Cabling technology: 10/100Base-T(X)
- Streaming method: Multicast
Storage
- Built-in HDD: No
- Card reader integrated: Yes
- Compatible memory cards: MicroSD (TransFlash)
Ports & interfaces
- USB port: Yes
- Interface: RJ-45
Security
- Temperature sensor: Yes
- Motion sensor: Yes
- Motion sensor technology: Passive infrared (PIR) sensor
Management features
- Web-based management: Yes
Power
- Power source type: PoE
- Power consumption (typical): 9 W
Operational conditions
- Operating temperature (T-T): -40 - 60 °C
Weight & dimensions
- Width: 158 mm
- Depth: 207 mm
- Height: 210 mm
- Weight: 1.32 kg
Packaging content
- Number of cameras: 1
Logistics data
- Harmonized System (HS) code: 85258900
