Description

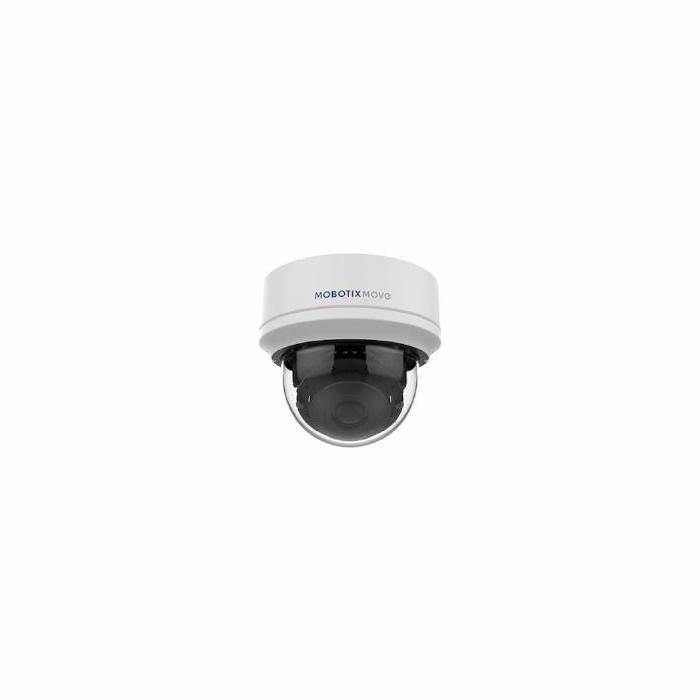

The Mobotix MX-VD2A-2-IR-VA camera comes in a pad form factor with a black and white finish, designed for ceiling, wall, or pole mounting both indoors and outdoors. This IP security model offers 1920 x 1080 pixel resolution with a single progressive scan CMOS sensor that captures horizontal viewing angles of 102.1° and vertical angles of 70.3°. It includes wide dynamic range (WDR) and an infrared cut-off filter to adapt to changing light conditions, while its IP66 certification and IK10 rating ensure resistance to weather and impacts. With wired connectivity and a mean time between failures of 40000 hours, this unit meets CE, FCC, and LVD certifications for reliable use in demanding environments.
Specifications
Performance
- Type: IP security camera
- Placement supported: Indoor & outdoor
- Connectivity technology: Wired
- Wide Dynamic Range (WDR): Yes
- Infrared (IR) cut-off filter: Yes
- Mean time between failures (MTBF): 40000 h
- Certification: CE / FCC, LVD
Design
- Form factor: Dome
- Mounting type: Ceiling/Wall/Pole
- Product colour: Black, White
- International Protection (IP) code: IP66
- IK code: IK10
- Weatherproof: Yes
Camera
- Lens viewing angle, horizontal: 102.1°
- Lens viewing angle, vertical: 70.3°
Image sensor
- Number of sensors: 1
- Optical sensor size: 25.4 / 2.7 mm (1 / 2.7")
- Progressive scan: Yes
- Sensor type: CMOS
Lens system
- Zoom capability: Yes
- Number of lenses: 1
- Focal length range: 2.7 - 12 mm
- Auto focus: Yes
- Maximum aperture number: 1.6
Night vision
- Night vision: Yes
- Night vision distance: 40 m
- LED type: IR
Video
- Maximum resolution: 1920 x 1080 pixels
- Total megapixels: 2 MP
- Video compression formats: H.264, H.265, M-JPEG
- Supported video modes: 1080p
- Frame rate: 60 fps
- Video streaming: Yes
Network
- Ethernet LAN: Yes
- Ethernet interface type: Fast Ethernet
- Networking standards: IEEE 802.3af
- Supported network protocols: ARP, PPPoE, IPv4/v6, ICMP, IGMP, TCP, UDP, DHCP, UPnP, SNMP, SMTP, RTP, RTSP, HTTP, HTTPS, FTP, NTP, DDNS
- Quality of Service (QoS) support: Yes
Ports & interfaces
- Ethernet LAN (RJ-45) ports: 1
Security
- Active tampering alarm: Yes
Power
- Power source type: AC, DC, PoE
- AC input voltage: 24 V
- Power consumption (typical): 14 W
Operational conditions
- Operating temperature (T-T): -55 - 60 °C
- Operating relative humidity (H-H): 10 - 90%
Weight & dimensions
- Width: 133.8 mm
- Depth: 133.8 mm
- Height: 117.4 mm
- Weight: 760 g
Packaging content
- Number of cameras: 1
