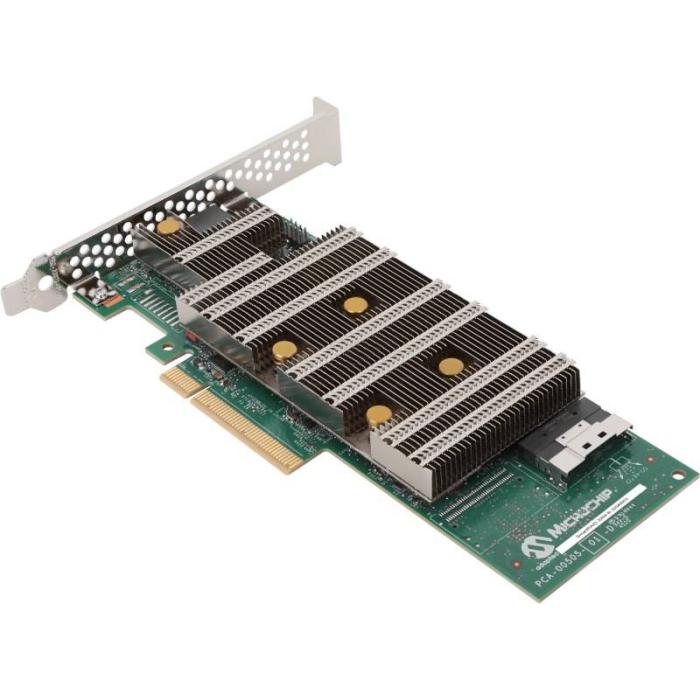

Microchip Technology SmartRAID 3254-8i RAID controller PCI Express x8 4.0 24 Gbit/s
More info
Brand: MICROCHIP TECHNOLOGY
862.00 €Stock available: 0 units.
Unavailable
SKU:
103101
PRC:
464472
EAN:
760884158449
PN:
32548IXS
Description
Microchip Technology SmartRAID 3254-8i RAID controller, a server controller card that connects via a PCI Express x8 host interface with version 4.0 and achieves a data transfer rate of 24 Gbit/s. This model manages up to eight storage devices and supports SAS-4 and Serial ATA III drives, as well as SSDs, with RAID levels 0, 1, 5, 6, 10, 50 and 60. It incorporates 4096 MB of internal DDR4 memory at a clock speed of 3200 MHz, along with features such as RAID level migration, S.M.A.R.T. support and online expansion. It is compatible with Linux and Windows 10 operating systems, and its dimensions are 64 mm in height and 167 mm in width.
Specifications
Ports & interfaces
- Supported storage drive interfaces: SAS-4, Serial ATA III
- Host interface: PCI Express x8
- PCI Express slots version: 4.0
Performance
- RAID levels: 0, 1, 5, 6, 10, 50, 60
- RAID Level Migration: Yes
- Data transfer rate: 24 Gbit/s
- SSD support: Yes
- Internal memory: 4096 MB
- Internal memory type: DDR4
- Memory clock speed: 3200 MHz
- S.M.A.R.T. support: Yes
- Number of devices supported: 8
- Online Capacity Expansion: Yes
System requirements
- Windows operating systems supported: Windows 10
- Linux operating systems supported: Yes
Weight & dimensions
- Width: 167 mm
- Height: 64 mm
Logistics data
- Harmonized System (HS) code: 84733080
