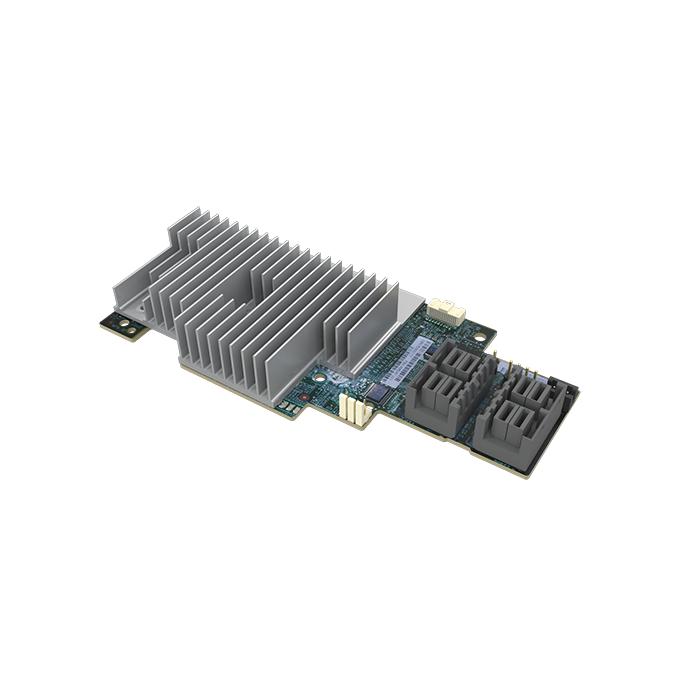

Intel RMS3AC160 RAID controller PCI Express x8 3.0 12 Gbit/s

Name: Intel RMS3AC160 RAID controller PCI Express x8 3.0 12 Gbit/s
Brand: INTEL
SKU: 141224
Price: 715.4 EUR
Availability: InStock

More info

Brand: INTEL

715.40 €

591.24 € without VAT

Stock available: 2 units.

Get it on the September 1 / September 2

SKU: 77732 PRC: 141224 EAN: 735858308571 PN: RMS3AC160

Description

The Intel RMS3AC160 RAID controller, included in the server category, is presented as a Storage Connector Module with a PCI Express x8 3.0 host interface and a 12 Gbit/s transfer rate. This device supports SAS and SATA drives, offering RAID levels 0, 1, 10, 5, 50, 6 and 60, as well as JBOD functionality, and can manage up to 240 devices. It incorporates an LSISAS3316 processor and 2048 MB of internal memory, with sideways connector orientation and compatibility with the AXXRMFBU6 backup battery to enhance reliability. Its compact form factor and RAID switching via SIOM make it easy to integrate into infrastructures demanding advanced data management.

Specifications

Ports & interfaces

Supported storage drive interfaces: SAS, Serial ATA
Host interface: PCI Express x8
PCI Express slots version: 3.0

Performance

RAID levels: 0, 1, 10, 5, 50, 6, 60
Data transfer rate: 12 Gbit/s
Form factor: Storage Connector Module
Connector orientation: Side
Internal memory: 2048 MB
JBOD function: Yes
Number of devices supported: 240
Export Control Classification Number (ECCN): 5A992C
Commodity Classification Automated Tracking System (CCATS): 740.17B1
Compatible battery backup options: AXXRMFBU6

Processor

Built-in processor: Yes
Processor model: LSISAS3316

Technical details

Launch date: Q4'16
PCI Express host interface: PCIe x8 Gen3
Product type: RAID
RAID connector orientation: Vertical
RAID keying: SIOM
Status: Launched
Last change: 63903513
Expected discontinuance date: Q2'23
Extended warranty available for purchase (select countries): Yes
Last order date: 2019-08-03 05:00:37
Target market: Mainstream

System requirements

Windows operating systems supported: Yes
Linux operating systems supported: Yes
Compatible operating systems: Windows, Linux, VMware

Weight & dimensions

Packaging content: (1) Intel Integrated RAID Module RMS3AC160, (4) standoffs, and (4) standoff locking pins

Logistics data

Harmonized System (HS) code: 8471801000

Other features

Intel long life: Yes
Internal ports: 16
Other features: Support for optional Maintenance Free Backup Unit and Premium Feature upgrade keys.
Supported devices: SAS/SATA
Market segment: Server
RAID ARK ID: 91066
Additional features: Support for optional Maintenance Free Backup Unit and Premium Feature upgrade keys.
