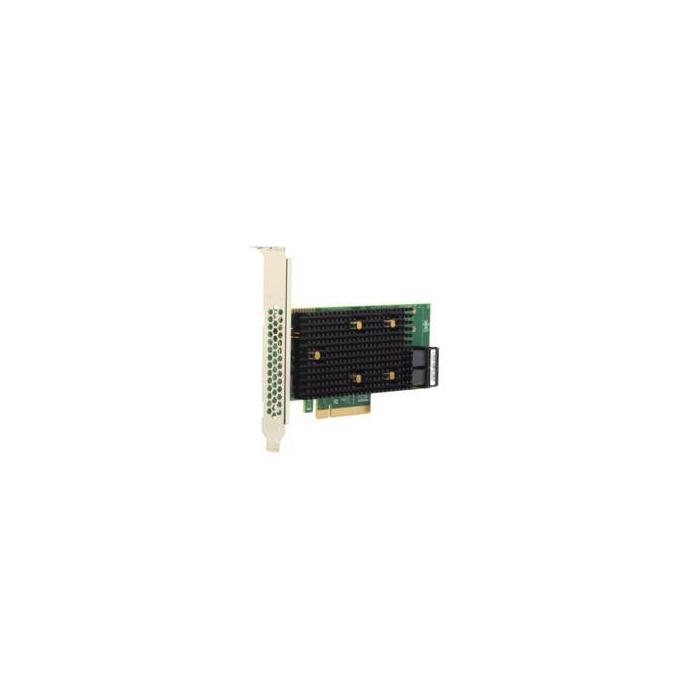

Broadcom MegaRAID 9440-8i RAID controller PCI Express x8 3.1 12 Gbit/s

Product 1 image

Broadcom MegaRAID 9440-8i RAID controller PCI Express x8 3.1 12 Gbit/s

Not avaliable

Amount

Brand: BROADCOM

SKU: 79921 PRC: 188026 EAN: 830343003648 PN: 05-50008-02

Description

Specifications

Ports & interfaces

Supported storage drive interfaces: SAS, Serial ATA
Host interface: PCI Express x8
PCI Express slots version: 3.1
Internal mini-SAS ports: 2

Performance

RAID levels: 0, 1, 5, 6, 10, 50, 60
RAID Level Migration: Yes
Data transfer rate: 12 Gbit/s
Form factor: Low Profile MD2 Card
SSD support: Yes
S.M.A.R.T. support: Yes
Number of devices supported: 63
Online Capacity Expansion: Yes
Mean time between failures (MTBF): 3000000 h
Certification: AS/NZS CISPR 22, ICES -003, Class B, EN55022/EN55024, VCCI V-3, RRA no 2013-24 & 25, RoHS, EN/IEC/UL 60950, CNS 13438, USA (FCC

Power

Voltage: 3.3, 12 V

System requirements

Windows operating systems supported: Yes

Operational conditions

Operating temperature (T-T): 10 - 55 °C
Storage temperature (T-T): -45 - 105 °C
Operating relative humidity (H-H): 20 - 80%
Storage relative humidity (H-H): 5 - 95%

Weight & dimensions

Width: 155.7 mm
Depth: 68.9 mm

Logistics data

Harmonized System (HS) code: 84733080

Other features

Connector(s): 2 x Mini-SAS HD x4 SFF-8643
Ports quantity: 8
