Description

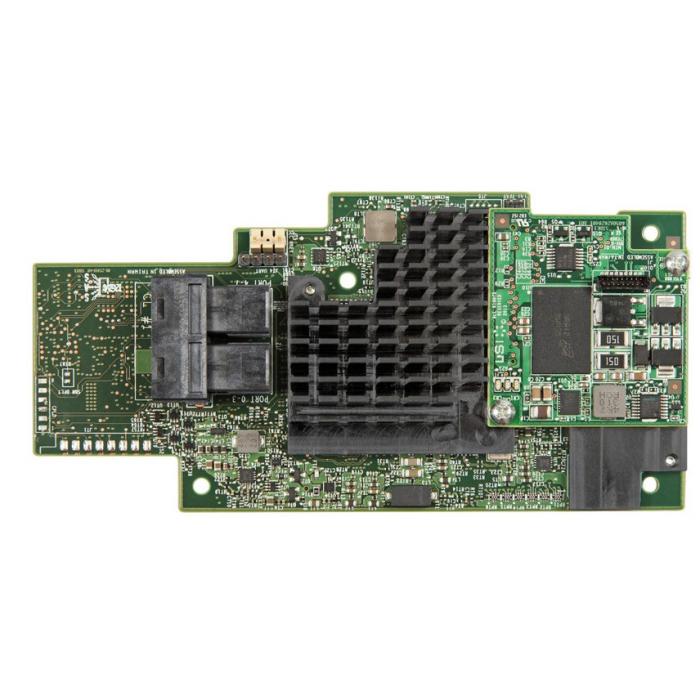

Intel RMS3CC040 RAID controller for servers, with PCI Express x8 host interface and version 3.0, integrating the LSISAS3108 processor to manage up to 128 SAS or SATA devices. This module in Storage Connector Module format offers four internal SAS ports and a native transfer speed of 12288 MB/s, with 1 GB DDR3 internal memory at 1866 MHz. Supports RAID levels 0, 1, 10, 5, 50, 6 and 60, and is compatible with the AXXRMFBU5 battery backup option. Designed to expand your server's storage capacity, its side connectors facilitate integration into the chassis.
Specifications
Ports & interfaces
- Supported storage drive interfaces: SAS, Serial ATA
- Host interface: PCI Express x8
- PCI Express slots version: 3.0
- Internal SAS ports: 4
Performance
- RAID levels: 0, 1, 10, 5, 50, 6, 60
- Form factor: Storage Connector Module
- Connector orientation: Side
- Internal memory: 1024 MB
- Internal memory type: DDR3
- Memory clock speed: 1866 MHz
- JBOD function: No
- Number of devices supported: 128
- Sustained data transfer rate (native): 12288 MB/s
- Export Control Classification Number (ECCN): 4A994B
- Commodity Classification Automated Tracking System (CCATS): NA
- Compatible battery backup options: AXXRMFBU5
- Compatible products: Intel Server System R1208WT2GS Intel Server System R1208WTTGS Intel Server System R1304WT2GS Intel Server System R1304WTTGS
Processor
- Built-in processor: SAS3108
- Processor family: LSI
- Processor model: LSISAS3108
Technical details
- Data transfer rate: 12288 Mbit/s
- Born on date: Q3'14
- Launch date: Q3'14
- PCI Express host interface: PCIe x8 Gen3
- Product name: Intel Integrated RAID Module RMS3CC040
- Product type: RAID
- RAID connector orientation: Side
- RAID keying: SIOM
- Status: Launched
- Last change: 63903513
- Expected discontinuance date: Q2'23
- Extended warranty available for purchase (select countries): Yes
- Last order date: 2019-08-03 05:00:37
- Target market: Mainstream
System requirements
- Windows operating systems supported: Yes
- Linux operating systems supported: Yes
- Compatible operating systems: Windows, Linux, VMware
Operational conditions
- Operating temperature (T-T): 0 - 65 °C
Weight & dimensions
- Packaging content: (1) Intel Integrated RAID Module RMS3CC040, (4) standoffs, and (4) standoff locking pins
Logistics data
- Harmonized System (HS) code: 8471801000
Other features
- PCI Card form factor: Full-height (low-profile)
- Internal ports: 4
- Other features: Support for Premium Feature Options
- Supported devices: SAS/SATA
- Market segment: Server
- RAID ARK ID: 82030
- Additional features: Support for optional Maintenance Free Backup Unit and Premium Feature upgrade keys.
