Description

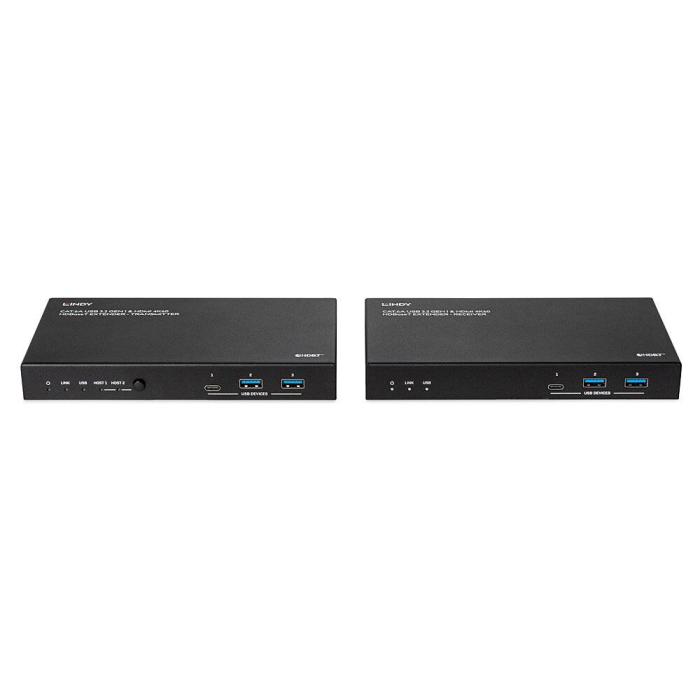

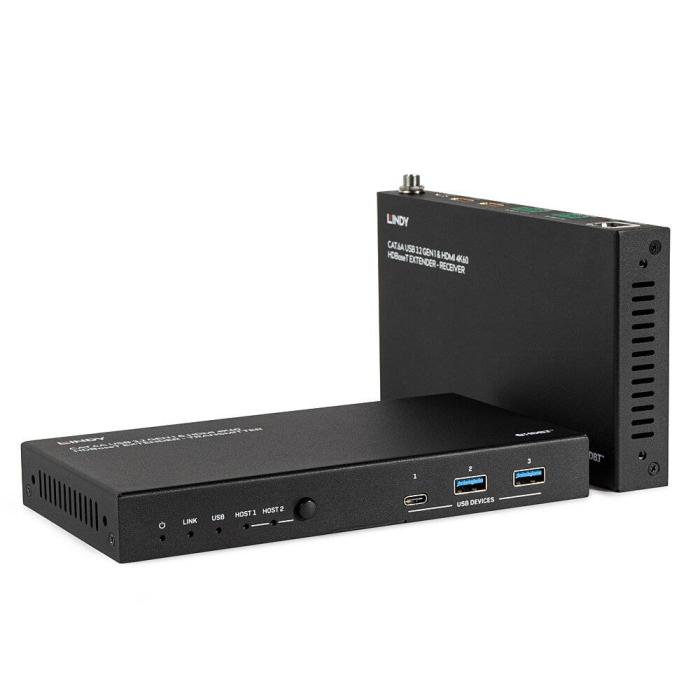

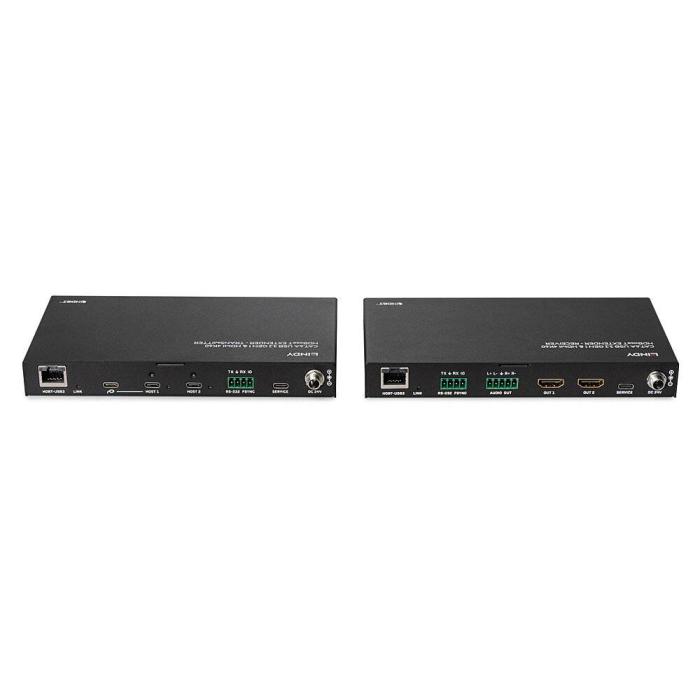

The Lindy 39365 is a network extender that functions as a network transmitter and receiver, in black, with dimensions of 180 x 23 x 95 mm and a weight of 1.58 kg. It reaches a data transfer speed of 480 Mbit/s and a maximum transfer distance of 100 m, making it suitable for carrying the USB signal to remote points within the same installation. It supports Cat6a cables and its chipset in the transmitter is the VS6320. It incorporates four USB Type-A USB 3.2 Gen 1 ports, four USB Type-C ports on the transmitter and two USB Type-C ports on the receiver. It also has two Ethernet LAN RJ-45 ports, one on the transmitter and one on the receiver, along with a DC input plug. Installation is plug-and-play, with no additional configuration required.
Specifications
Performance
- Type: Network transmitter & receiver
- Maximum transfer distance: 100 m
- Data transfer rate: 480 Mbit/s
- Cable types supported: Cat6a
- Chipset (transmitter): VS6320
- Plug and Play: Yes
Ports & interfaces
- Ethernet LAN (RJ-45) ports: 2
- RJ-45 ports quantity (transmitter): 1
- RJ-45 ports quantity (receiver): 1
- USB Type-C ports quantity (transmitter): 4
- USB Type-C ports quantity (receiver): 2
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
- DC-in jack: Yes
- Contact material: Phosphor bronze
- Connector contacts plating: Gold
- Connector material: Gold
Design
- Product colour: Black
- Housing material: Metal
- LED indicators: Yes
- Certification: CE, UKCA, FCC, RoHS & REACH, CP65
Power
- External power adapter: Yes
- Output voltage: 24 V
- Output current: 3.75 A
- Power over Ethernet (PoE): Yes
- Power note: 5.5/2.1mm DC
- Included power plug types: AU, EU, UK, US
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): -20 - 60 °C
- Operating relative humidity (H-H): 10 - 90%
- Storage relative humidity (H-H): 10 - 90%
Weight & dimensions
- Width: 180 mm
- Depth: 95 mm
- Height: 23 mm
- Weight: 1.58 kg
Packaging content
- Cables included: DC
- Manual: Yes
Packaging data
- Package type: Box
- Package width: 260 mm
- Package depth: 252 mm
- Package height: 85 mm
- Package volume: 1890 cm³
Certificates
- Compliance certificates: CE, Federal Communications Commission (FCC), REACH, RoHS, UKCA
Logistics data
- Harmonized System (HS) code: 85176990
