LevelOne AX1800 Dual Band Wi-Fi6 PoE Wireless Access Point

LevelOne AX1800 Dual Band Wi-Fi6 PoE Wireless Access Point

Name: LevelOne AX1800 Dual Band Wi-Fi6 PoE Wireless Access Point
Brand: LEVELONE
Price: 216 EUR
Availability: InStock

216.00 €

178.51 € without VAT

More info

Amount

Brand: LEVELONE

SKU: 119279 PRC: 465072 EAN: 4015867227879 PN: WAP-8131

Description

LevelOne AX1800 Dual Band Wi-Fi6 PoE Wireless Access Point, 2.4 GHz, 5 GHz, 1800 Mbit/s, AES, WPA, WPA2, WPA3

Specifications

Features

2.4 GHz: Yes
5 GHz: Yes
6 GHz: No
Maximum data transfer rate: 1800 Mbit/s
Maximum data transfer rate (2.4 GHz): 574 Mbit/s
Maximum data transfer rate (5 GHz): 1201 Mbit/s
Frequency band: 2.412 - 2.484, 5.18G -5.825
Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IE
Channels quantity: 165 channels
MIMO: Yes
MIMO type: Multi User MIMO
Spread spectrum method: OFDMA
Operating modes: Gateway, Repeater, AP

Security

Security algorithms: AES, WPA, WPA2, WPA3
Service Set Identifier (SSID) features: Multiple SSIDs
Number of SSID supported: 8

Management features

Web-based management: Yes

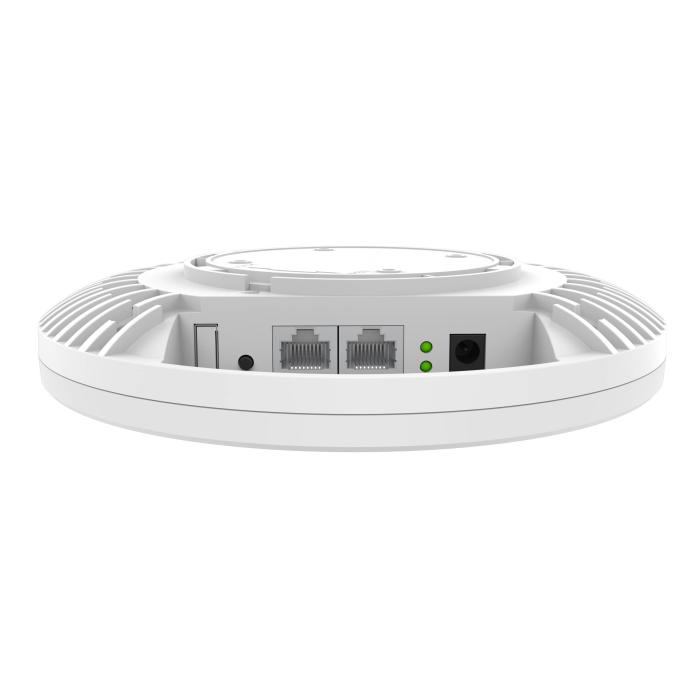

Ports & interfaces

Ethernet LAN (RJ-45) ports: 2
DC-in jack: Yes

Power

Power over Ethernet (PoE): Yes
Power consumption (max): 14 W

Design

Placement: Ceiling, Wall
Product colour: White
LED indicators: Status

Antenna

Antenna type: Internal
Antennas quantity: 4
Antenna gain level (max): 4 dBi

Performance

Chipset: Qualcomm IPQ6000
Flash memory: 128 MB
Internal memory: 512 MB

Technical details

Master (outer) cases per pallet (air): 10 pc(s)
Pallet net height: 164.4 cm
Pallet net length: 80 cm
Pallet net width: 120 cm

Certificates

Compliance certificates: CE, RoHS

Weight & dimensions

Width: 186 mm
Depth: 186 mm
Height: 42.5 mm
Weight: 418.5 g

Packaging data

Package width: 243 mm
Package depth: 235 mm
Package height: 76 mm
Package weight: 750 g

Packaging content

Cables included: LAN (RJ-45)
Quick start guide: Yes

Operational conditions

Operating relative humidity (H-H): 10 - 90%
Operating temperature (T-T): 0 - 55 °C
Storage temperature (T-T): 0 - 70 °C
Storage relative humidity (H-H): 5 - 90%

Sustainability

Sustainability compliance: Yes

Logistics data

Country of origin: China
Master (outer) case width: 410 mm
Master (outer) case length: 520 mm
Master (outer) case height: 500 mm
Master (outer) case gross weight: 16 kg
Products per master (outer) case: 20 pc(s)
