LevelOne AC1200 Dual Band PoE Wireless Access Point, Ceiling Mount, Controller Managed

$137.11
$137.11 without VAT

LevelOne AC1200 Dual Band PoE Wireless Access Point, Ceiling Mount, Controller Managed.   More info

Brand: LEVELONE
SKU: 87454 PRC: 313337 EAN: 4015867206652 PN: WAP-8123

Description

Specifications

Features

  • 2.4 GHz: Yes
  • 5 GHz: Yes
  • Maximum data transfer rate: 1200 Mbit/s
  • Maximum data transfer rate (2.4 GHz): 300 Mbit/s
  • Maximum data transfer rate (5 GHz): 867 Mbit/s
  • Ethernet LAN data rates: 10, 100, 1000 Mbit/s
  • Frequency band: 2.4 ~ 2.4835, 5.15 ~ 5.35, 5.46 ~ 5.72, 5.725~ 5.825 GHz
  • Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11e, IEEE 802.11g, IEEE 802.11i, IEEE 802.11n, IEEE 802.3, IEEE 802.3at, IEE
  • Number of users: 128 user(s)
  • Automatic channel selection: Yes
  • MIMO: Yes
  • MIMO type: Multi User MIMO
  • Modulation: 16-QAM, 64-QAM, 128-QAM, 256-QAM, BPSK, CCK, DBPSK, DQPSK, DSSS, OFDM, QPSK
  • Wi-Fi Multimedia (WMM)/(WME): Yes
  • Virtual LAN features: Tagged VLAN
  • Operating modes: Access Point (AP),Gateway,Repeater,WISP
  • Quality of Service (QoS) support: Yes

Security

  • Security algorithms: 64-bit WEP, 128-bit AES, 128-bit WEP, TKIP, WPA, WPA2, WPA2-PSK
  • Service Set Identifier (SSID) features: SSID broadcast on/off
  • Number of SSID supported: 8

Management features

  • Web-based management: Yes
  • Switch type: Managed
  • Firmware upgradeable: Yes

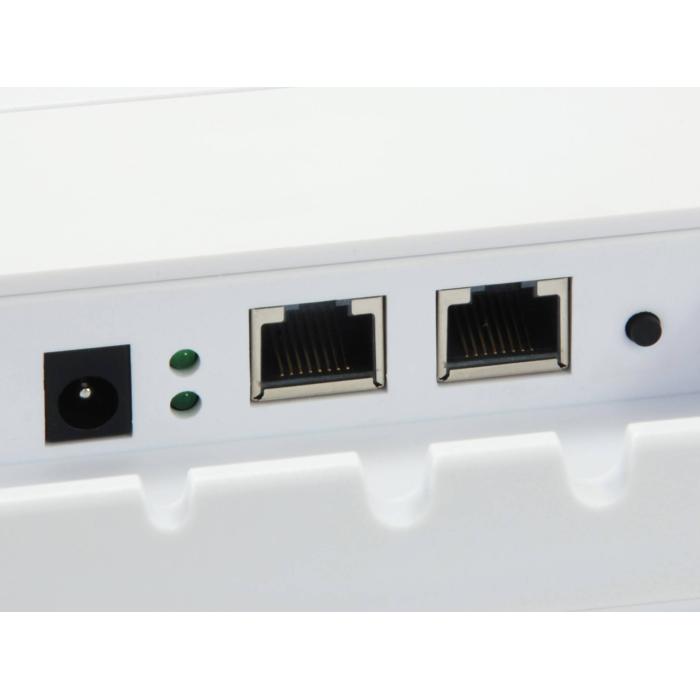

Ports & interfaces

  • Ethernet LAN (RJ-45) ports: 1
  • WAN connection: Ethernet (RJ-45)
  • DC-in jack: Yes

Power

  • Power over Ethernet (PoE): Yes
  • Power consumption (typical): 30 W

Design

  • Placement: Ceiling
  • Product colour: White
  • Reset button: Yes

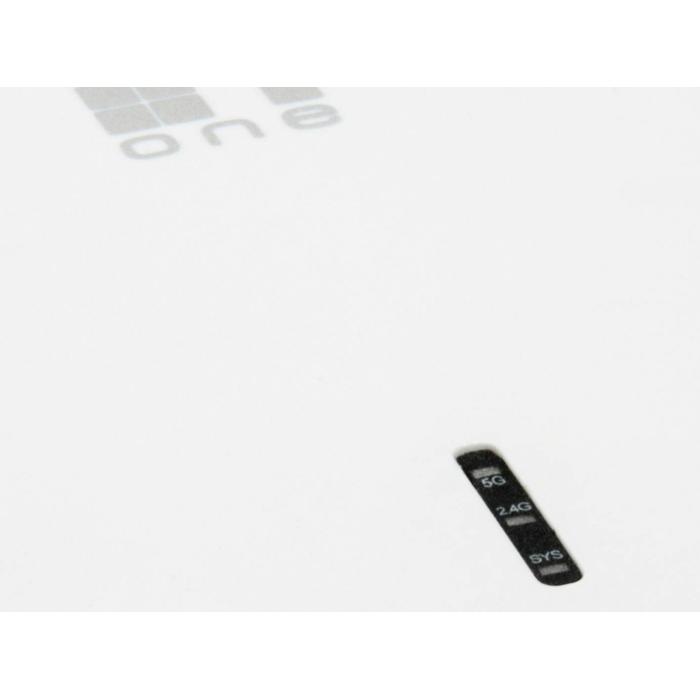

  • LED indicators: Power, Status
  • Internal: No

Antenna

  • Antenna features: Integrated antenna
  • Antennas quantity: 4
  • Antenna gain level (max): 5 dBi

Certificates

  • Certification: CE, FCC

Weight & dimensions

  • Width: 198 mm
  • Depth: 28 mm
  • Height: 198 mm
  • Weight: 520 g

Packaging data

  • CD manual: Yes
  • CD quick installation guide: Yes
  • Package width: 235 mm
  • Package depth: 81 mm
  • Package height: 243 mm
  • Package weight: 830 g
  • Package type: Box

Packaging content

  • Cables included: LAN (RJ-45)
  • Mounting kit: Yes
  • Quick start guide: Yes

Operational conditions

  • Operating relative humidity (H-H): 10 - 90%
  • Operating temperature (T-T): -30 - 55 °C
  • Storage temperature (T-T): -40 - 70 °C
  • Storage relative humidity (H-H): 5 - 95%

Logistics data

  • Harmonized System (HS) code: 85176990
  • Country of origin: China
  • Master (outer) case width: 435 mm
  • Master (outer) case length: 491 mm
  • Master (outer) case height: 515 mm
  • Master (outer) case gross weight: 18 kg
  • Products per master (outer) case: 20 pc(s)
