Description

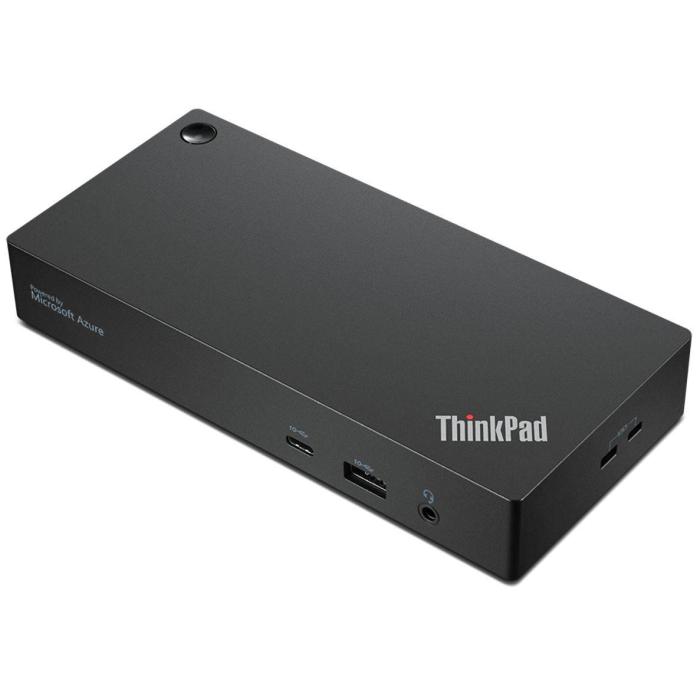

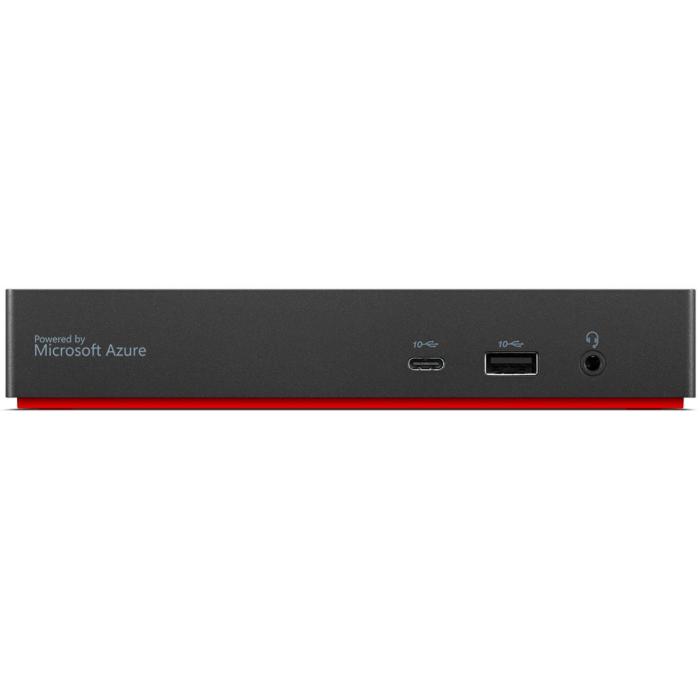

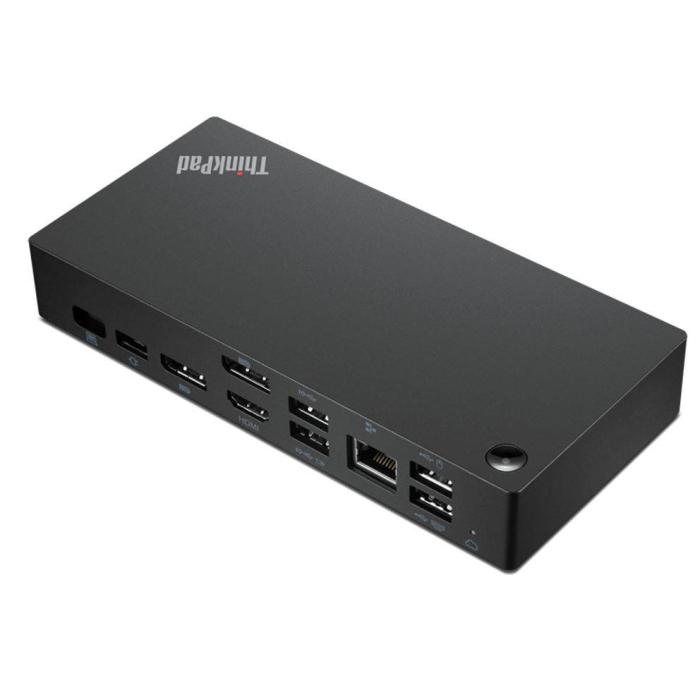

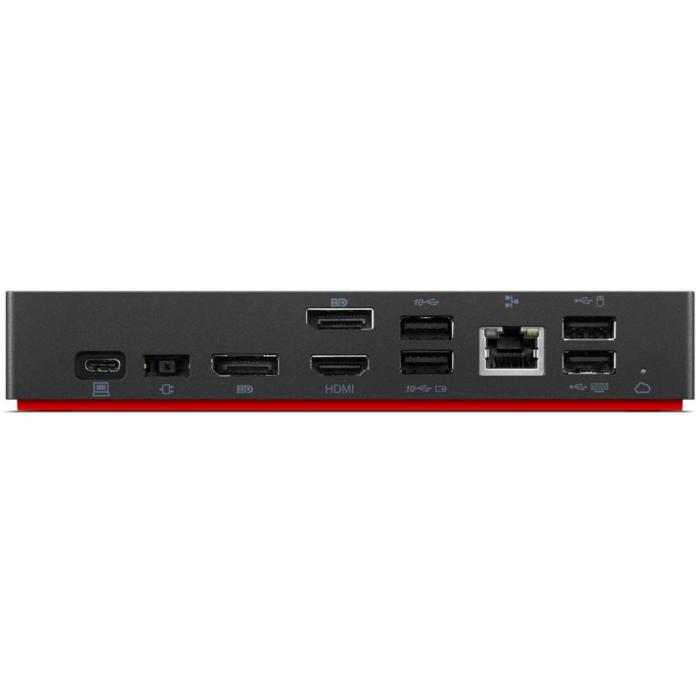

Connect your laptop to everything you need with the Lenovo ThinkPad Universal Thunderbolt 4 Smart Dock, a wired dock in black that relies on the Thunderbolt 4 interface to deliver a data transfer speed of 40 Gbit/s. It features four USB Type-A USB 3.2 Gen 1 ports, one USB Type-C USB 3.2 Gen 1 port and one Thunderbolt 4 port, plus one HDMI 2.1 output and two DisplayPort 1.4 outputs to handle up to four displays with a maximum refresh rate of 60 Hz. It adds an Ethernet LAN connection with an RJ-45 port, a DC-in power connector and a 3.5 mm combo headphone and microphone connector. All of this in a compact format measuring 220 x 30 x 80 mm, width, height and depth, and weighing 460 g, designed to set up a complete workstation without relying on the device's own ports.
Specifications
Ports & interfaces
- Connectivity technology: Wired
- Host interface: Thunderbolt 4
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
- USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1
- HDMI ports quantity: 1
- HDMI version: 2.1
- DisplayPorts quantity: 2
- DisplayPort version: 1.4
- Thunderbolt 4 ports quantity: 1
- Combo headphone/mic port: Yes
- Headphone connectivity: 3.5 mm
- DC-in jack: Yes
Network
- Ethernet LAN: Yes
- Ethernet LAN (RJ-45) ports: 1
Performance
- Data transfer rate: 40 Gbit/s
- Number of displays supported: 4
- Maximum refresh rate: 60 Hz
- Product colour: Black
- Certification: cULus, FCC, ICES, NOM
Power
- Power source type: DC
- Input current: 6.75 A
- Power consumption (max): 100 W
Software
- Windows operating systems supported: Yes
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Operating relative humidity (H-H): 5 - 95%
Weight & dimensions
- Width: 220 mm
- Depth: 80 mm
- Height: 30 mm
- Weight: 460 g
Packaging data
- Package width: 270 mm
- Package depth: 195 mm
- Package height: 85 mm
- Package weight: 1.23 kg

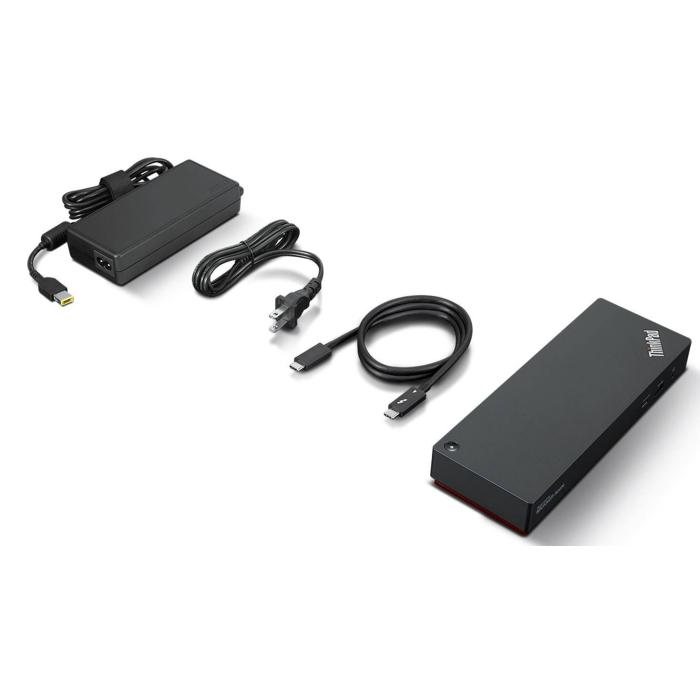

Packaging content
- Cables included: AC, Thunderbolt
- AC adapter included: Yes
Logistics data
- Harmonized System (HS) code: 84733020
