Description

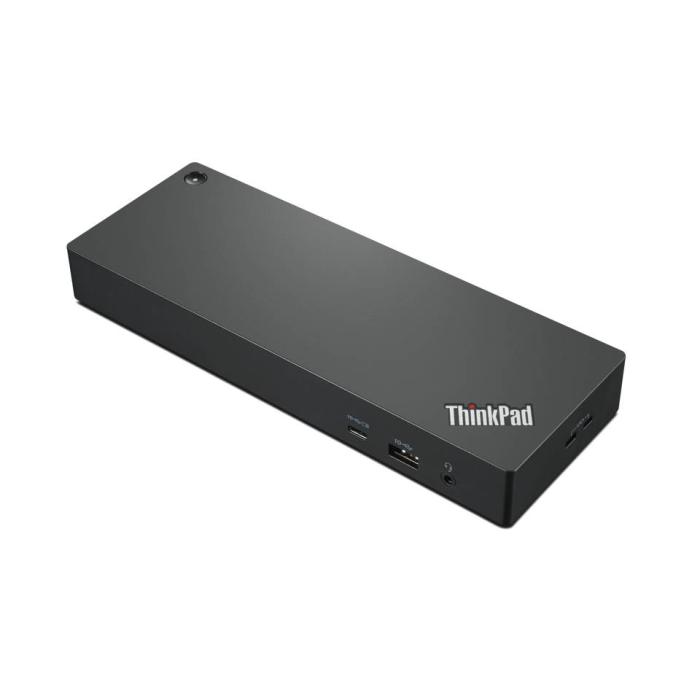

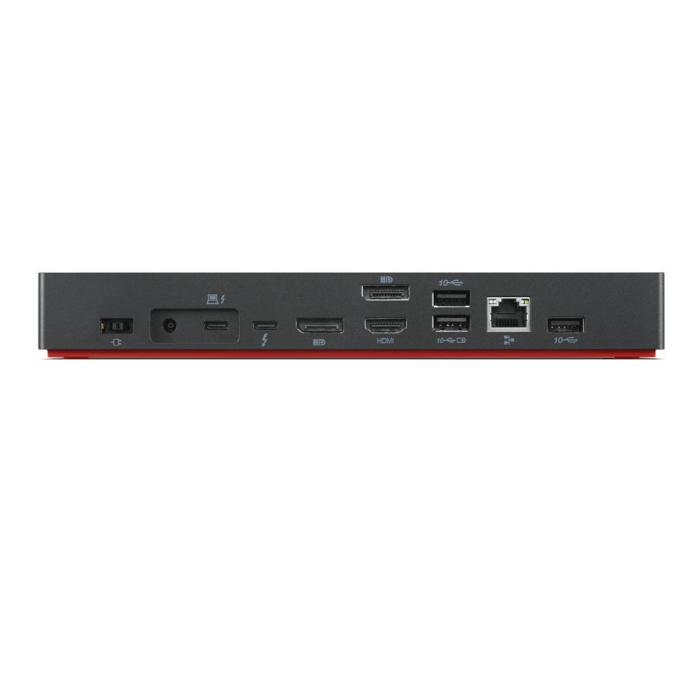

The Lenovo 40B00300EU port replicator, in black and red, expands your laptop's connectivity via a Thunderbolt 4 host interface and wired connection. It includes one Thunderbolt 4 port, four USB Type-A 3.2 Gen 2 ports, one USB Type-C 3.2 Gen 1 port and a combined headphone and microphone output. For video, it offers two DisplayPort 1.4 ports and one HDMI 2.1 port, so you can connect several displays at once. Its Ethernet LAN with an RJ-45 port reaches transfer speeds of 10, 100 and 1000 Mbit/s. USB Power Delivery reaches up to 230 W and the DC-in power connector lets you power the device while you work. It features a security cable slot, with dimensions of 220 x 30 x 80 mm (width x height x depth) and a weight of 450 g.
Specifications
Ports & interfaces
- Connectivity technology: Wired
- Host interface: Thunderbolt 4
- USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 4
- USB Power Delivery (USB PD): Yes
- USB Power Delivery up to: 230 W
- HDMI ports quantity: 1
- HDMI version: 2.1
- DisplayPorts quantity: 2
- DisplayPort version: 1.4
- Thunderbolt 4 ports quantity: 1
- Microphone in: No
- Combo headphone/mic port: Yes
- DC-in jack: Yes
Network
- Ethernet LAN: Yes
- Ethernet LAN (RJ-45) ports: 1
- Ethernet LAN data rates: 10, 100, 1000 Mbit/s
Performance
- Card reader integrated: No
- Data transfer rate: 40 Gbit/s
- HD type: 8K Ultra HD
- Maximum digital resolution: 7680 x 4320 pixels
- Number of displays supported: 4
- Maximum refresh rate: 30 Hz
- Cable lock slot: Yes
- Cable lock slot type: Kensington
- VESA mounting: Yes
- Product colour: Black, Red
- LED indicators: Yes
- Certification: cULus, FCC, ICES, NOM
Audio
- Built-in speaker(s): No
Power
- Power supply: 300 W
- Output voltage: 20 V
- Output current: 15 A
- Power consumption (max): 230 W
Software
- Windows operating systems supported: Windows 10
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Operating relative humidity (H-H): 5 - 95%
Weight & dimensions
- Width: 220 mm
- Depth: 80 mm
- Height: 30 mm
- Weight: 450 g
Packaging data
- Quantity per pack: 1 pc(s)
- Package width: 270 mm
- Package depth: 195 mm
- Package height: 85 mm
- Package weight: 1.9 kg
Packaging content
- Warranty card: Yes
- Cables included: AC
- AC adapter included: Yes
Logistics data
- Harmonized System (HS) code: 84733020
