Description

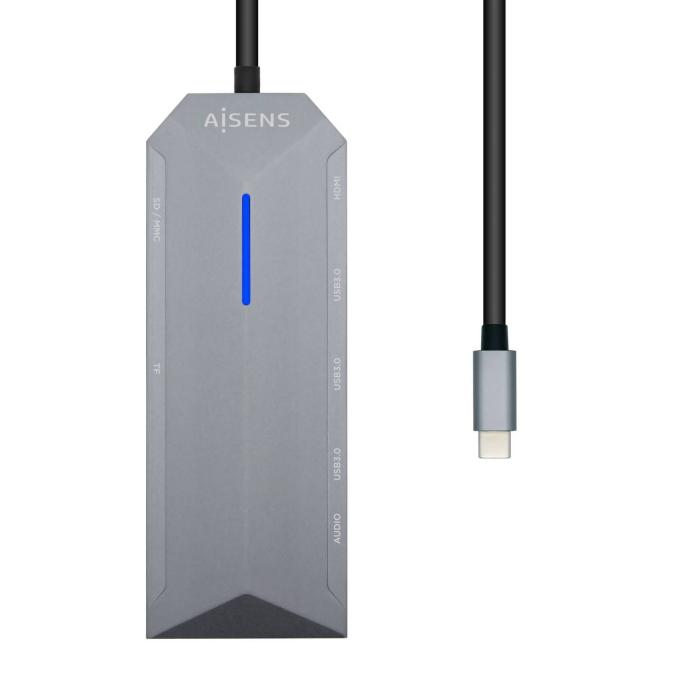

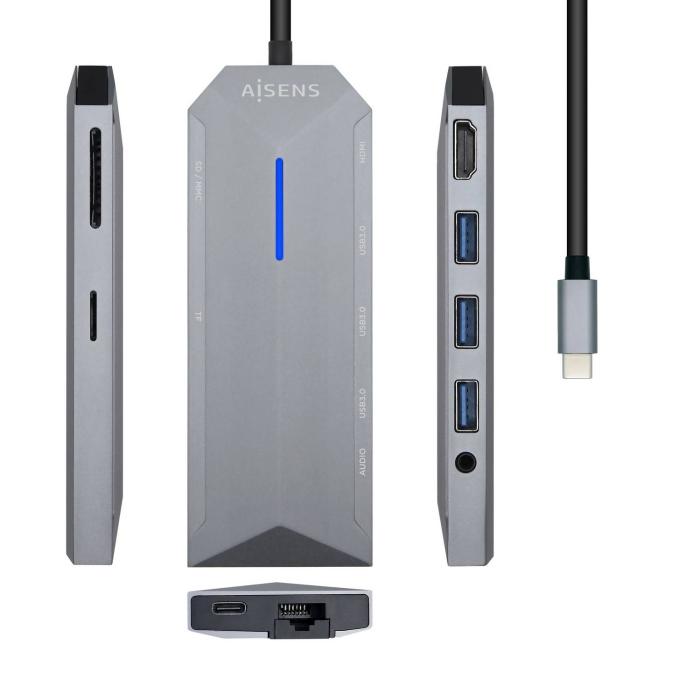

Connect your laptop to everything you need with the AISENS USB-C dock, a grey accessory that expands your device's connectivity via a 15 cm cable. Its Thunderbolt 3 host interface provides access to an HDMI port with maximum digital resolution of 3840 x 2160 pixels, HDCP compatible, plus an RJ-45 Ethernet port with speeds of 10, 100 and 1000 Mbit/s. It features three USB Type-A 3.2 Gen 1 ports and one USB Type-C port, along with an audio connection combining headphone output and microphone input. The USB power delivery function supports USB Power Delivery up to 100 W. It also includes a card reader for SD and Micro SD formats. With this dock, you can work with an external monitor, wired network and peripherals at the same time from a single point.
Specifications
Ports & interfaces
- Connectivity technology: Wired
- Host interface: Thunderbolt 3
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3
- USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1
- USB Power Delivery (USB PD): Yes
- USB Power Delivery up to: 100 W

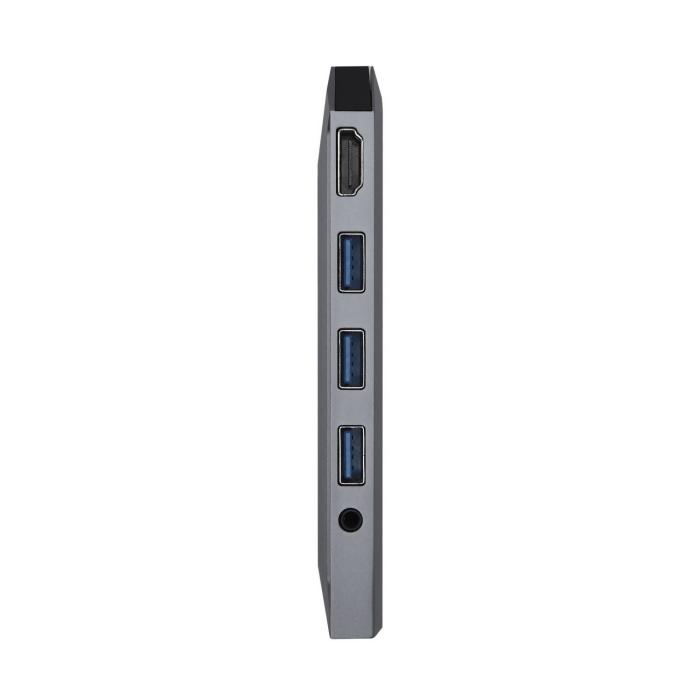

- HDMI ports quantity: 1
- Microphone in: Yes
- Combo headphone/mic port: Yes
- Headphone outputs: 1
- HDCP: Yes
Network
- Ethernet LAN: Yes

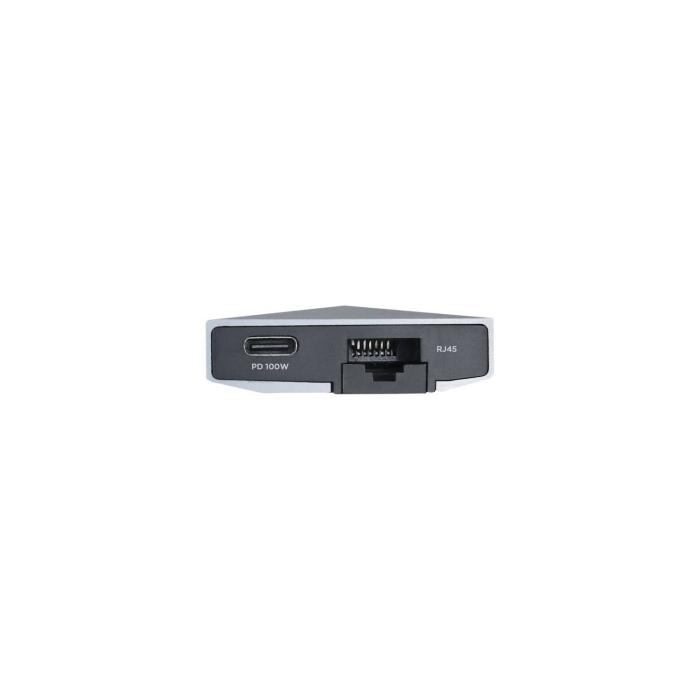

- Ethernet LAN (RJ-45) ports: 1
- Ethernet LAN data rates: 10, 100, 1000 Mbit/s
- Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
Performance

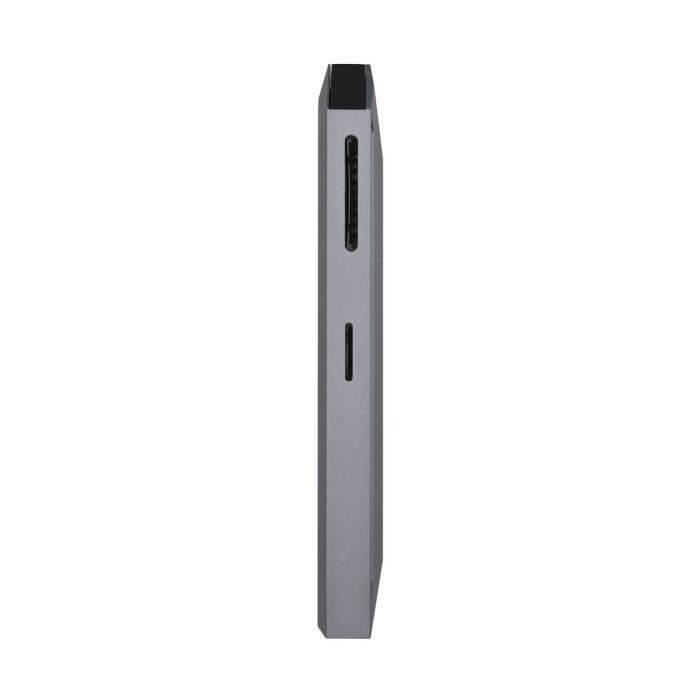

- Card reader integrated: Yes
- Compatible memory cards: MMC, Memory Stick (MS), MicroSDHC, MicroSDXC, RS-MMC, SD, SDHC, SDXC
- Data transfer rate: 5 Gbit/s
- Maximum digital resolution: 3840 x 2160 pixels
- Product colour: Grey
Power
- Power cable length: 0.15 m
Packaging data
- Quantity per pack: 1 pc(s)
- Package width: 173 mm
- Package depth: 103 mm
- Package height: 20 mm
- Package weight: 188 g
Packaging content
- Manual: Yes
Technical details
- Package volume: 356.38 cm³
- Master (outer) case volume: 20718.72 cm³
- Compliance certificates: CE, RoHS
Logistics data
- Products per master (outer) case: 40 pc(s)
- Master (outer) case width: 220 mm
- Master (outer) case length: 432 mm
- Master (outer) case height: 218 mm
- Master (outer) case gross weight: 7.52 kg
