Description

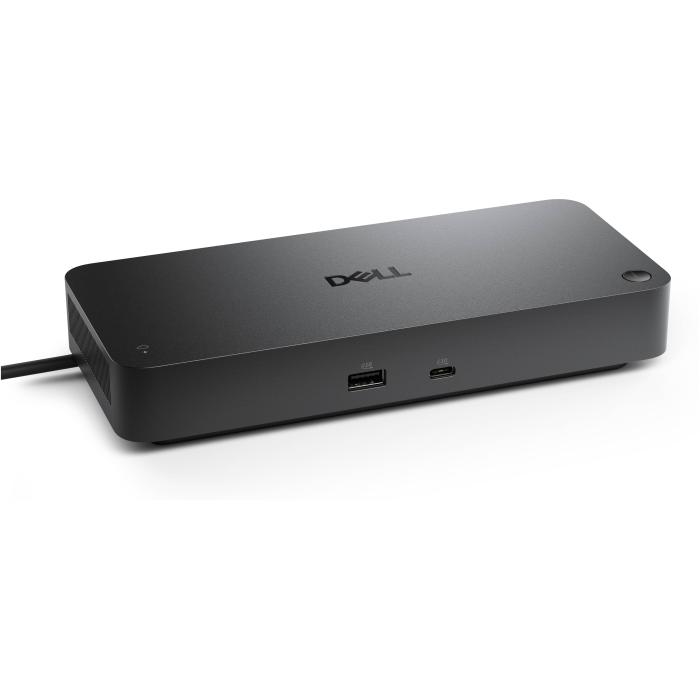

The DELL SD25TB5 is a black Thunderbolt 5 dock that connects your laptop to a whole workstation. Its Thunderbolt 5 host interface relies on two Thunderbolt 5 ports to link high-speed peripherals. It adds four USB Type-A USB 3.2 Gen 2 ports, one USB Type-C USB 3.2 Gen 2 port and another USB Type-C USB 3.2 Gen 1 port to complete the connections. It features two DisplayPort 2.1 and one HDMI 2.1, with support for USB Type-C DisplayPort Alternate Mode, so you can set up several screens at once. It includes an RJ-45 Ethernet port with a data transfer rate of 2500 Mbit/s for a stable wired network. It offers USB Power Delivery of up to 15 W and a direct current input plug. With dimensions of 90 x 205 x 35.3 mm and a weight of 632 g, it sits on the desk taking up hardly any space.
Specifications
Ports & interfaces
- Connectivity technology: Wired
- Host interface: Thunderbolt 5
- USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 4
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
- USB Power Delivery up to: 15 W
- HDMI ports quantity: 1
- HDMI version: 2.1
- DisplayPorts quantity: 2
- DisplayPort version: 2.1
- Thunderbolt 5 ports quantity: 2
- Microphone in: No
- DC-in jack: Yes
- USB Type-C DisplayPort Alternate Mode: Yes
Network
- Ethernet LAN: Yes
- Ethernet LAN (RJ-45) ports: 1
- Ethernet LAN data rates: 2500 Mbit/s
- Wake-on-LAN ready: Yes
Performance
- Card reader integrated: No
- Number of storage drives supported: 4
- Data transfer rate: 1.25 Gbit/s
- Maximum digital resolution: 3840 x 2160 pixels
- Maximum refresh rate: 120 Hz
- Cable lock slot: Yes
- Cable lock slot type: Kensington, Noble
- Product colour: Black
- LED indicators: Power
Power
- Power supply: 330 W
Software
- Windows operating systems supported: Windows 10, Windows 11
- Linux operating systems supported: Yes
- Mobile operating systems supported: Yes
- Other operating systems supported: ChromeOS
Weight & dimensions
- Width: 90 mm
- Depth: 35.3 mm
- Height: 205 mm
- Weight: 632 g
Packaging data
- Quantity per pack: 1 pc(s)
Packaging content
- Cables included: AC
- AC adapter included: Yes
- Quick start guide: Yes
Similar products
Few units left

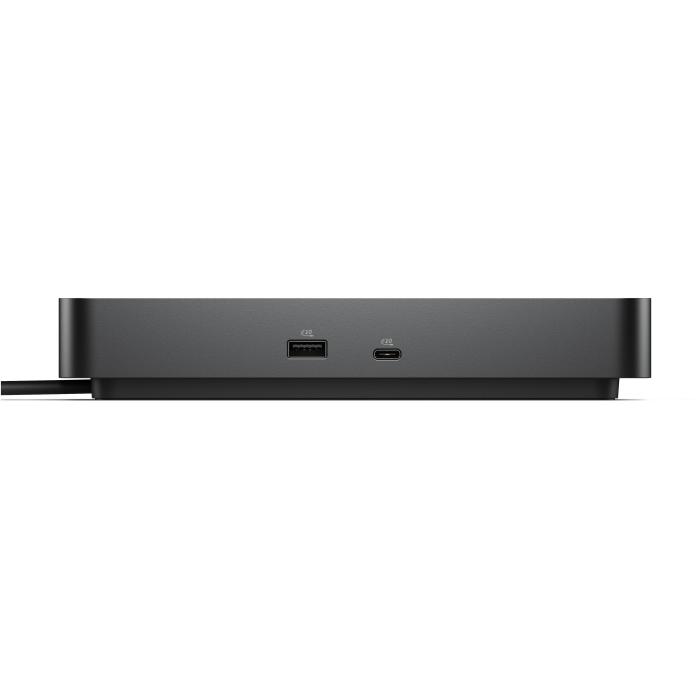

DELL Pro Thunderbolt 4 SD25TB4 Wired Black
342.02 €
Get it
on the
October 16
/
on the
October 19

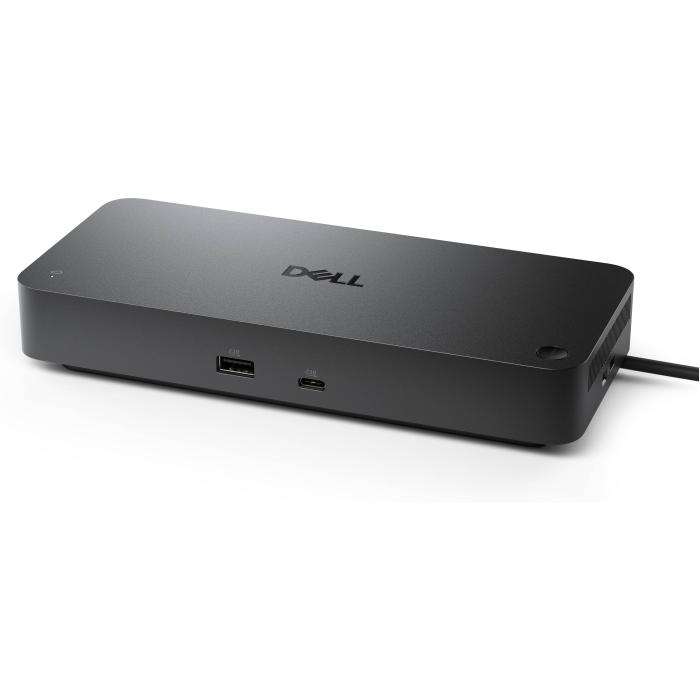

DELL DELL-WD25TB4 laptop dock/port replicator Wired Thunderbolt 4 Black
284.20 €
Get it
on the
October 16
/
on the
October 19

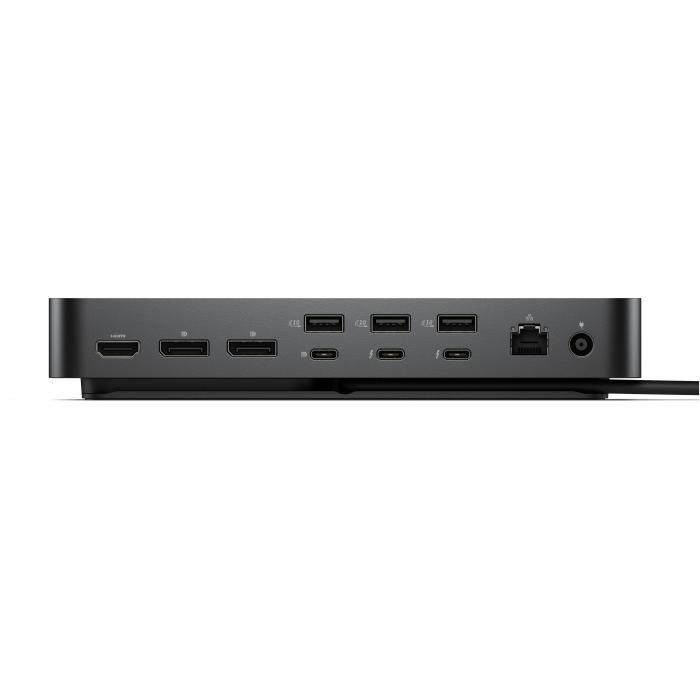

DELL Pro SD25 Wired USB 3.2 Gen 2 (3.1 Gen 2) Type-C Black
