Intel RSP3TD160F RAID controller PCI Express x8 3.0

Return

Few units

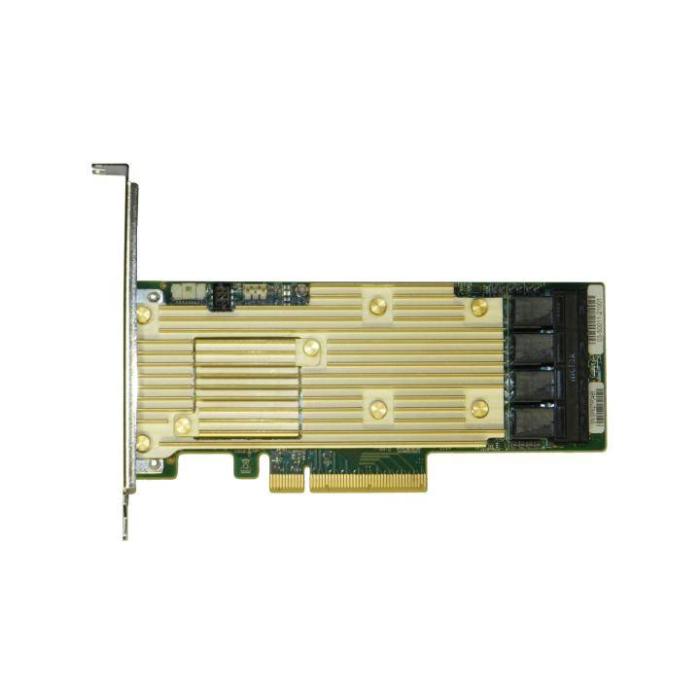

Product 1 image

Intel RSP3TD160F RAID controller PCI Express x8 3.0

$900.76

$900.76 without VAT

Amount

Brand: INTEL

SKU: 96060 PRC: 392531 EAN: 5032037095280 PN: RSP3TD160F

Description

Specifications

Ports & interfaces

Supported storage drive interfaces: PCI Express, SAS, Serial ATA
Host interface: PCI Express x8
PCI Express slots version: 3.0
Internal mini-SAS ports: 4

Performance

RAID levels: 0, 1, 10, 5, 50, 6, 60
Form factor: Low-Profile MD2 PCIe AIC
Internal memory: 4096 MB
Internal memory type: DDR4
Memory clock speed: 2133 MHz
Chipset: SAS3516
JBOD function: Yes
S.M.A.R.T. support: Yes
Number of devices supported: 240
Online Capacity Expansion: Yes
Export Control Classification Number (ECCN): 4A994B
Commodity Classification Automated Tracking System (CCATS): NA
Compatible battery backup options: AXXRMFBU7

Processor

Built-in processor: Yes
Processor model: LSISAS3516

Technical details

Launch date: Q3'17
PCI Express host interface: PCIe x8 Gen3
Product type: RAID
RAID connector orientation: Vertical
RAID keying: PCIe x8
Status: Launched
Last change: 63903513
Expected discontinuance date: Q2'23
Extended warranty available for purchase (select countries): Yes
Last order date: 2019-08-03 05:00:37
Target market: Full-featured

System requirements

Windows operating systems supported: Yes
Linux operating systems supported: Yes
Compatible operating systems: Windows, Linux, VMWare

Weight & dimensions

Packaging content: (1) Intel RAID Adapter, (1) low-profile mounting bracket

Logistics data

Harmonized System (HS) code: 8471801000

Other features

PCI Card form factor: Half-height (low-profile)
Internal ports: 16
Other features: Support for optional Maintenance Free Backup Unit and Premium Feature upgrade keys.
Supported devices: PCIe/SAS/SATA
Market segment: Server
RAID ARK ID: 99500
Additional features: Support for optional Maintenance Free Backup Unit and Premium Feature upgrade keys.
Product series: Intel® RAID Controllers
