Description

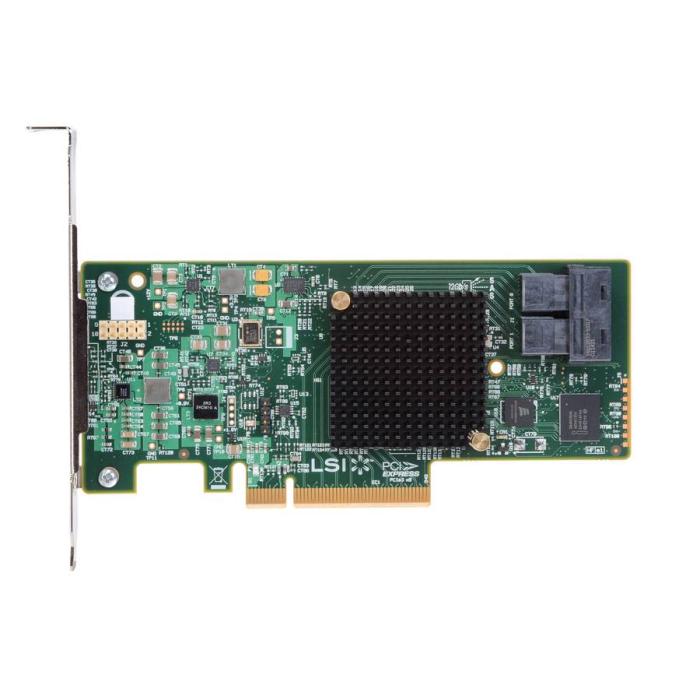

Intel RS3WC080 RAID controller card with PCI Express x8 3.0 interface and sustained transfer rate of 12288 MB/s, designed for servers requiring advanced storage management. Supports SAS and SATA drives, with the ability to manage up to 128 devices, including SSD units, and offers RAID levels 0, 1, 10, 5, and 50 for configuration flexibility. Its Low Profile MD2 Card form factor facilitates installation in compact chassis, while the side connector optimises cabling. Includes JBOD function for direct use of drives without RAID. Based on the LSI3008 chipset, it provides a reliable solution for professional environments.
Specifications
Ports & interfaces
- Supported storage drive interfaces: SAS, Serial ATA
- Host interface: PCI Express x8
- PCI Express slots version: 3.0
Performance
- RAID levels: 0, 1, 10, 5, 50
- Form factor: Low Profile MD2 Card
- Connector orientation: Side
- SSD support: Yes
- Chipset: LSI3008
- JBOD function: Yes
- Number of devices supported: 128
- Sustained data transfer rate (native): 12288 MB/s
- Export Control Classification Number (ECCN): 5A992C
- Commodity Classification Automated Tracking System (CCATS): G134612
Processor
- Processor model: LSISAS3008
Technical details
- Data transfer rate: 12288 Mbit/s
- Born on date: Q3'13
- Launch date: Q3'13
- PCI Express host interface: PCIe x8 Gen3
- Product name: Intel RAID Controller RS3WC080
- Product type: RAID
- RAID connector orientation: Side
- Status: Launched
- Last change: 63903513
- Expected discontinuance date: Q2'23
- Extended warranty available for purchase (select countries): Yes
- Last order date: 2019-08-03 05:00:37
- Target market: Entry
System requirements
- Windows operating systems supported: Yes
- Mac operating systems supported: No
- Linux operating systems supported: Yes
Weight & dimensions
- Packaging content: One RAID adapter with full and low profile brackets
Logistics data
- Harmonized System (HS) code: 8471801000
Other features
- PCI Card form factor: Half-height (low-profile)
- Internal ports: 8
- Supported devices: SAS/SATA
- Market segment: Server
- RAID ARK ID: 77345
- Product series: Intel® RAID Controllers
