GIGABYTE P650SS ICE Power Supply - PCIe 5.0, 80 PLUS Silver, 120mm Fan, ATX 3.0 compatible, EU Plug

Name: GIGABYTE P650SS ICE Power Supply - PCIe 5.0, 80 PLUS Silver, 120mm Fan, ATX 3.0 compatible, EU Plug
Brand: GIGABYTE
Price: 43.8 USD
Availability: InStock

$43.80

$43.80 without VAT

More info

Amount

Brand: GIGABYTE

SKU: 110921 PRC: 589396 EAN: 4719331554927 PN: GP-P650SS ICE

Description

GIGABYTE P650SS ICE Power Supply - PCIe 5.0, 80 PLUS Silver, 120mm Fan, ATX 3.0 compatible, EU Plug, 650 W, 155-240 V, 50/60 Hz, 6.3 A, Active, 100 W

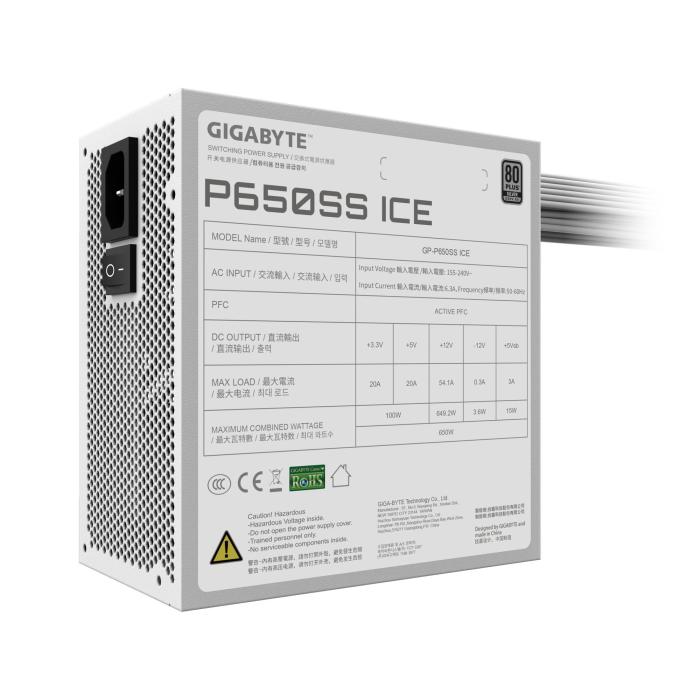

Specifications

Power

Total power: 650 W
AC input voltage: 155-240 V
AC input frequency: 50/60 Hz
Input current: 6.3 A
Power factor: 0.9
Power Factor Correction (PFC) type: Active
Combined power (+3.3V): 100 W
Combined power (+12V): 649.2 W
Combined power (+5V): 100 W
Combined power (-12V): 3.6 W
Combined power (+5Vsb): 15 W
Max output current (+3.3V): 20 A
Max output current (+12V): 54.1 A
Max output current (+5V): 20 A
Max output current (-12V): 0.3 A
Max output current (+5Vsb): 3 A
Power Good signal delay range: 100 - 150 ms
Power protection features: Over power, Overcharge, Short circuit, Under voltage

Ports & interfaces

Motherboard power connector: 20+4 pin ATX
Motherboard power cable length: 60 cm
Number of SATA power connectors: 5
SATA power cable length: 120, 500 mm
Peripheral (Molex) power connectors (4-pin): 2
Peripheral (Molex) power cable length: 120, 500 mm
PCI Express power connectors (6+2 pin): 2
PCI Express power cable length: 65 cm
CPU P4 connector (4-pin): 1
CPU power connector (4+4 pin): Yes
CPU power cable length: 60 cm
ATX power connector (20+4 pin): Yes
Floppy disk drive connector: Yes
Cabling type: Non-Modular

Performance

80 PLUS certification: 80 PLUS Silver
Purpose: PC
Power supply unit (PSU) form factor: ATX
ATX version: 3.0
Bearing technology: FDB
Mean time between failures (MTBF): 100000 h

Design

Product colour: White
Cooling type: Active

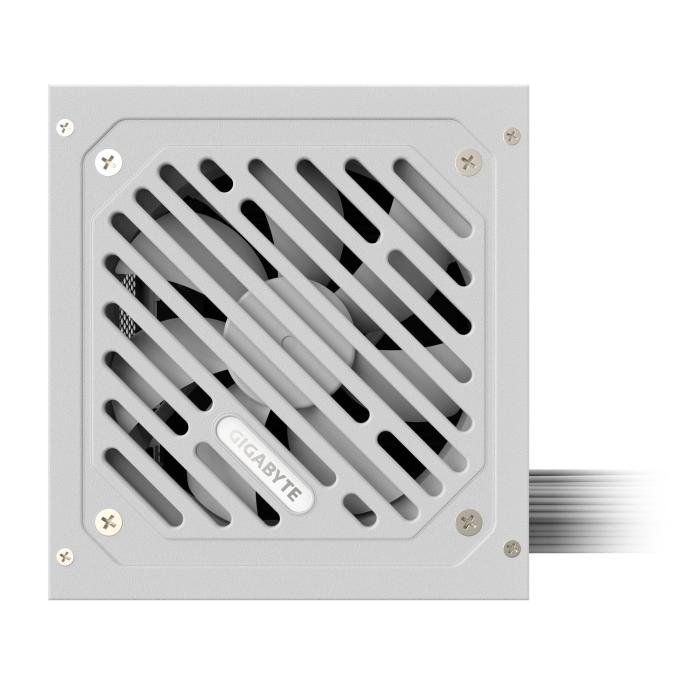

Fan diameter: 12 cm
Number of fans: 1 fan(s)
Fan location: Top
On/off switch: Yes

Weight & dimensions

Width: 140 mm
Depth: 150 mm
Height: 86 mm
Weight: 2.23 kg

Packaging data

Package width: 254 mm
Package depth: 206 mm
Package height: 117 mm
Package weight: 2.6 kg
Package type: Box

Logistics data

Warranty period: 3 year(s)
