Description

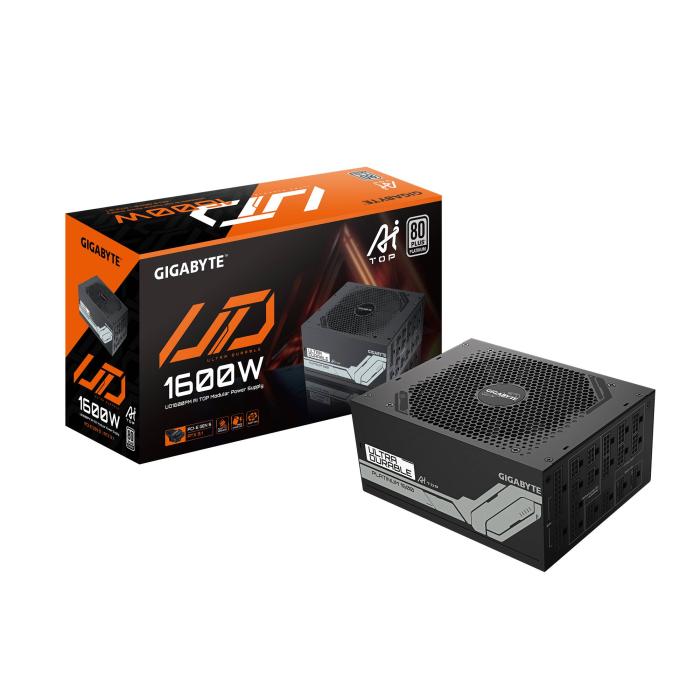

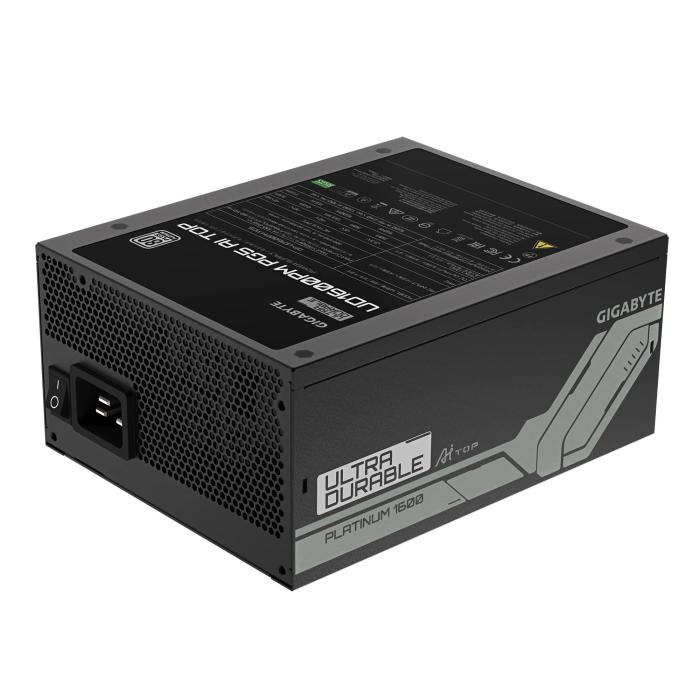

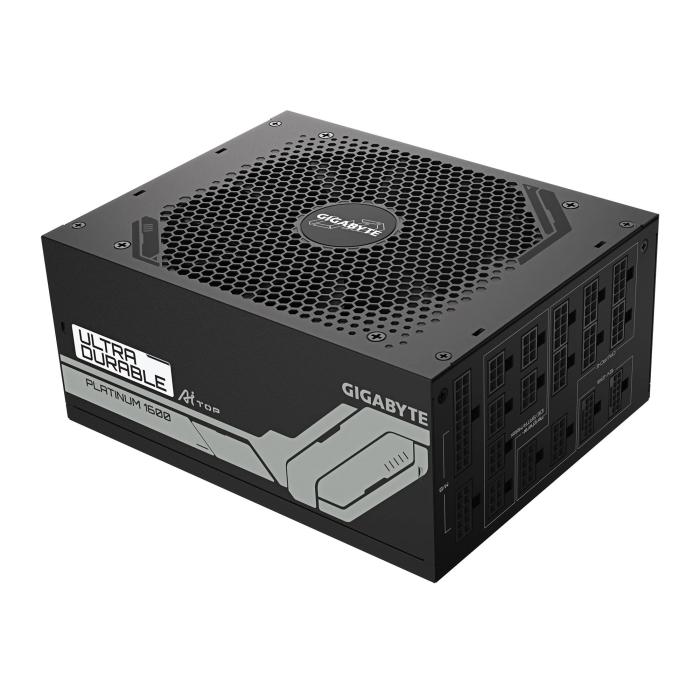

GIGABYTE UD1600PM PG5 AI TOP Power Supply - 1600 W total power, fully modular design and 120 mm fan, ready for builds requiring high power delivery. Its 92% efficiency with 80 PLUS Platinum certification and 0.9 power factor make it suitable for demanding systems, while ATX 3.1 compatibility and PCIe 5.0 connector facilitate connection of modern components. Features protections against overcurrent, overvoltage, overvoltage, overheating, short circuit and undervoltage, with a 16 ms hold-up time and Power Good signal with 100 to 150 ms margin.
Specifications

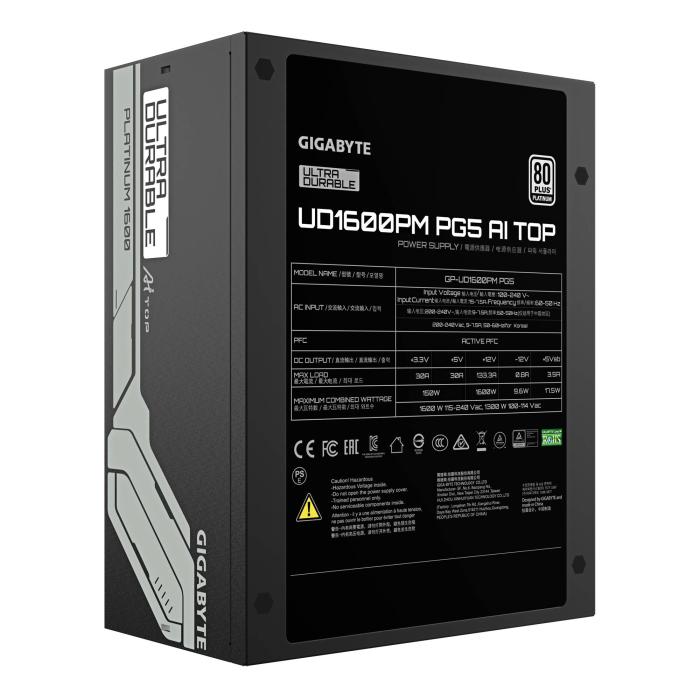

Power
- Total power: 1600 W
- AC input voltage: 100 - 240 V
- AC input frequency: 50/60 Hz
- Input current: 15 - 7.5 A
- Power factor: 0.9
- Power Factor Correction (PFC) type: Active
- Combined power (+3.3V): 150 W
- Combined power (+12V): 1600 W
- Combined power (+5V): 150 W
- Combined power (-12V): 9.6 W
- Combined power (+5Vsb): 17.5 W
- Max output current (+3.3V): 30 A
- Max output current (+12V): 133.3 A
- Max output current (+5V): 30 A
- Max output current (-12V): 0.8 A
- Max output current (+5Vsb): 3.5 A
- Hold time: 16 ms
- Efficiency: 92%
- Power Good signal delay range: 100 - 150 ms
- Power protection features: Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage

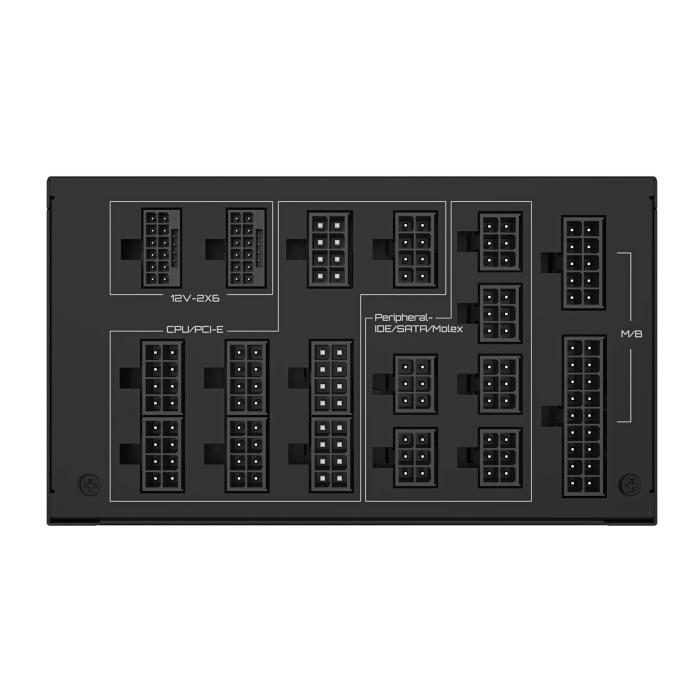

Ports & interfaces
- Motherboard power connector: 20+4 pin ATX
- Motherboard power cable length: 61 cm
- Number of SATA power connectors: 16
- SATA power cable length: 150, 650 mm
- Peripheral (Molex) power connectors (4-pin): 6
- EPS power connector (4+4 pin): Yes
- PCI Express power connectors (6+2 pin): 8
- CPU power connector (4+4 pin): Yes
- ATX power connector (20+4 pin): Yes
- PCI Express connector: Yes
- Cabling type: Fully-Modular
Performance
- 80 PLUS certification: 80 PLUS Platinum
- Purpose: PC
- Power supply unit (PSU) form factor: ATX
- ATX version: 3.1
- Bearing technology: DBB
- Mean time between failures (MTBF): 100000 h
Design
- Product colour: Black
- Cooling type: Active

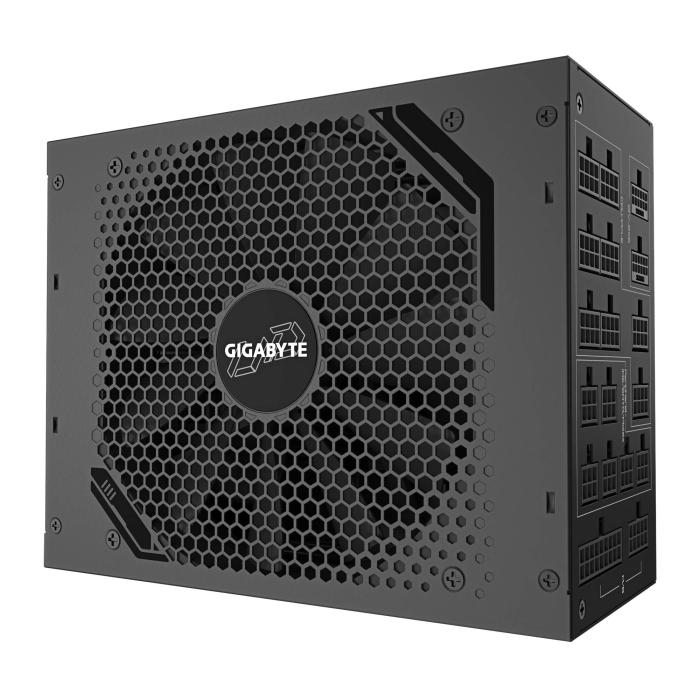

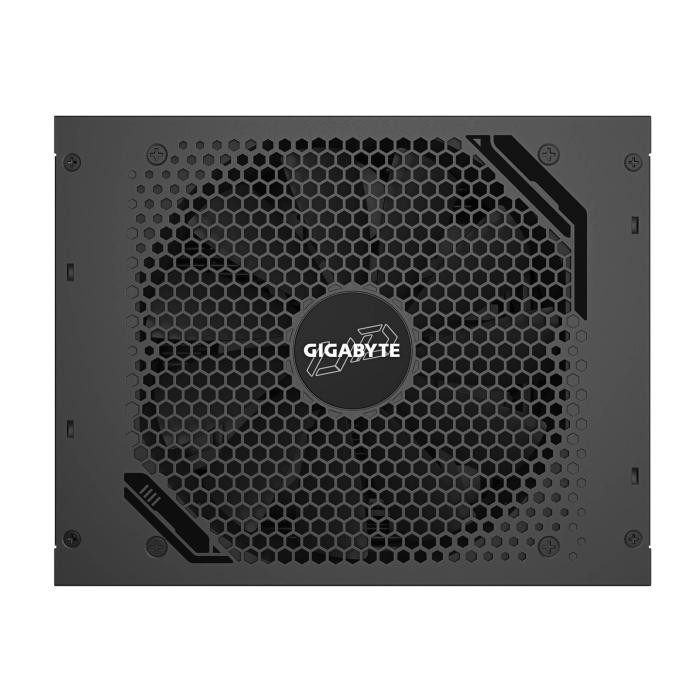

- Fan diameter: 12 cm
- Number of fans: 1 fan(s)
- Fan location: Top
- On/off switch: Yes
Weight & dimensions
- Width: 150 mm
- Depth: 190 mm
- Height: 86 mm
- Weight: 5.3 kg
Packaging data
- Package width: 410 mm
- Package depth: 219 mm
- Package height: 145 mm
- Package weight: 5.58 kg
- Package type: Box
Logistics data
- Warranty period: 10 year(s)
