Description

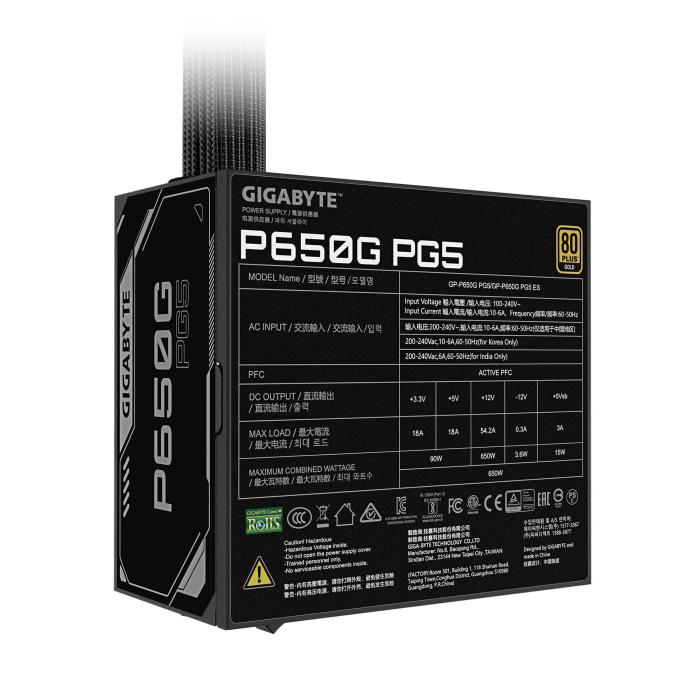

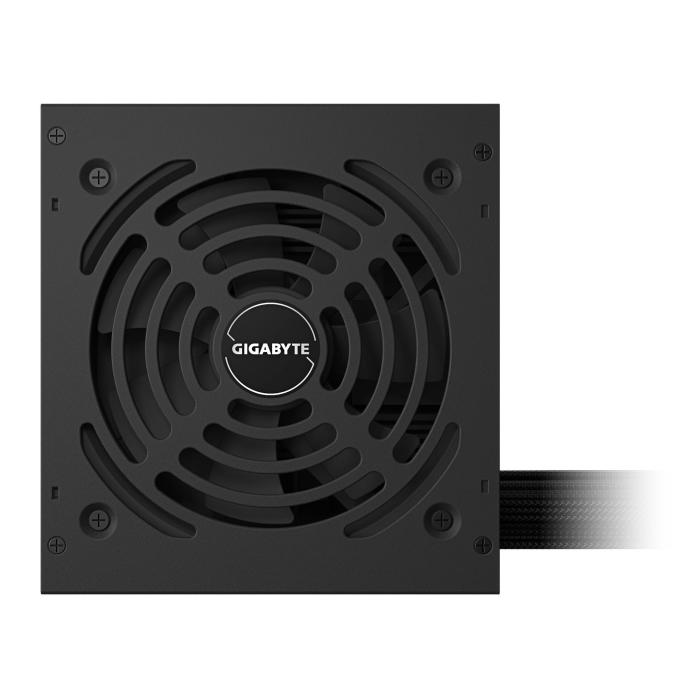

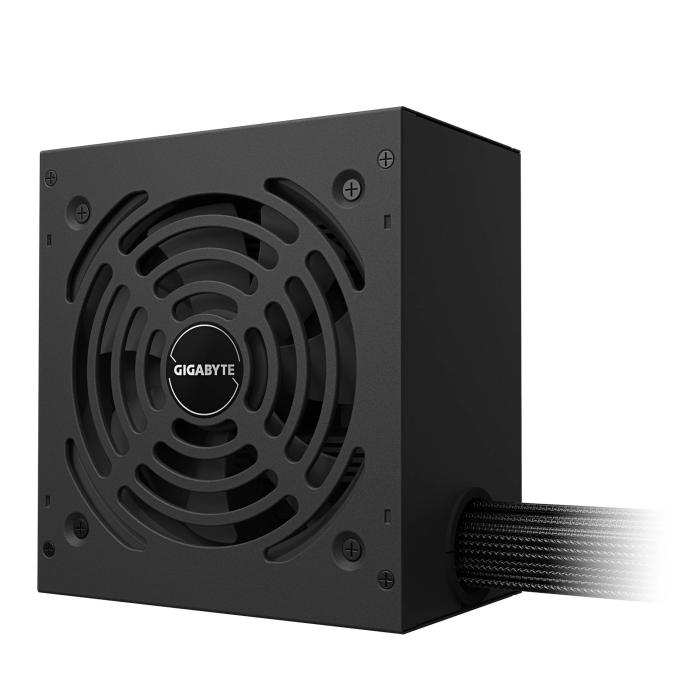

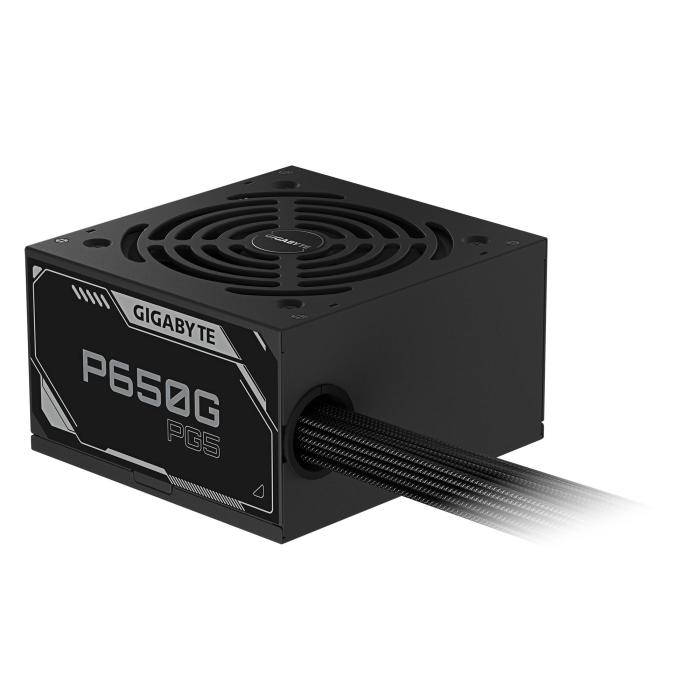

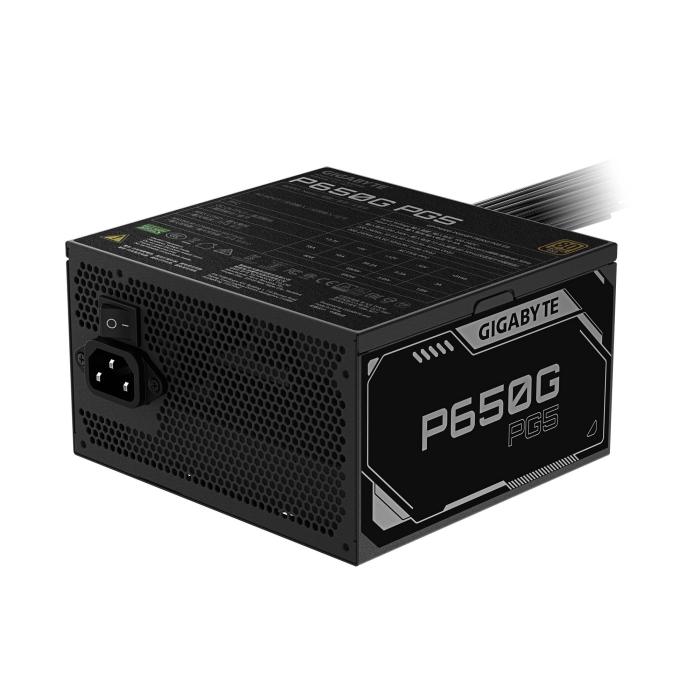

GIGABYTE P650G PCIE 5.1 Power Supply - PCIe 5.1, 80 PLUS Silver, 120mm Fan, ATX 3.1 compatible, EU Plug, 650 W, 100 - 240 V, 50/60 Hz, 10 - 6 A, 10 A, 6 A
Specifications
Power
- Total power: 650 W
- AC input voltage: 100 - 240 V
- AC input frequency: 50/60 Hz
- Input current: 10 - 6 A
- Maximum input current (@110V): 10 A
- Maximum input current (@220V): 6 A
- Power Factor Correction (PFC) type: Active
- Combined power (+3.3V): 90 W
- Combined power (+12V): 650 W
- Combined power (+5V): 650 W
- Combined power (-12V): 3.6 W
- Combined power (+5Vsb): 15 W
- Max output current (+3.3V): 18 A
- Max output current (+12V): 54.2 A
- Max output current (+5V): 18 A
- Max output current (-12V): 0.3 A
- Max output current (+5Vsb): 18 A
- Power Good signal delay range: 100 - 150 ms
- Power protection features: Over power, Overcharge, Short circuit, Under voltage
Ports & interfaces
- Motherboard power connector: 20+4 pin ATX
- Motherboard power cable length: 60 cm
- Number of SATA power connectors: 6
- SATA power cable length: 120, 500 mm
- Peripheral (Molex) power connectors (4-pin): 3
- Peripheral (Molex) power cable length: 150 mm
- PCI Express power connectors (6+2 pin): 2
- PCI Express power cable length: 50 cm
- CPU P4 connector (4-pin): 1
- CPU power connector (4+4 pin): Yes
- CPU power cable length: 60 cm
- ATX power connector (20+4 pin): Yes
- Floppy disk drive connector: Yes
- Cabling type: Non-Modular
Performance
- 80 PLUS certification: 80 PLUS Gold
- Purpose: PC
- Power supply unit (PSU) form factor: ATX
- ATX version: 3.1
- Bearing technology: HYB
- Mean time between failures (MTBF): 100000 h
Design
- Product colour: Black
- Cooling type: Active
- Fan diameter: 12 cm
- Number of fans: 1 fan(s)
- Fan location: Top
- On/off switch: Yes
Weight & dimensions
- Width: 140 mm
- Depth: 150 mm
- Height: 86 mm
- Weight: 1.76 kg
Packaging data
- Package width: 260 mm
- Package depth: 110 mm
- Package height: 180 mm
- Package weight: 1.92 kg
- Package type: Box
Logistics data
- Warranty period: 5 year(s)
