Description

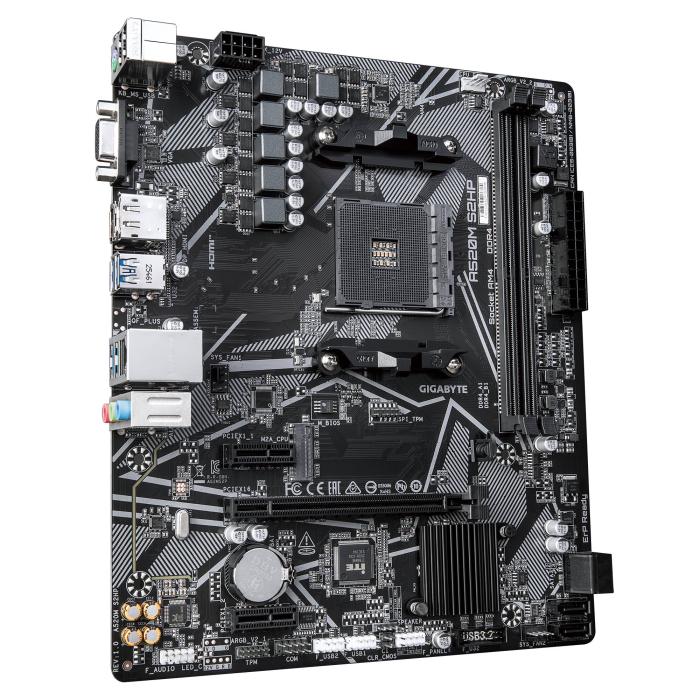

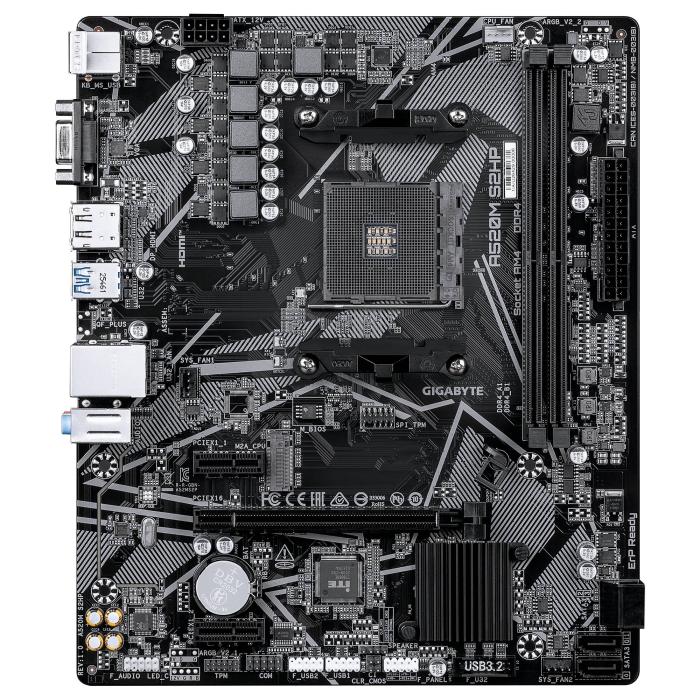

The GIGABYTE A520M S2HP motherboard is designed for AMD Ryzen 3000 Series processors on the AM4 socket. It supports up to 64 GB of DDR4-SDRAM memory in two DIMM slots, with speeds reaching up to 4866 MHz and dual-channel operation, as well as compatibility with ECC and non-ECC modules. As for storage, it offers M.2, PCI Express 3.0 and SATA interfaces, with support for RAID configurations at levels 0, 1 and 10. It includes HDCP for playback of protected content. It is a suitable option for building a system with an AMD processor of that generation and expanding the memory according to your needs.
Specifications
Processor
- Processor manufacturer: AMD
- Processor socket: Socket AM4
- Compatible processor series: AMD Ryzen 3000 Series
- Maximum number of SMP processors: 1
- Supported processor sockets: Socket AM4
Memory
- Supported memory types: DDR4-SDRAM
- Number of memory slots: 2
- Memory slots type: DIMM
- Memory channels: Dual-channel
- ECC сompatibility: ECC & Non-ECC
- Supported memory clock speeds: 2133, 2400, 2667, 2933, 3200, 3333, 3600, 4866 MHz
- Supported memory clock speed (max): 3200 MHz
- Maximum internal memory: 64 GB
Storage controllers
- Supported storage drive interfaces: M.2, PCI Express 3.0, SATA
- RAID support: Yes
- RAID levels: 0, 1, 10
Graphics
- On-board graphics card: No
- HDCP: Yes
Internal I/O
- USB 2.0 connectors: 2
- USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
- Number of SATA III connectors: 4
- ATX Power connector (24-pin): Yes
- Power fan connector: Yes
- CPU fan connector: Yes
- Number of chassis fan connectors: 2
- RGB LED pin header: Yes
- Number of RGB LED pin headers: 4

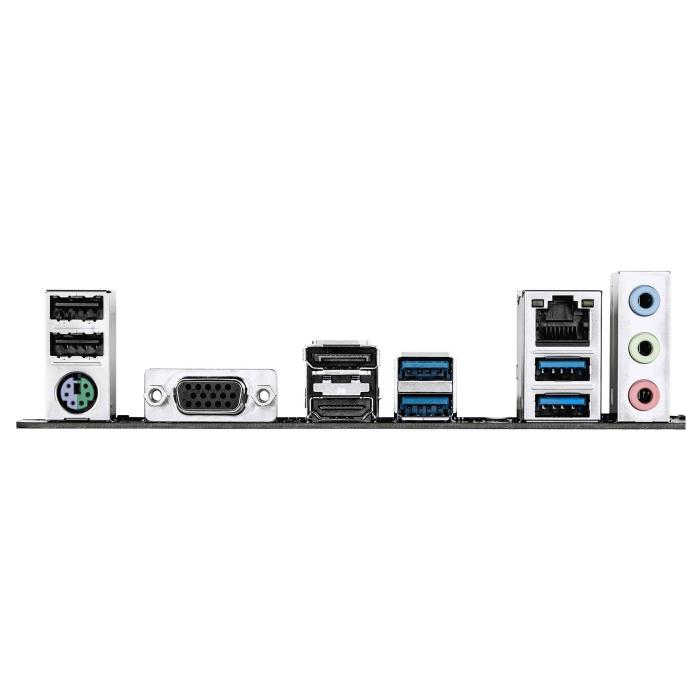

Rear panel I/O ports
- USB 2.0 ports quantity: 2
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
- Ethernet LAN (RJ-45) ports: 1
- PS/2 ports quantity: 1
- HDMI ports quantity: 1
Network
- Ethernet LAN: Yes
- Ethernet interface type: Gigabit Ethernet
- Wi-Fi: No
Features
- Motherboard chipset: AMD A520
- Audio output channels: 7.1 channels
- Product colour: Black
- Component for: PC
- Motherboard form factor: micro ATX
- Motherboard chipset family: AMD
Expansion slots
- PCI Express x1 (Gen 3.x) slots: 2
- PCI Express x16 (Gen 3.x) slots: 1
- Number of M.2 (M) slots: 1
BIOS
- BIOS type: UEFI AMI
- BIOS memory size: 128 Mbit
- ACPI version: 5.0
- Clear CMOS jumper: Yes
- Clear CMOS button: Yes
- Desktop Management Interface (DMI) version: 2.7
- System management BIOS (SMBIOS) version: 2.7
Logistics data
- Country of origin: China
- Products per shipping (inner) case: 1 pc(s)
Battery
- Battery weight: 3 g
- Lithium weight per battery: 0.07 g
- Number of battery cells: 1
- Battery capacity: 220 mAh
- Battery technology: Lithium-Manganese Dioxide (LiMnO2)
- Battery type: CR2032
Packaging data
- Package width: 265 mm
- Package depth: 235 mm
- Package height: 52 mm
- Package weight: 772 g
Weight & dimensions
- Width: 244 mm
- Depth: 205 mm
- Height: 35 mm
Packaging content
- Batteries included: Yes
Technical details
- Warranty period: 3 year(s)
