Extreme networks 5420F-48P-4XE network switch Managed L2/L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Purple

Return

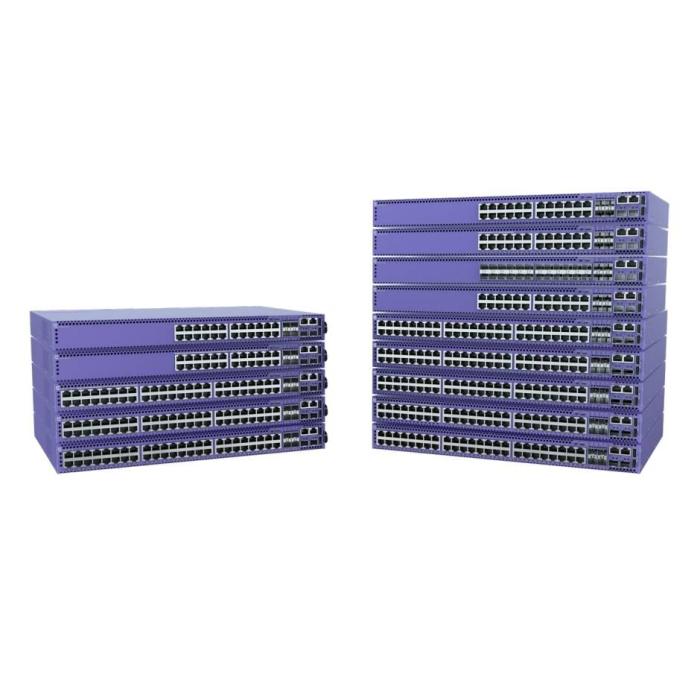

Product 1 image

Extreme networks 5420F-48P-4XE network switch Managed L2/L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Purple

$7,472.69

$7,472.69 without VAT

Amount

Brand: EXTREME NETWORKS

SKU: 96652 PRC: 397045 EAN: 644728051960 PN: 5420F-48P-4XE

Description

Specifications

Management features

Switch type: Managed
Switch layer: L2/L3
Quality of Service (QoS) support: Yes
Web-based management: Yes
Cloud-managed: Yes
ARP inspection: Yes
Configuring Location Settings (CLI): Yes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 48
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
SFP module slots quantity: 2
SFP+ module slots quantity: 4
Uplink ports quantity: 4
Console port: RJ-45/Micro-USB
USB 2.0 ports quantity: 2

Network

Networking standards: IEEE 802.3at
10G support: Yes
Copper ethernet cabling technology: 1000BASE-T
Full duplex: Yes
IP routing: Yes
Half duplex: Yes
IP address table: 16000
Ethernet LAN data rates: 10,100,1000 Mbit/s
Auto-sensing: Yes
IPv4 routes: 12000
IPv6 routes: 6000
VLAN support: Yes
Number of VLANs: 4094

Data transmission

Switching capacity: 256 Gbit/s
Forwarding rate: 190.5 Mpps
MAC address table: 32000 entries
Number of queues: 8
Number of IP interfaces: 1533

Security

Access Control List (ACL): Yes
Access Control List (ACL) egress: 1024
Access Control List (ACL) ingress: 8000

Multicast features

Multicast support: Yes
IPv4 multicast entries: 6000

Design

Rack mounting: Yes
Stackable: Yes
Product colour: Purple

Performance

Noise level: 41.3 dB

Power

Power source: AC
Power supply included: Yes
Number of power supply units: 1
AC input voltage: 100 - 240 V
AC input frequency: 47/63 Hz
Power consumption (max): 1674 W

Power over Ethernet (PoE)

Power over Ethernet (PoE): Yes
Power over Ethernet (PoE) ports quantity: 48
Power over Ethernet (PoE) power per port: 30 W
Total Power over Ethernet (PoE) budget: 740 W

Operational conditions

Operating temperature (T-T): 0 - 50 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 10 - 95%
Storage relative humidity (H-H): 10 - 95%
Operating altitude: 0 - 3000 m
Heat dissipation: 663 BTU/h

Weight & dimensions

Width: 441 mm
Depth: 330 mm
Height: 44 mm
Weight: 5.28 kg

Certificates

Certification: CISPR 32, Class A (International Emissions) AS/NZS CISPR32 CISPR 24 Class A (International Immunity) IEC 61000-4-2 / EN 61000-4-
