Description

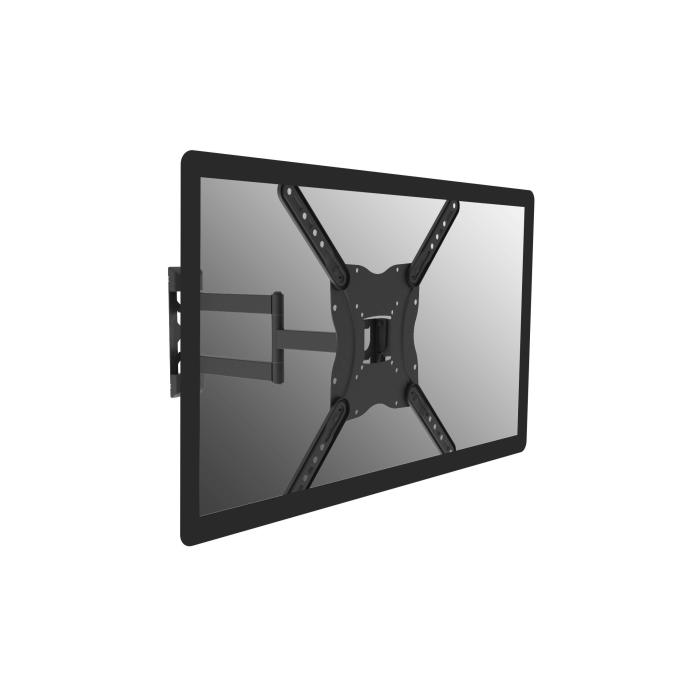

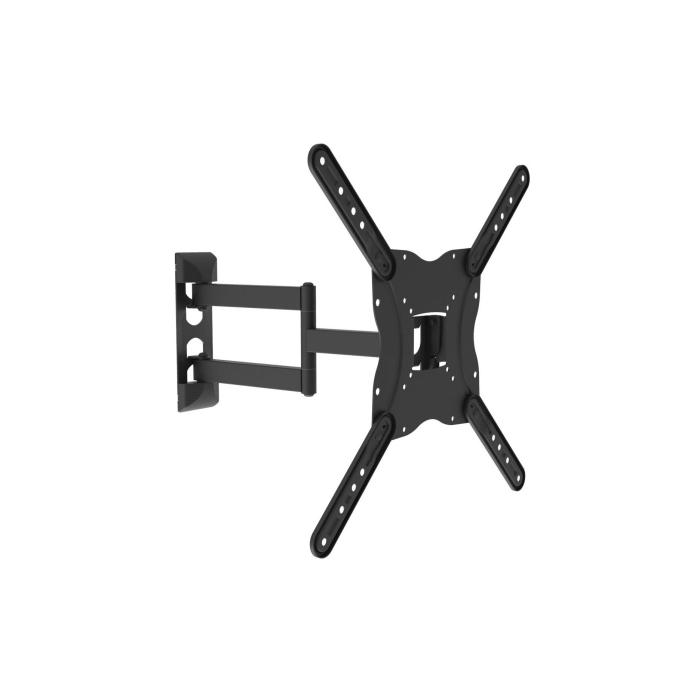

The EQUIP articulating wall mount for TV allows screens from 33 cm (13") to 139.7 cm (55") with a maximum weight of 30 kg to be installed. Its mounting system supports 75 x 75, 100 x 100, 200 x 100, 200 x 200, 300 x 300 and 400 x 400 mm interfaces, so it adapts to a wide variety of televisions. Once fixed to the wall, the articulating arm leaves the screen between 6.5 cm and 21.2 cm from the wall depending on how far it is extended. The swivel angle reaches 90°, making it easy to orient the screen towards different points in the room, while the adjustable tilt from -14 to 5° helps to adjust the viewing angle. Integrated cable management allows the cables to be gathered and keeps the setup tidy. Made of steel and with CE certification, this black mount weighs 2.2 kg and is designed to be mounted directly on the wall.
Specifications
Mounting
- Maximum weight capacity: 30 kg
- Minimum screen size: 33 cm (13")
- Maximum screen size: 139.7 cm (55")
- Minimum VESA mount: 75 x 75 mm
- Maximum VESA mount: 400 x 400 mm
- Panel mounting interface: 75 x 75, 100 x 100, 200 x 100, 200 x 200, 300 x 300, 400 x 400
- Mounting type: Wall
Ergonomics
- Height adjustment: No
- Tilt adjustment: Yes
- Tilt angle range: -14 - 5°
- Swivel angle: 90°
- Cable management: Yes
- Distance to the wall (max): 21.2 cm
- Distance to the wall (min): 6.5 cm
Design
- Product colour: Black
- Housing material: Steel
- Certification: CE
Technical details
- Country of origin: China
Packaging content
- Screws included: Yes
- Manual: Yes
Weight & dimensions
- Width: 403 mm
- Depth (max): 42 cm
- Height: 403 mm
- Weight: 2.2 kg
Packaging data
- Package width: 230 mm
- Package depth: 58 mm
- Package height: 260 mm
- Package weight: 2.4 kg
- Package type: Box
Logistics data
- Harmonized System (HS) code: 85299097
