Description

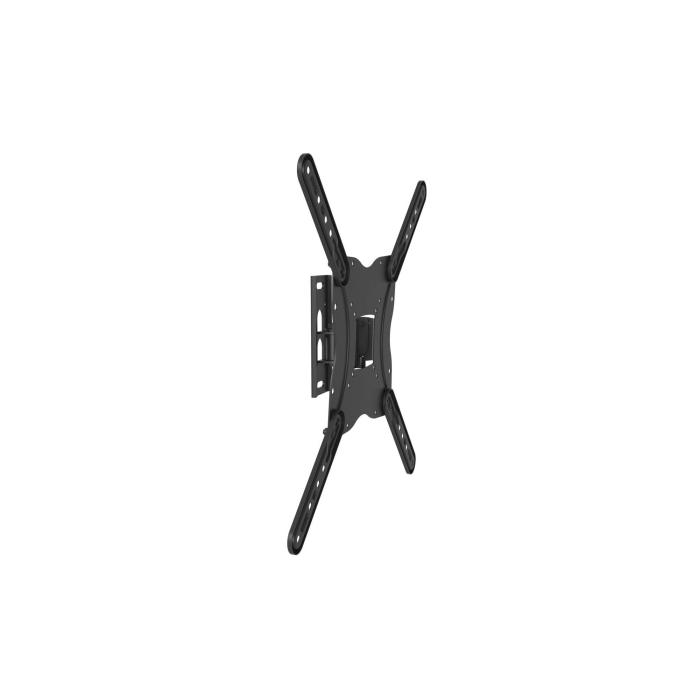

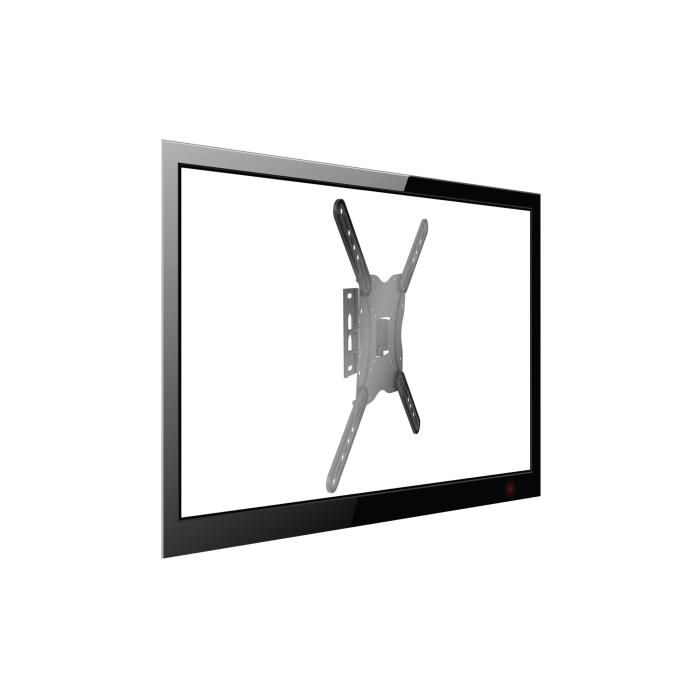

The EQUIP articulating wall mount allows you to fix a screen measuring between 33 cm (13") and 139.7 cm (55"), with a maximum weight of 30 kg, making it compatible with televisions of different inches, as long as they respect that limit. Its mounting system supports VESA interfaces of 75 x 75, 100 x 100, 200 x 100, 200 x 200, 300 x 300 and 400 x 400 mm, so it covers a good part of the usual formats on the market. The unit, in black and weighing 1.4 kg, is manufactured with a steel casing and has CE certification. The articulation allows the screen to be tilted between -14 and 5° and rotated up to 15°, so you can orient it towards the viewing point and correct reflections. When you bring it closer, the maximum distance from the wall is 6.5 cm, a tucked-away position that keeps the television discreet in the room.
Specifications
Mounting
- Maximum weight capacity: 30 kg
- Minimum screen size: 33 cm (13")
- Number of displays supported: 1
- Maximum screen size: 139.7 cm (55")
- Minimum VESA mount: 75 x 75 mm
- Maximum VESA mount: 400 x 400 mm
- Panel mounting interface: 75 x 75, 100 x 100, 200 x 100, 200 x 200, 300 x 300, 400 x 400
- Mounting type: Wall
Ergonomics
- Height adjustment: No
- Tilt adjustment: Yes
- Tilt angle range: -14 - 5°
- Swivel angle: 15°
- Cable management: No
- Distance to the wall (max): 6.5 cm
Design
- Product colour: Black
- Housing material: Steel
- Certification: CE
Technical details
- Country of origin: China
Packaging content
- Screws included: Yes
- Manual: Yes
Weight & dimensions
- Width: 403 mm
- Depth (max): 6.2 cm
- Height: 403 mm
- Weight: 1.4 kg
Packaging data
- Package width: 227 mm
- Package depth: 70 mm
- Package height: 230 mm
- Package weight: 1.6 kg
- Package type: Box
Logistics data
- Harmonized System (HS) code: 85299097
