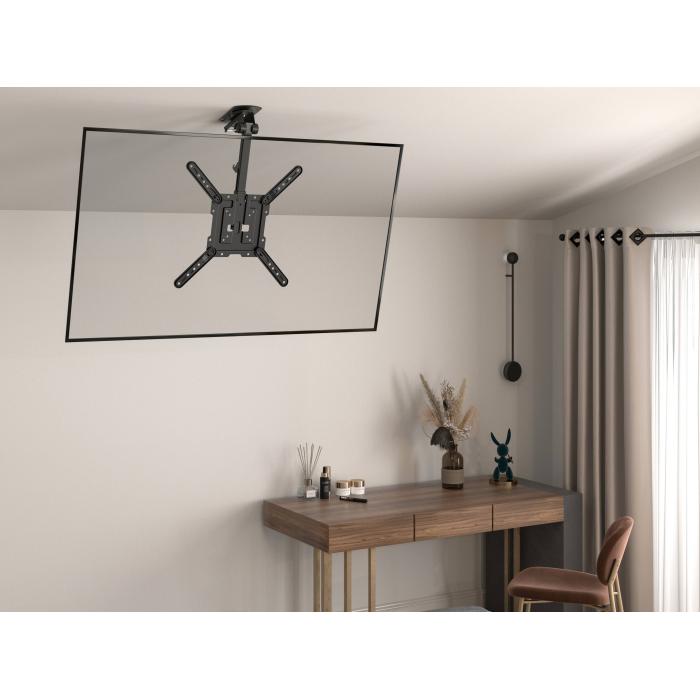

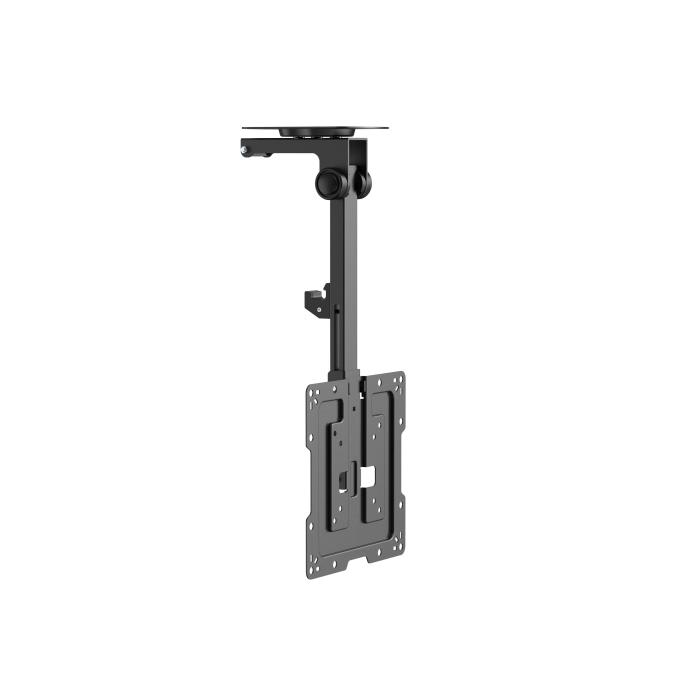

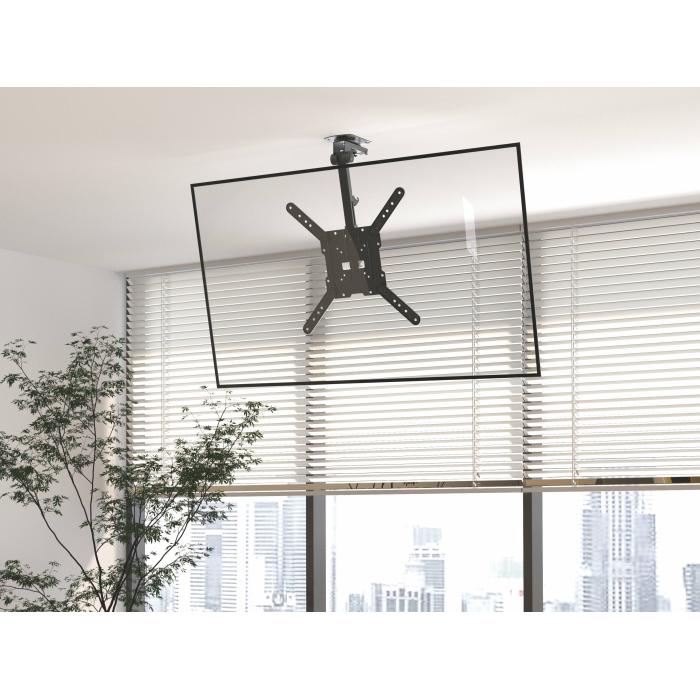

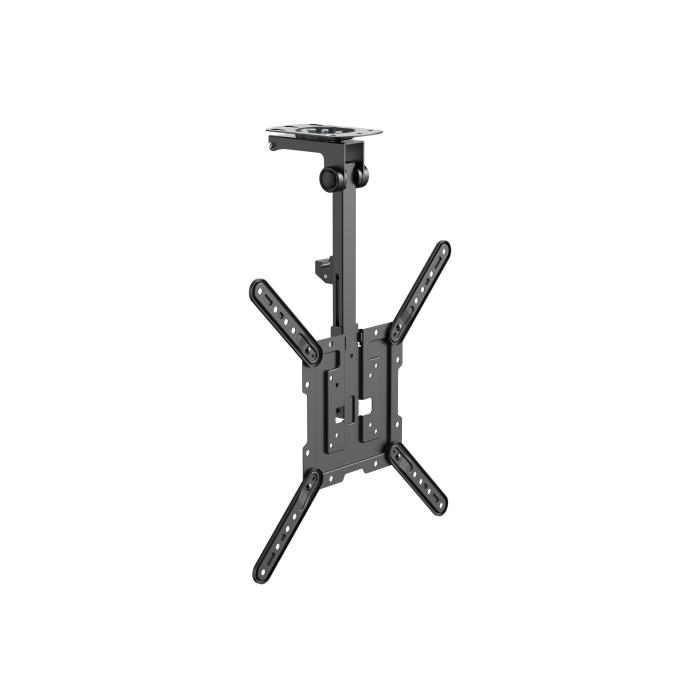

Equip 23''-55'' Ceiling Mount TV Bracket

Product 1 image

Product 2 image

Product 3 image

Product 4 image

Product 5 image

Equip 23''-55'' Ceiling Mount TV Bracket

28.00 €

23.14 € without VAT

Equip 23"-55" Ceiling Mount TV Bracket. More info

Amount

Brand: EQUIP

SKU: 105405 PRC: 518256 EAN: 4015867236116 PN: 650375

Description

23''-55'' Ceiling Mount TV Bracket

Specifications

Mounting

Maximum weight capacity: 20 kg
Minimum screen size: 58.4 cm (23")
Number of displays supported: 1
Maximum screen size: 139.7 cm (55")
Minimum VESA mount: 75 x 75 mm
Maximum VESA mount: 400 x 400 mm
Panel mounting interface: 75 x 75, 100 x 100, 100 x 200, 200 x 100, 200 x 200, 200 x 300, 200 x 400, 300 x 400, 300 x 300, 300 x 200, 400 x 200, 400 x 400
Mounting type: Ceiling

Ergonomics

Height adjustment: Yes
Height adjustment range: 520 - 614 mm
Tilt adjustment: Yes
Tilt angle range: 0 - 80°
Swivelling: Yes
Swivel angle range: -45 - 45°
Cable management: No
Distance to the wall (max): 8.3 cm
Suitable for curved screen: Yes

Design

Product colour: Black
Housing material: Stainless steel

Technical details

Country of origin: China
Sustainability compliance: Yes
Compliance certificates: REACH, RoHS

Packaging content

Screws included: Yes
Manual: Yes

Weight & dimensions

Width: 435 mm
Depth (max): 16.5 cm
Height: 614 mm
Weight: 2.11 kg

Packaging data

Package width: 415 mm
Package depth: 225 mm
Package height: 90 mm
Package weight: 2.45 kg

Logistics data

Master (outer) case width: 470 mm
Master (outer) case length: 430 mm
Master (outer) case height: 382 mm
Master (outer) case gross weight: 20.5 kg
Products per master (outer) case: 8 pc(s)
Harmonized System (HS) code: 8529908100
