Description

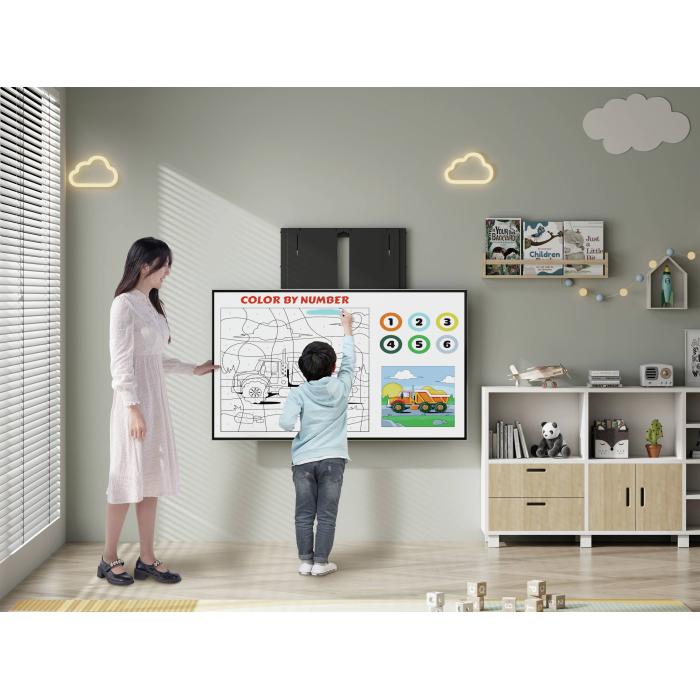

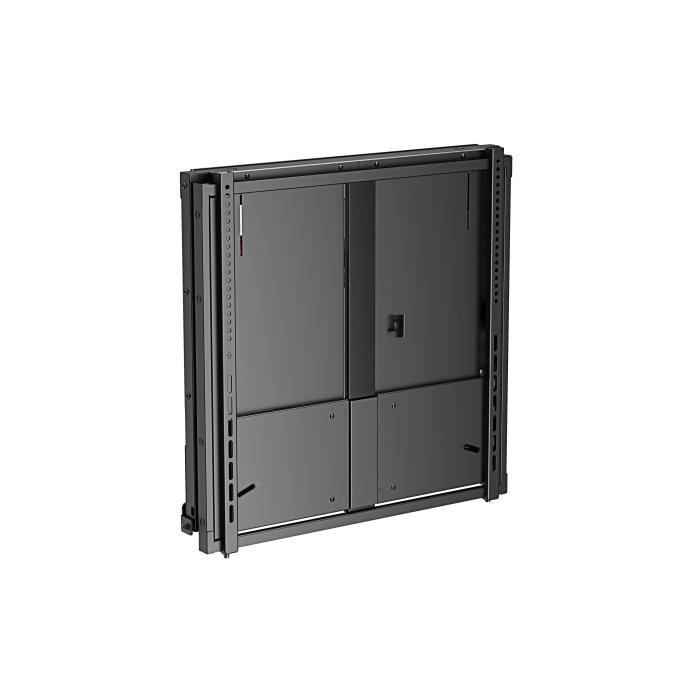

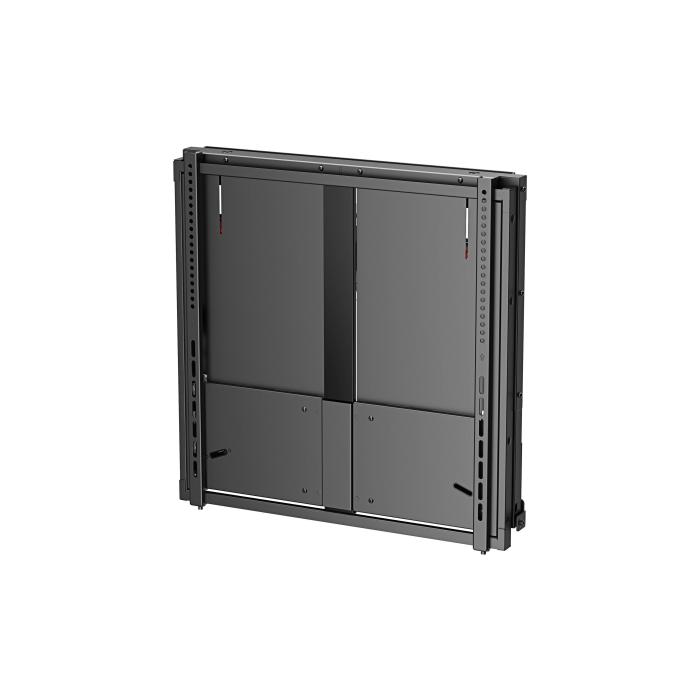

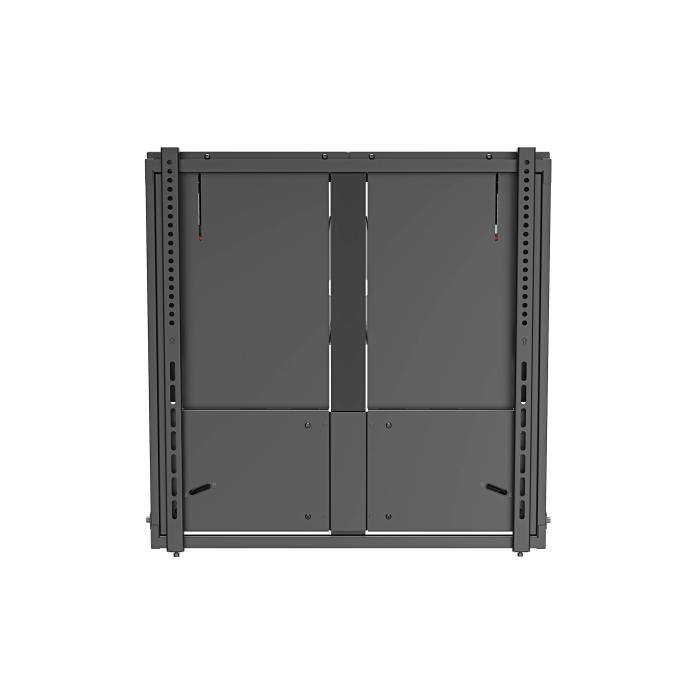

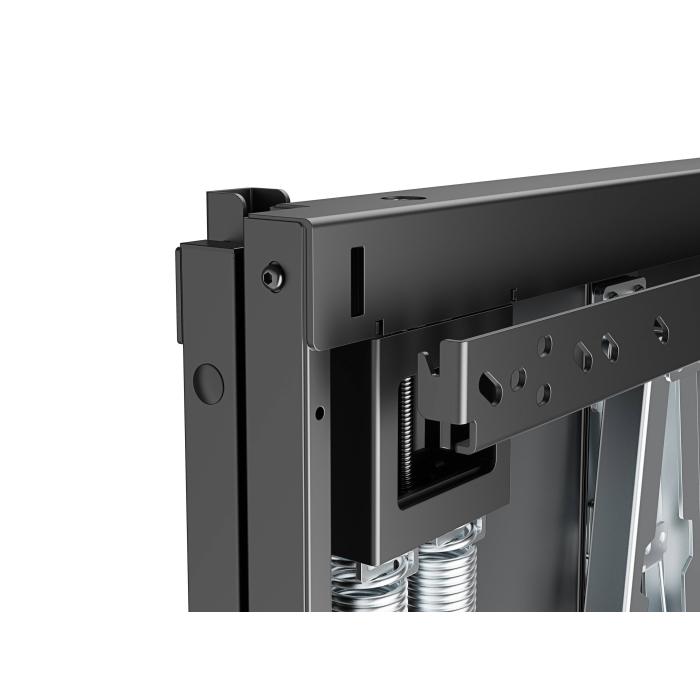

The EQUIP wall mount for interactive TV, in black, is designed for screens between 139.7 cm (55") and 2.18 m (86"). It supports a single screen with a maximum weight of 65 kg, thanks to its load capacity and its own weight of 25.8 kg. It is compatible with mounting interfaces from 200 x 200 mm up to 600 x 600 mm. Its structure allows the height to be adjusted manually and keeps the screen at a maximum distance of 9.6 cm from the wall. It incorporates cable management to organise the connections and an anti-theft function that adds security to the assembly. The casing combines aluminium, plastic and steel to offer robustness. It is supplied with screws to complete the installation.
Specifications
Mounting
- Maximum weight capacity: 65 kg
- Minimum screen size: 139.7 cm (55")
- Number of displays supported: 1
- Maximum screen size: 2.18 m (86")
- Minimum VESA mount: 200 x 200 mm
- Maximum VESA mount: 600 x 600 mm
- Panel mounting interface: 200 x 200, 200 x 300, 200 x 400, 300 x 200, 300 x 400, 300 x 300, 350 x 350, 400 x 200, 400 x 400, 400 x 300, 400 x 600, 600 x 2
- Mounting type: Wall
Ergonomics

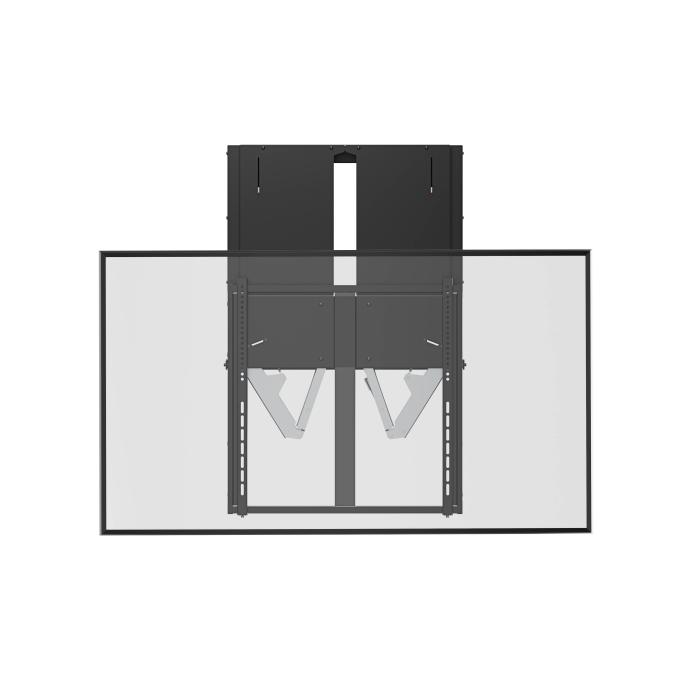

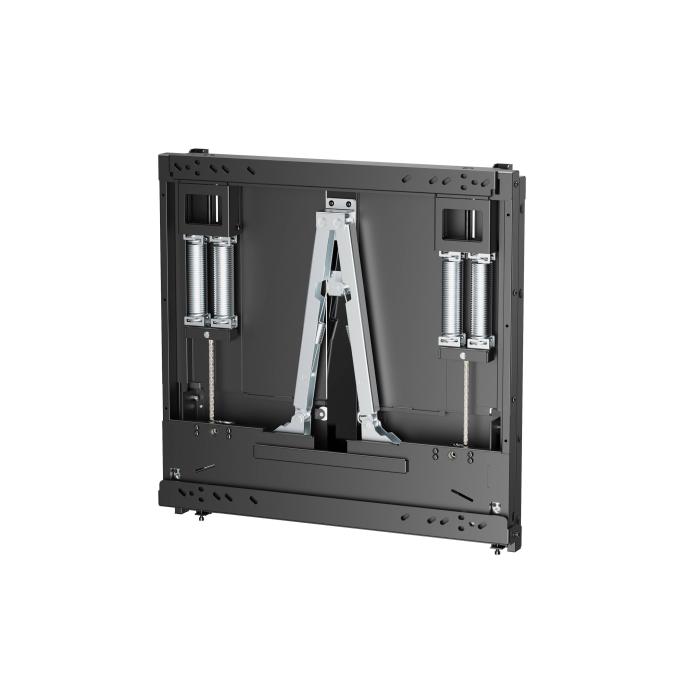

- Height adjustment: Yes
- Height adjustment type: Manual
- Cable management: Yes

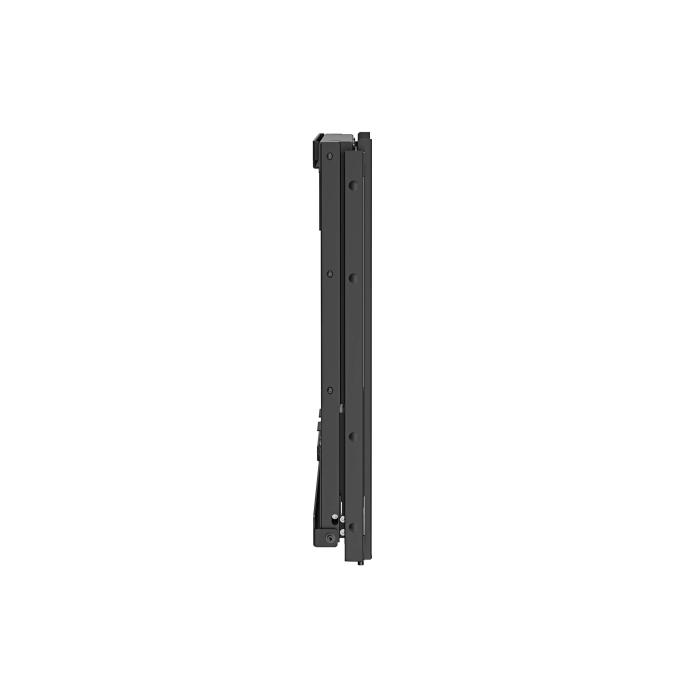

- Distance to the wall (max): 9.6 cm
Design
- Product colour: Black
- Housing material: Aluminium, Plastic, Steel

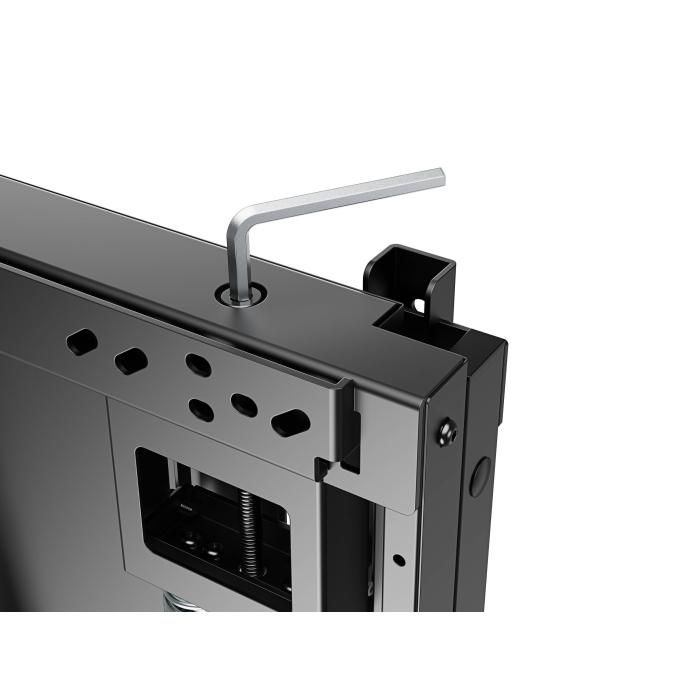

- Anti-theft function: Yes
Technical details
- Country of origin: China
- Compliance certificates: RoHS
Packaging content
- Screws included: Yes
Weight & dimensions
- Width: 700 mm
- Depth (max): 9.6 cm
- Height: 696 mm
- Weight: 25.8 kg
Packaging data
- Package width: 835 mm
- Package depth: 810 mm
- Package height: 135 mm
- Package weight: 29.5 kg
Logistics data
- Master (outer) case width: 835 mm
- Master (outer) case length: 810 mm
- Master (outer) case height: 135 mm
- Master (outer) case gross weight: 29.5 kg
- Products per master (outer) case: 1 pc(s)
- Customs product code (TARIC): 8529909700
