Description

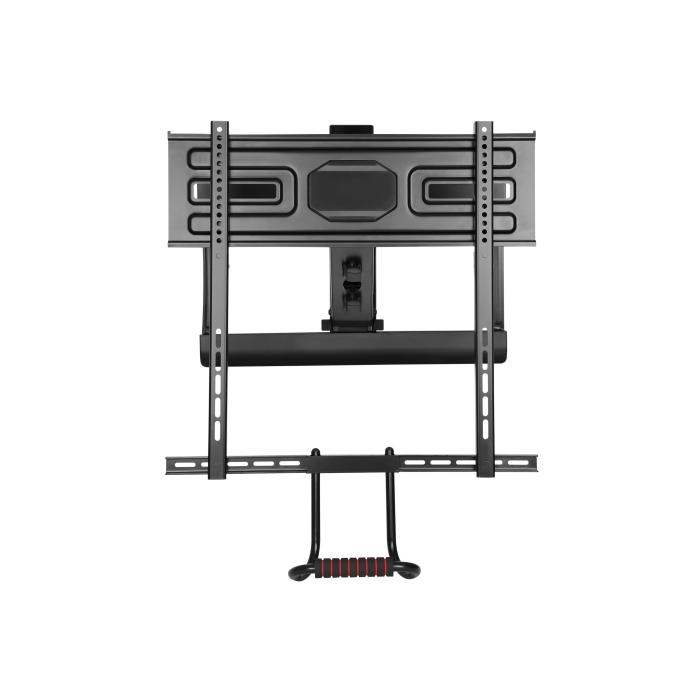

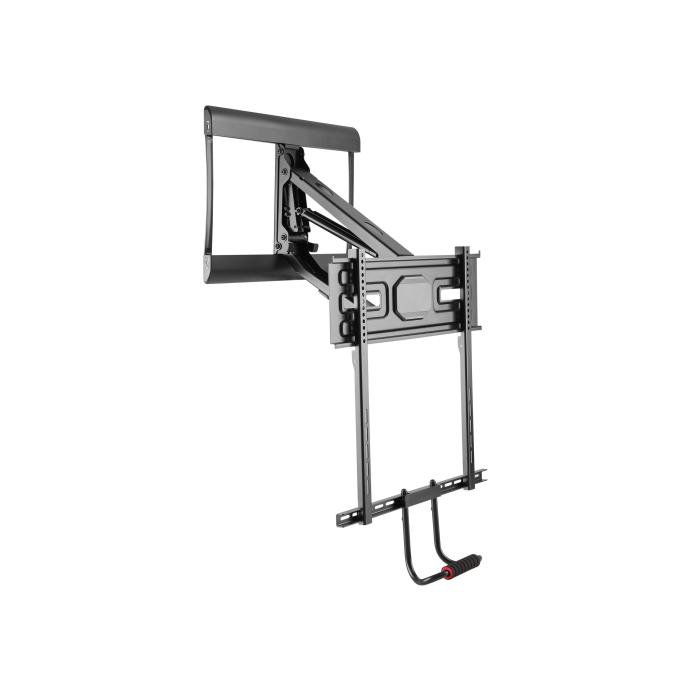

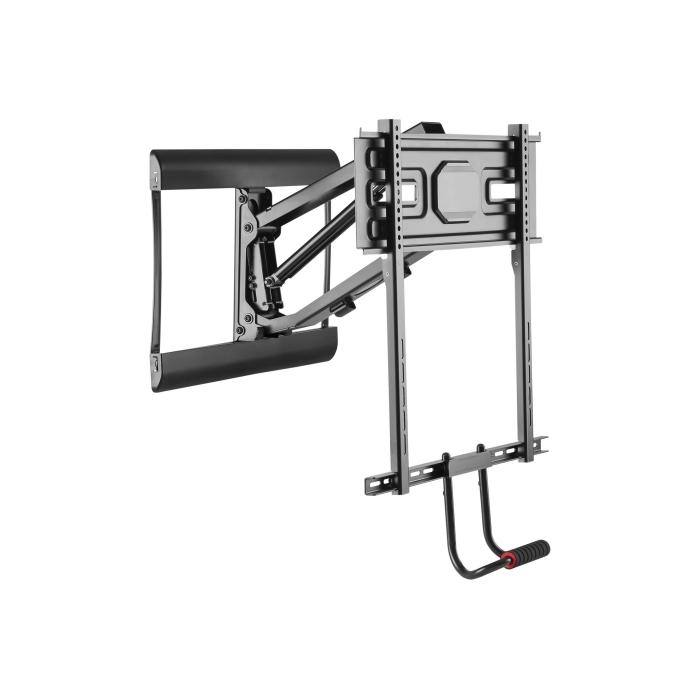

Pull-down TV wall mount bracket EQUIP for screens from 43" to 70", with a maximum weight capacity of 35 kg and compatibility with mounting interface from 200 x 200 mm to 600 x 400 mm. It supports a single screen and its mounting is wall-mounted, with a tilt of -5 to -12° and a swivel of -30 to 30°. The distance to the wall ranges from 9 cm to 48.6 cm and the maximum depth is 65 cm. Its casing combines plastic and steel, in black, and it features tilt adjustment and cable management. It includes screws and a user manual, and has CE certification. Its dimensions are 572 mm in width, 915 mm in height and a weight of 14.2 kg.
Specifications
Mounting
- Maximum weight capacity: 35 kg
- Minimum screen size: 109.2 cm (43")
- Number of displays supported: 1
- Maximum screen size: 177.8 cm (70")
- Minimum VESA mount: 200 x 200 mm
- Maximum VESA mount: 600 x 400 mm
- Panel mounting interface: 200 x 200, 300 x 200, 300 x 300, 400 x 200, 400 x 400, 400 x 300, 600 x 400
- Mounting type: Wall
Ergonomics
- Tilt adjustment: Yes

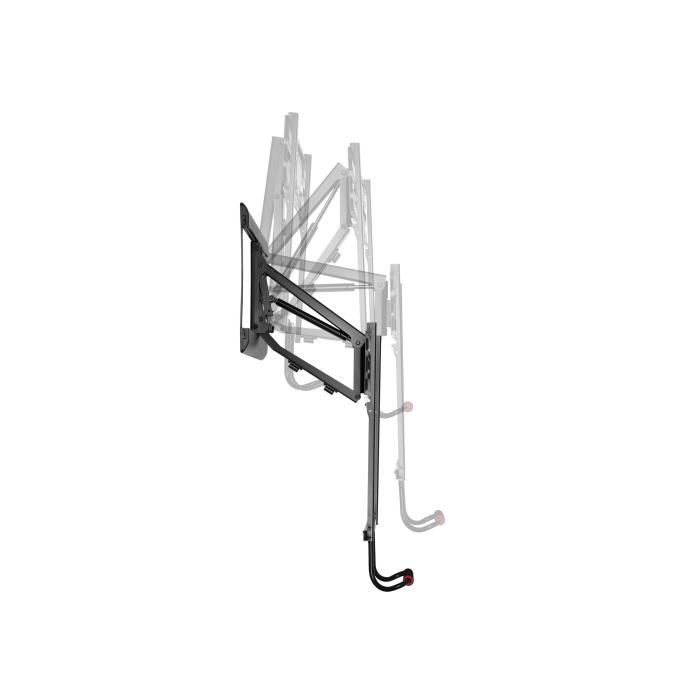

- Tilt angle range: -5 - -12°

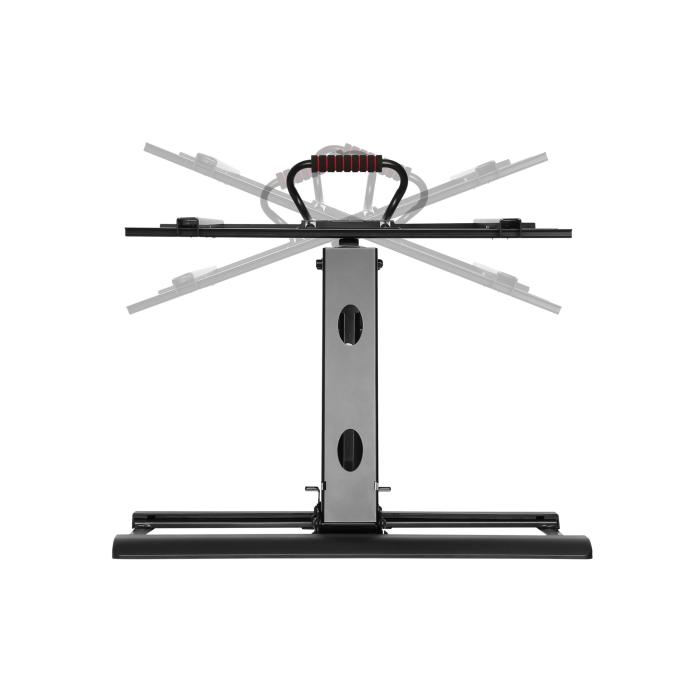

- Swivel angle range: -30 - 30°

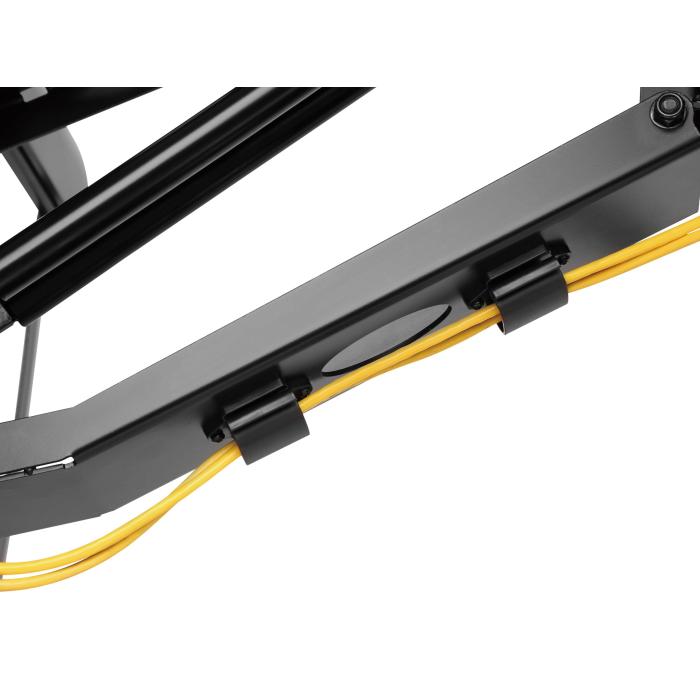

- Cable management: Yes
- Distance to the wall (max): 48.6 cm
- Distance to the wall (min): 9 cm
Design
- Product colour: Black
- Housing material: Plastic, Steel
- Anti-theft function: No
- Certification: CE
Technical details
- Country of origin: China
Packaging content
- Screws included: Yes
- Manual: Yes
Weight & dimensions
- Width: 572 mm
- Depth (max): 65 cm
- Height: 915 mm
- Weight: 14.2 kg
Packaging data
- Package width: 510 mm
- Package depth: 155 mm
- Package height: 770 mm
- Package weight: 16.3 kg
- Package type: Box
Logistics data
- Master (outer) case width: 510 mm
- Master (outer) case length: 155 mm
- Master (outer) case height: 770 mm
- Master (outer) case gross weight: 16.3 kg
- Products per master (outer) case: 1 pc(s)
- Harmonized System (HS) code: 85299097
