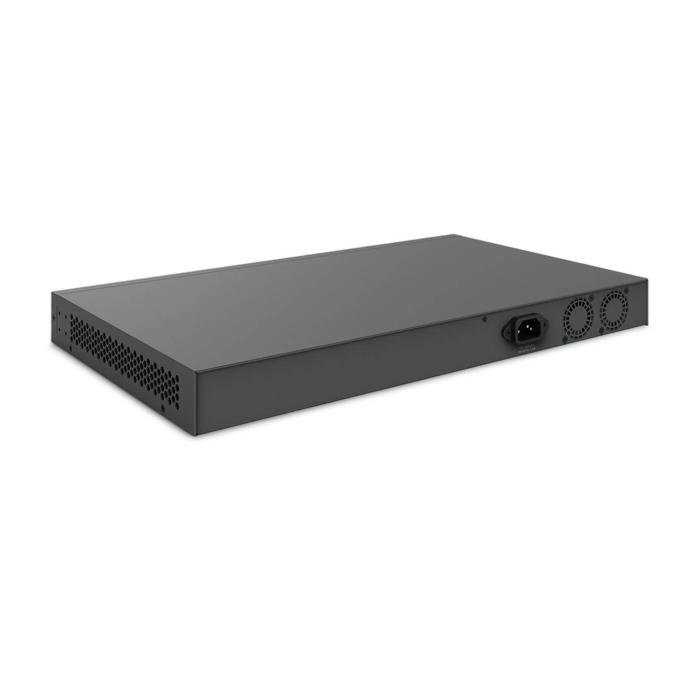

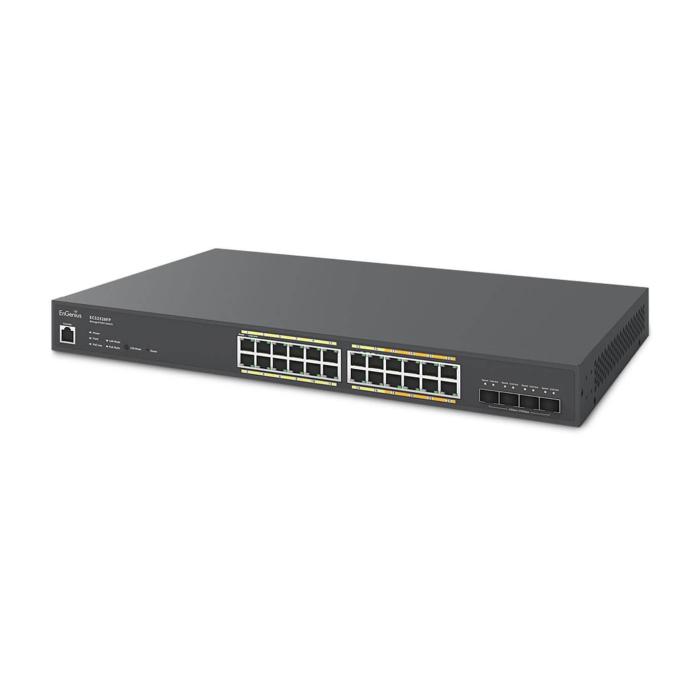

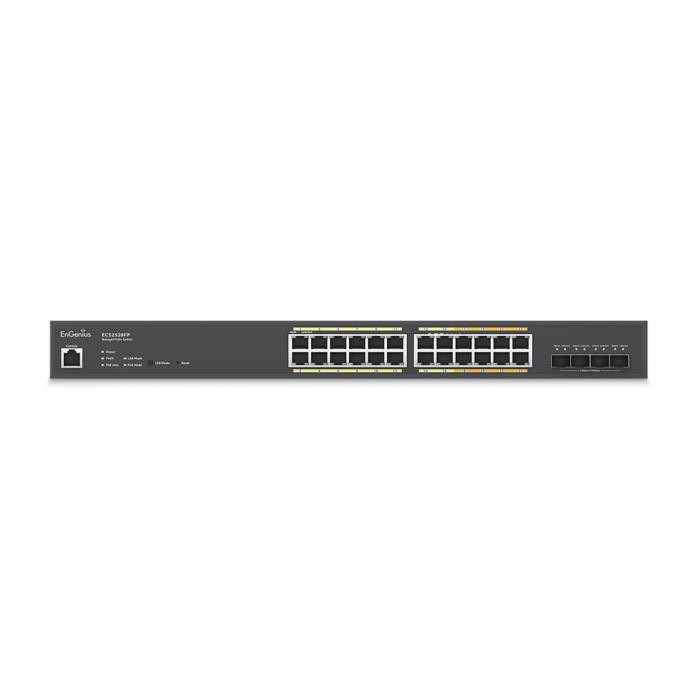

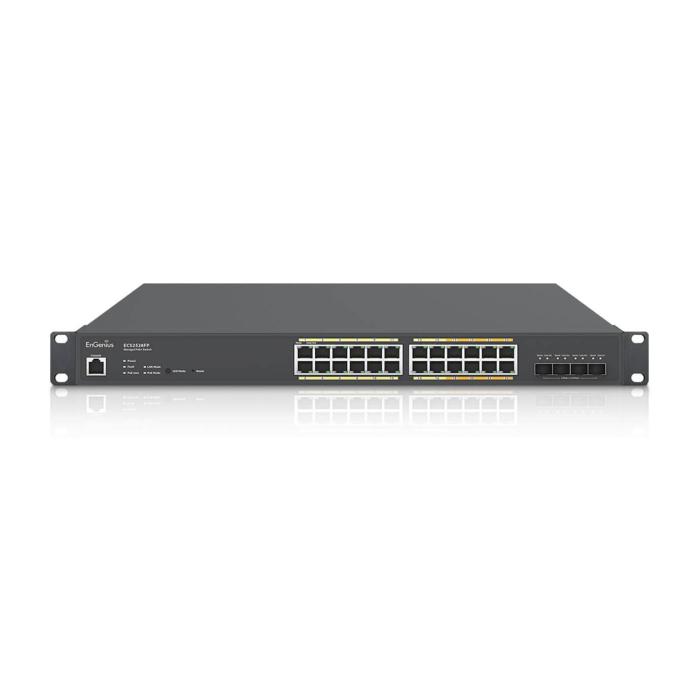

EnGenius CloudSwitch MGPlus 24 Full PoE

Not avaliable

More info

Brand: ENGENIUS
SKU: 104776 PRC: 509669 EAN: 655216010451 PN: ECS2528FP

Description

16×10/100/1000 Mbps Ports, 8×100/1000/2500 Mbps Ports, 4x SFP+ Ports, 512MB SDRAM, 128MB Flash, 260 x 440 x 44 mm, 4.7 kg

Specifications

Management features

  • Switch type: Managed
  • Switch layer: L2+
  • Quality of Service (QoS) support: Yes
  • Cloud-managed: Yes
  • ARP inspection: Yes

Ports & interfaces

  • Basic switching RJ-45 Ethernet ports quantity: 24
  • Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
  • Gigabit Ethernet (copper) ports quantity: 16
  • 2.5G Ethernet (copper) ports quantity: 8
  • SFP+ module slots quantity: 4
  • Console port: RJ-45
  • Power connector: DC-in jack

Network

  • Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x
  • 10G support: No
  • Full duplex: Yes
  • Flow control support: Yes
  • Link aggregation: Yes
  • Spanning tree protocol: Yes
  • VLAN support: Yes
  • Virtual LAN features: Multicast VLAN

Data transmission

  • Switching capacity: 152 Gbit/s
  • MAC address table: 16000 entries
  • Jumbo frames support: Yes
  • Jumbo frames: 10000

Security

  • DHCP features: DHCP client

Multicast features

  • Multicast support: Yes

Design

  • Rack mounting: Yes
  • Product colour: Black
  • LED indicators: Yes

Power

  • Power source: AC
  • AC input voltage: 100 - 240 V
  • AC input frequency: 50/60 Hz

Power over Ethernet (PoE)

  • Power over Ethernet (PoE): Yes
  • Power over Ethernet (PoE) ports quantity: 24
  • Total Power over Ethernet (PoE) budget: 410 W

Operational conditions

  • Operating temperature (T-T): 0 - 50 °C
  • Operating relative humidity (H-H): 5 - 95%
  • Storage relative humidity (H-H): 5 - 95%

Weight & dimensions

  • Width: 260 mm
  • Depth: 440 mm
  • Height: 44 mm
  • Weight: 4.08 kg

Packaging data

  • Package width: 349 mm
  • Package depth: 535 mm
  • Package height: 104 mm
  • Package weight: 4.8 kg
