Description

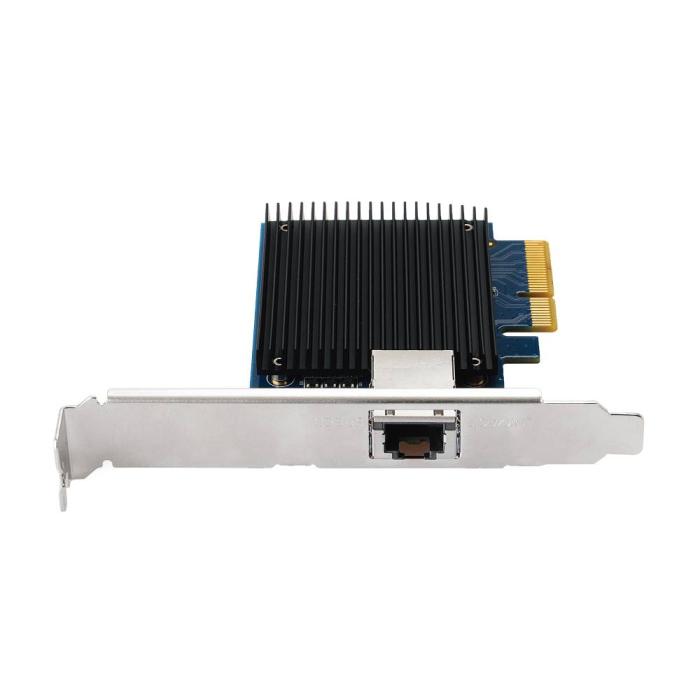

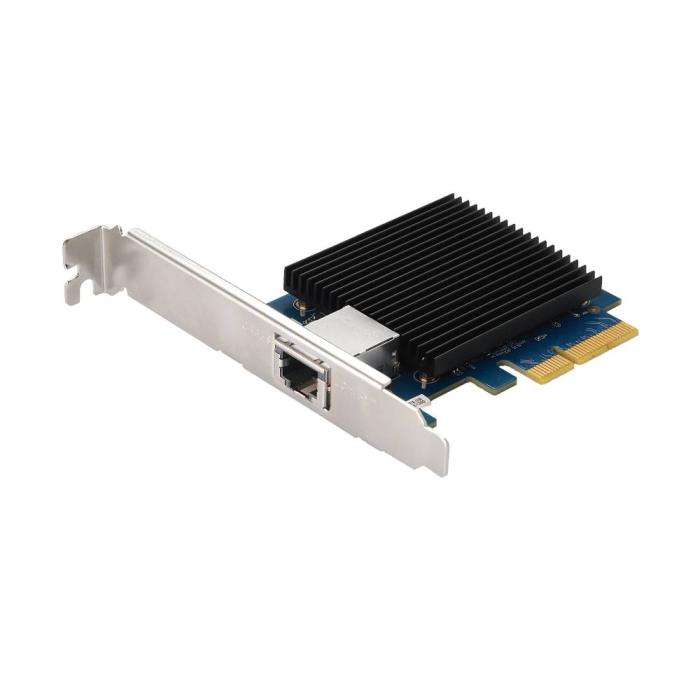

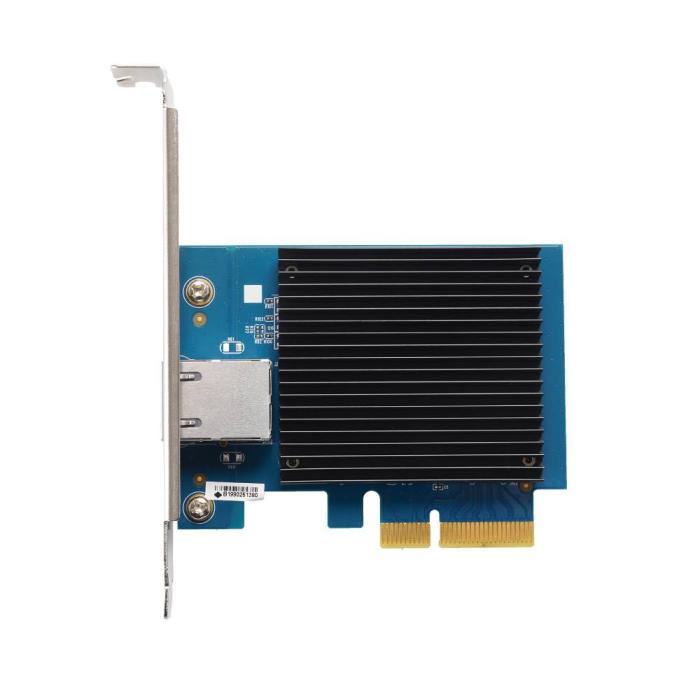

Edimax EN-9320TX-E V2 internal network card Ethernet 100 Mbit/s, with PCI Express host interface, designed for standard desktop computers. It features a wired RJ-45 Ethernet port with an interface type supporting Gigabit Ethernet and higher standards, although its maximum transfer rate is limited to 100 Mbit/s. It enables full-duplex bidirectional communication and includes LED indicators for link and speed to monitor connection status. Compatible with Windows and Linux operating systems, it includes CE and FCC certifications, and operates within a temperature range of 0 to 50 °C, with a width of 87 mm.
Specifications
Ports & interfaces
- Connectivity technology: Wired
- Host interface: PCI Express
- Interface: Ethernet
- Ethernet LAN (RJ-45) ports: 1
Network
- Maximum data transfer rate: 100 Mbit/s
- Networking standards: IEEE 1588v2, IEEE 802.1Q, IEEE 802.1Qav, IEEE 802.1p, IEEE 802.3ab, IEEE 802.3an, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u, IEEE
- Ethernet LAN: Yes
- Ethernet interface type: 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, 10 Gigabit Ethernet, Gigabit Ethernet
- Wake-on-LAN ready: Yes
- Full duplex: Yes
Design
- Component for: PC
- Internal: Yes
- LED indicators: Link, Speed
- Certification: CE, FCC
System requirements
- Windows operating systems supported: Yes
- Linux operating systems supported: Yes
Operational conditions
- Operating temperature (T-T): 0 - 50 °C
- Storage temperature (T-T): -40 - 85 °C
Weight & dimensions
- Width: 87 mm
- Depth: 67.9 mm
- Height: 1.6 mm
- Weight: 78.4 g
Packaging data
- Quantity per pack: 1 pc(s)
Logistics data
- Harmonized System (HS) code: 85176990
