Description

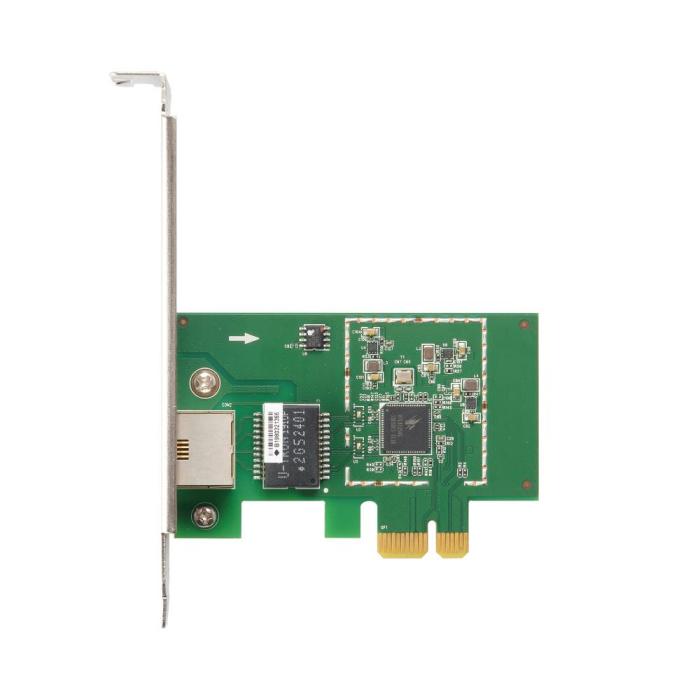

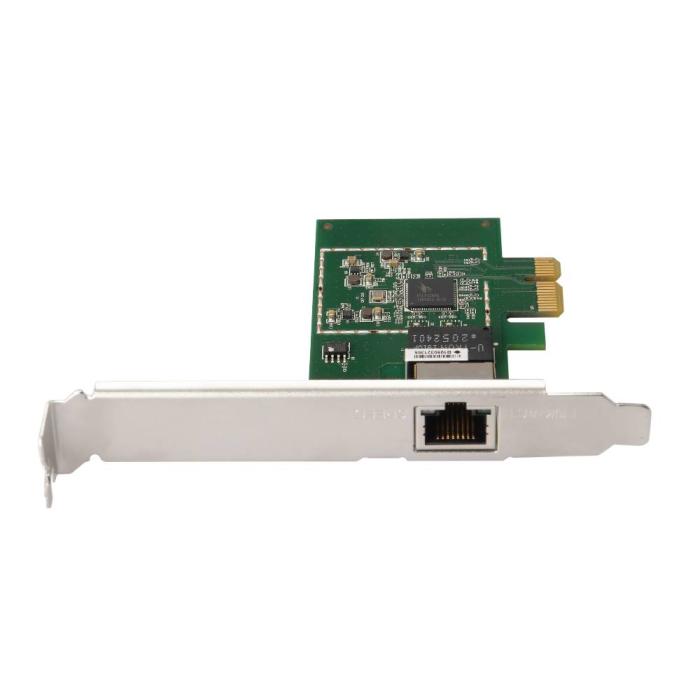

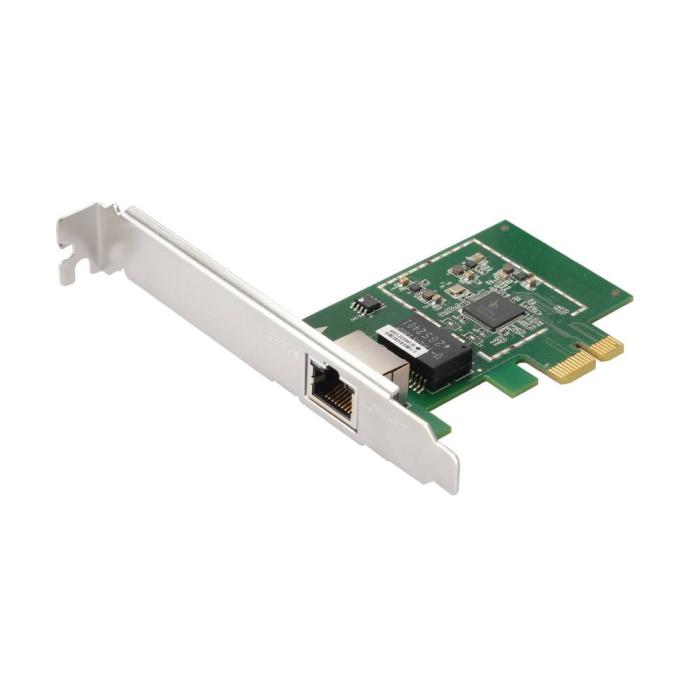

The Edimax EN-9225TX-E internal network adapter and card installs into a PCI Express slot with PCI 2.0 version to equip your PC with an RJ-45 Ethernet port capable of up to 2500 Mbit/s in full-duplex bidirectional transfer. Compatible with 100, 1000, and 2500 Mbit/s standards, this card works on both 2.5 Gigabit and Gigabit and Fast Ethernet networks, being fully supported on Windows 10, 8.1, 8, and 7 operating systems, as well as Linux. Its internal design carries CE and FCC certifications, and operates at temperatures from 0 to 50 °C, with storage between -40 and 85 °C, all in a weight of 38.8 grams. Connect your system to high-speed wired networks without hassle.
Specifications
Ports & interfaces
- Connectivity technology: Wired
- Host interface: PCI Express
- Interface: Ethernet
- Ethernet LAN (RJ-45) ports: 1
- PCI version: 2.0
Network
- Maximum data transfer rate: 2500 Mbit/s
- Networking standards: IEEE 1588v2, IEEE 802.1Q, IEEE 802.1Qav, IEEE 802.1p, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x
- Ethernet LAN: Yes
- Ethernet interface type: 2.5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
- Ethernet LAN data rates: 100, 1000, 2500 Mbit/s
- Full duplex: Yes
Design
- Component for: PC
- Internal: Yes
- Certification: CE, FCC
System requirements
- Windows operating systems supported: Windows 10, Windows 7, Windows 8, Windows 8.1
- Linux operating systems supported: Yes
Operational conditions
- Operating temperature (T-T): 0 - 50 °C
- Storage temperature (T-T): -40 - 85 °C
Weight & dimensions
- Width: 87 mm
- Depth: 54.5 mm
- Height: 1.6 mm
- Weight: 38.8 g
Packaging content
- Mounting brackets included: Yes
- Quick installation guide: Yes
Logistics data
- Harmonized System (HS) code: 85176990
