Description

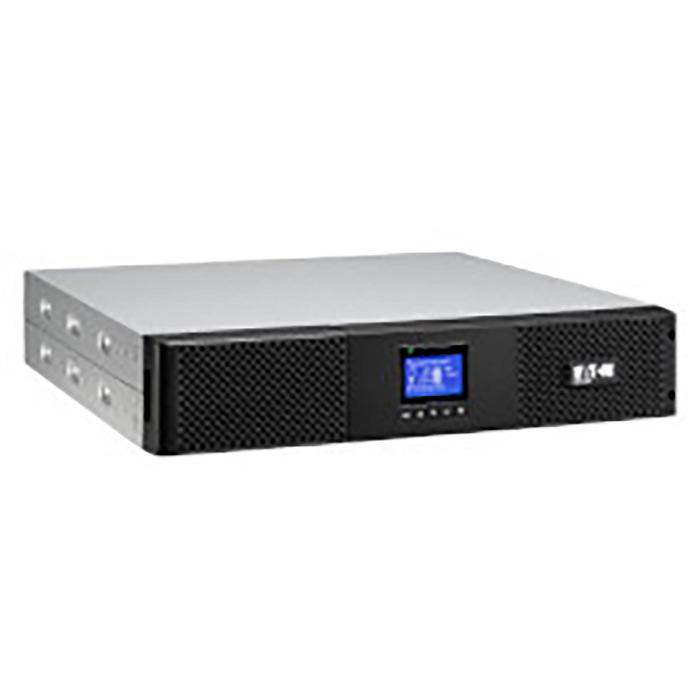

The Eaton 9SX UPS with 2 kVA and 1800 W offers double-conversion online protection for critical equipment against power cuts and fluctuations, featuring nine C13 AC outlets and a C14 input connector. It supports an input voltage range of 190 to 276 V and a frequency of 40 to 70 Hz, providing a stable 50/60 Hz output with a maximum current of 10 A. Its 2U rack design incorporates an LCD screen for status monitoring and a noise level of 45 dB, along with a USB 2.0 port and an RS-232 serial interface for remote management. This double-conversion unit ensures clean, continuous power, ideal for servers or infrastructures requiring maximum availability.
Specifications
Features
- UPS topology: Double-conversion (Online)
- Output power capacity: 2 kVA
- Output power: 1800 W
- Input operation voltage (min): 190 V
- Input operation voltage (max): 276 V
- Input frequency: 40 - 70 Hz
- Output frequency: 50/60 Hz
- Maximum current: 10 A
- Noise level: 45 dB
Ports & interfaces
- AC outlet types: C13 coupler, C14 coupler
- Power plug: C14 coupler
- AC outlets quantity: 9 AC outlet(s)
- USB port: Yes
- USB 2.0 ports quantity: 1
- Serial interface: Yes
- Serial interface type: RS-232
Design
- Form factor: Rackmount
- Rack capacity: 2U
- Product colour: Black
- Display type: LCD
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
Certificates
- Certification: IEC/EN 62040 -2 , FCC B, CISPR22 B, CE /CB report (TUV) / cULus / EAC / RCM / BIS / KCC
Safety regulation & standards
- Safety: IEC/EN 62040-1, UL 1778, CSA 22.2
Weight & dimensions
- Width: 438 mm
- Depth: 608 mm
- Height: 86.5 mm
- Weight: 26.5 kg
