Description

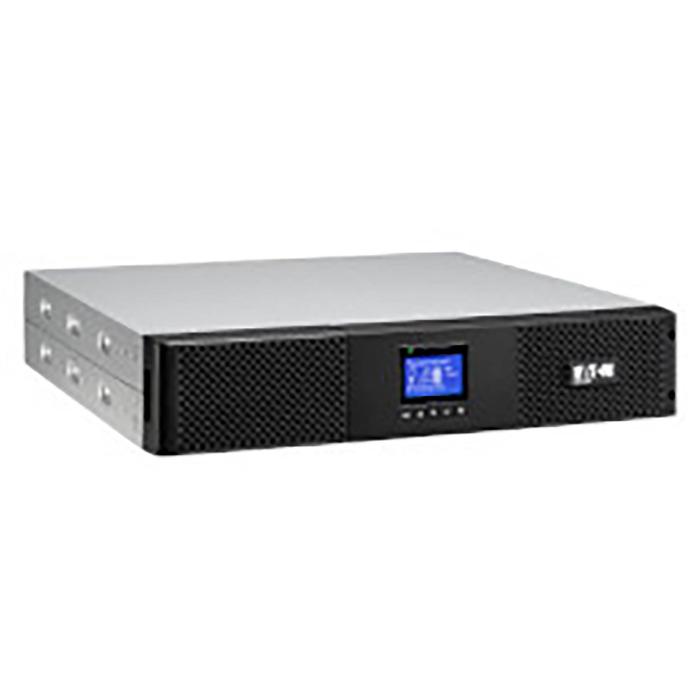

The Eaton 9SX, an online double-conversion UPS with 1 kVA and 900 W of power, offers seven AC outlets of type C13 and C14 to protect your critical equipment. With a 2U rack design in black, it supports an input voltage between 190 and 276 V and a frequency of 40 to 70 Hz, generating a stable output of 50/60 Hz. Its maximum current is 10 A and its noise level is 41 dB, making it suitable for work environments. It includes a USB 2.0 port, RS-232 interface and C14 connector to facilitate system management and monitoring.
Specifications
Features
- UPS topology: Double-conversion (Online)
- Output power capacity: 1 kVA
- Output power: 900 W
- Input operation voltage (min): 190 V
- Input operation voltage (max): 276 V
- Input frequency: 40 - 70 Hz
- Output frequency: 50/60 Hz
- Maximum current: 10 A
- Noise level: 41 dB
Ports & interfaces
- AC outlet types: C13 coupler, C14 coupler
- Power plug: C14 coupler
- AC outlets quantity: 7 AC outlet(s)
- USB port: Yes
- USB 2.0 ports quantity: 1
- Serial interface: Yes
- Serial interface type: RS-232
Design
- Form factor: Rackmount
- Rack capacity: 2U
- Product colour: Black
- Display type: LCD
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
Certificates
- Certification: IEC/EN 62040 -2 , FCC B, CISPR22 B, CE /CB report (TUV) / cULus / EAC / RCM / BIS / KCC
Safety regulation & standards
- Safety: IEC/EN 62040-1, UL 1778, CSA 22.2
Weight & dimensions
- Width: 438 mm
- Depth: 438 mm
- Height: 86.5 mm
- Weight: 15.7 kg
