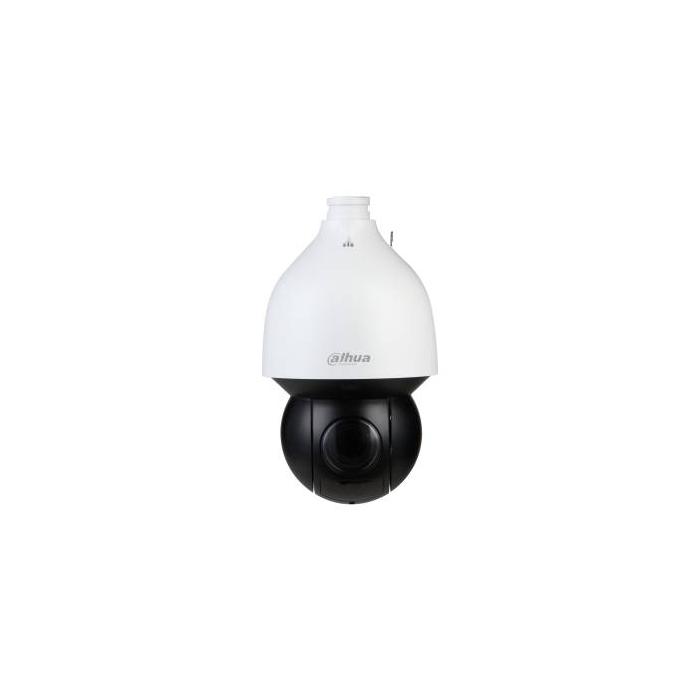

Dahua Technology WizSense DH-SD5A445GB-HNR security camera Dome IP security camera Outdoor 2560 x 1440 pixels Ceiling/wall
More info
Brand: DAHUA TECHNOLOGY
664.44 €
549.12 €
without VAT
incl. 21 % VAT
Stock available: 16 units.
Get it
on the
October 16
/
October 19
SKU:
134299
PRC:
680329
EAN:
6923172585752
Description
The Dahua Technology DH-SD5A445GB-HNR is an outdoor IP security camera with a maximum resolution of 2560 x 1440 pixels and 45x optical zoom. Its form factor is a dome and it is designed for ceiling or wall mounting. It offers night vision up to 150 m and features IP67 protection. It incorporates a 25.4 / 2.8 mm (1 / 2.8") optical sensor and 1000 MB internal memory, with compatibility with MicroSD cards up to 512 GB. The connection is wired, with an RJ-45 Ethernet LAN port and IEEE 802.3at network standards. Its preset speeds reach 300 °/s in tilt and 400 °/s in pan, with manual tilt of 0.1 to 120 °/s. It supports Pelco-P/D and DH-SD PTZ protocols, up to 20 users and multicast and unicast streaming modes.
Specifications
Performance
- Type: IP security camera
- Placement supported: Outdoor
- Connectivity technology: Wired
- PTZ control: Yes
- PTZ protocols: Pelco-P/D, DH-SD
- Auto-tracking: Yes
- Tour recording: Yes
- Preset points: Yes
- Wide Dynamic Range (WDR): Yes
- Day/night mode: Yes
- Alarm input/output: Yes
- Certification: CE: EN55032/EN55024/EN50130-4 FCC: Part15 subpartB,ANSI C63.4- 2014 UL: UL60950-1+CAN/CSA 22.2,No.60950-1
Design
- IK code: IK10
- Fog proof: Yes
- Form factor: Dome
- Mounting type: Ceiling/wall
- Product colour: White
- International Protection (IP) code: IP67
Camera
- Minimum illumination: 0.0005 lx
- Angle of rotation: 360°
- Lens viewing angle, horizontal: 1.9 - 65.7°
- Lens viewing angle, vertical: 1.1 - 39.4°
- Lens viewing angle, diagonal: 2.1 - 73.1°
- Tilt angle range: -15 - 90°
- Tilt preset speed: 300 °/sec
- Tilt manual speed: 0.1 - 120 °/sec
- Pan range: 0 - 360°
- Pan preset speed: 400 °/sec
- Pan manual speed: 0.1 - 300 °/sec
- Auto flip: Yes
- White balance: ATW, Auto, Indoor, Manual, Natural, Outdoor, Sodium lamp, Street lamp
- Camera shutter type: Electronic
- Camera shutter speed: 1/1 - 1/30000 s
Image sensor
- Optical sensor size: 25.4 / 2.8 mm (1 / 2.8")
- Progressive scan: Yes
- Sensor type: CMOS
Lens system
- Zoom capability: Yes
- Optical zoom: 45x
- Digital zoom: 16x
- Number of lenses: 1
- Detect distance: 2451.7 m
- Observe distance: 972.9 m
- Recognize distance: 490.3 m
- Focal length range: 3.95 - 177.75 mm
- Maximum aperture number: 4.95
- Identify distance: 245.2 m
- Closest focusing distance: 0.1 m
Night vision
- Night vision: Yes
- Night vision distance: 150 m
- LED type: IR
- Number of illumination LEDs: 4
Video
- Maximum resolution: 2560 x 1440 pixels
- Total megapixels: 4 MP
- Video compression formats: H.264, H.264+, H.264B, H.265, H.265+, M-JPEG
- Supported graphics resolutions: 352 x 288, 640 x 480 (VGA), 704 x 576, 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2048 x 1536 (QXGA), 2304 x 1296, 2560 x 1440
- Video streaming: Yes
- Noise reduction: Yes
- Noise reduction technology: 2D noise reduction, 3D noise reduction
- Image stabilizer: Yes
- Gain control type: Auto/Manual
- Privacy masking: Yes
- Bit rate control: Constant Bit Rate (CBR), Variable Bit Rate (VBR)
- Bit rate: H.264: 96 kbps–14848 kbps; H.265: 38 kbps–8960 kbps
- Back Light Compensation (BLC): Yes
- Highlight Compensation (HLC): Yes
- Region of Interest (ROI) encoding: Yes
- Smart IR: Yes
Audio
- Audio input channels: 1.0 channels
- Audio output channels: 1.0 channels
- Signal-to-Noise Ratio (SNR): 55 dB
- Voice codecs: G.711Mu, G.711a, G.722.1, G.723, G.726, G.729, PCM
Network
- Ethernet LAN: Yes
- Networking standards: IEEE 802.3at
- Supported network protocols: FTP; RTMP; IPv6; Bonjour; IPv4; DNS; RTCP; PPPoE; NTP; RTP; 802.1x; HTTPS; SNMP; TCP/IP; DDNS; UPnP; NFS; ICMP; UDP; IGMP; HTTP;
- Wi-Fi: No
- Bluetooth: No
- Number of users: 20 user(s)
- Quality of Service (QoS) support: Yes
- Streaming method: Multicast, Unicast
Storage
- Built-in HDD: No
- Compatible memory cards: MicroSD (TransFlash)
- Maximum memory card size: 512 GB
- Internal memory: 1000 MB
- ROM capacity: 4000 MB
Ports & interfaces
- Ethernet LAN (RJ-45) ports: 1
Security
- Alarm input channels: 2
- Alarm output channels: 1
- Video motion detection: Yes
- Active tampering alarm: Yes
- Intelligent Video Surveillance (IVS) system features: Abandoned object, Face detection, Intrusion, Missing object, Tripwire, Vehicle detection
Management features
- Web-based management: Yes
Power
- Power source type: DC, PoE
- Power consumption (typical): 10 W
- Power consumption (max): 22 W
- DC output voltage: 24
Operational conditions
- Operating temperature (T-T): -40 - 70 °C
- Operating relative humidity (H-H): 0 - 95%
System requirements
- Mobile operating systems supported: Android, iOS
Weight & dimensions
- Height: 332 mm
- Diameter: 19 cm
- Weight: 4.7 kg
Packaging data
- Package weight: 8 kg
Packaging content
- Number of cameras: 1
