Description

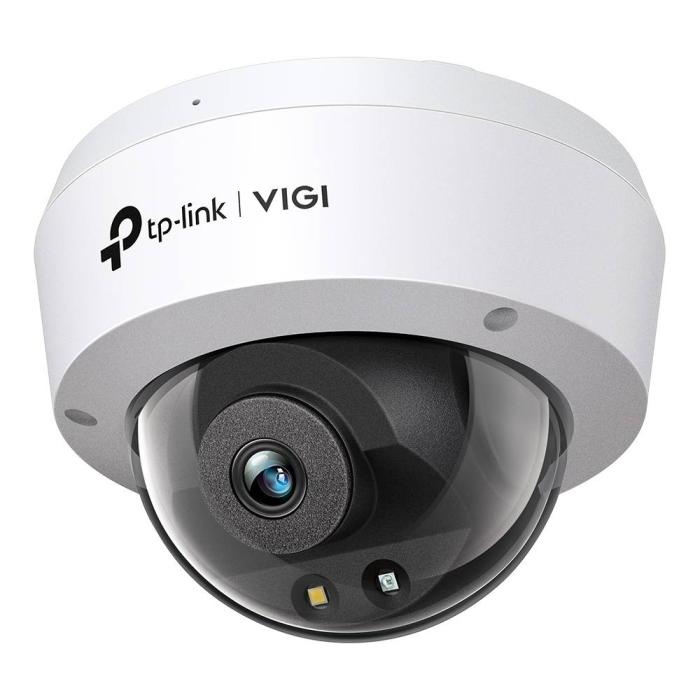

The TP-Link VIGI C230(2.8mm) dome-format IP security camera is designed for ceiling mounting and works both indoors and outdoors, with a resolution of 2304 x 1296 pixels. Its white plastic housing offers IP67 protection against dust and water, as well as impact resistance with IK10 rating. It includes day/night mode with minimum illumination of 0 lx and remote pan and tilt control, with a pan range of 0 to 360° and a tilt angle of 0 to 85°. The fixed 2.8 mm lens provides a diagonal field of view of 128.7° and a horizontal one of 107.5°, while its connection is fully wired.
Specifications
Performance
- Type: IP security camera
- Placement supported: Indoor & outdoor
- Connectivity technology: Wired
- Day/night mode: Yes
Design
- Form factor: Dome
- Mounting type: Ceiling
- Product colour: White
- Housing material: Plastic
- International Protection (IP) code: IP67
- IK code: IK10
Camera
- Camera pan control: Yes
- Camera tilt control: Yes
- Minimum illumination: 0 lx
- Angle of rotation: 360°
- Lens viewing angle, horizontal: 107.5°
- Lens viewing angle, vertical: 57.2°
- Lens viewing angle, diagonal: 128.7°
- Tilt angle range: 0 - 85°
- Pan range: 0 - 360°
Image sensor
- Optical sensor size: 25.4 / 2.8 mm (1 / 2.8")
- Sensor type: CMOS
Lens system
- Fixed focal length: 2.8 mm
Night vision
- Night vision: Yes
- Night vision distance: 30 m
- LED type: IR
- Number of illumination LEDs: 1
- Infra-red wavelength: 850 nm
Video
- Maximum resolution: 2304 x 1296 pixels
- Total megapixels: 3 MP
- Video compression formats: H.264, H.264+, H.265, H.265+
- Supported graphics resolutions: 320 x 240, 352 x 288, 640 x 480 (VGA), 704 x 576, 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2048 x 1280, 2304 x 1296
- Video streaming: Yes
- Noise reduction: Yes
- Noise reduction technology: 3D noise reduction
- Image quality adjustment: Brightness, Contrast, Mirror, Saturation, Sharpness
- Privacy masking: Yes
- Back Light Compensation (BLC): Yes
- Highlight Compensation (HLC): Yes
- Digital Wide Dynamic Range (DWDR): Yes
- Smart IR: Yes
Audio
- Built-in microphone: Yes
Network
- Ethernet LAN: Yes
- Ethernet interface type: Fast Ethernet
- Supported network protocols: TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
- Wi-Fi: No
- Bluetooth: No
Storage
- Built-in HDD: No
Security
- Password protection: Yes
- Video motion detection: Yes
- Active tampering alarm: Yes
- IP address filtering: Yes
- HTTPS encryption: Yes
- Mirror: Yes
- Password reset via email: Yes
Power
- Power source type: DC
- Power consumption (max): 4.7 W
- DC output voltage: 12
Operational conditions
- Operating temperature (T-T): -30 - 60 °C
Weight & dimensions
- Width: 115 mm
- Depth: 86 mm
- Height: 115 mm
Packaging content
- Number of cameras: 1
