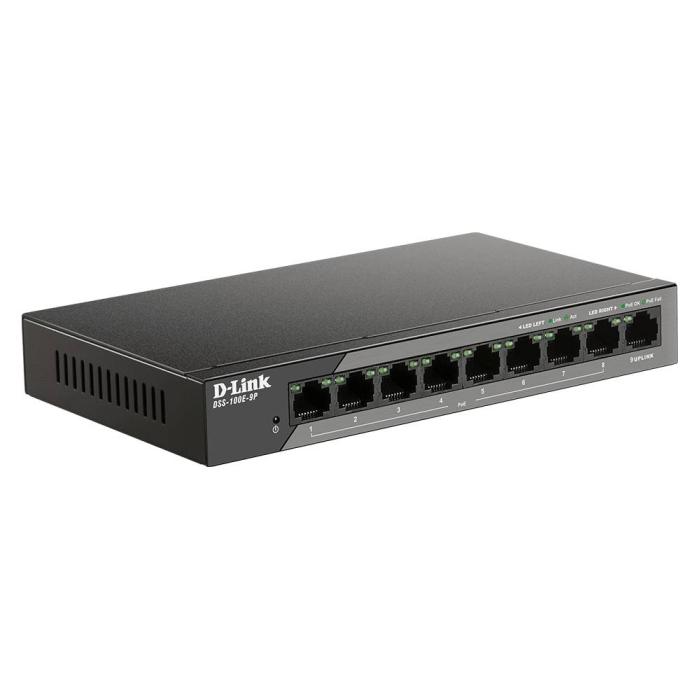

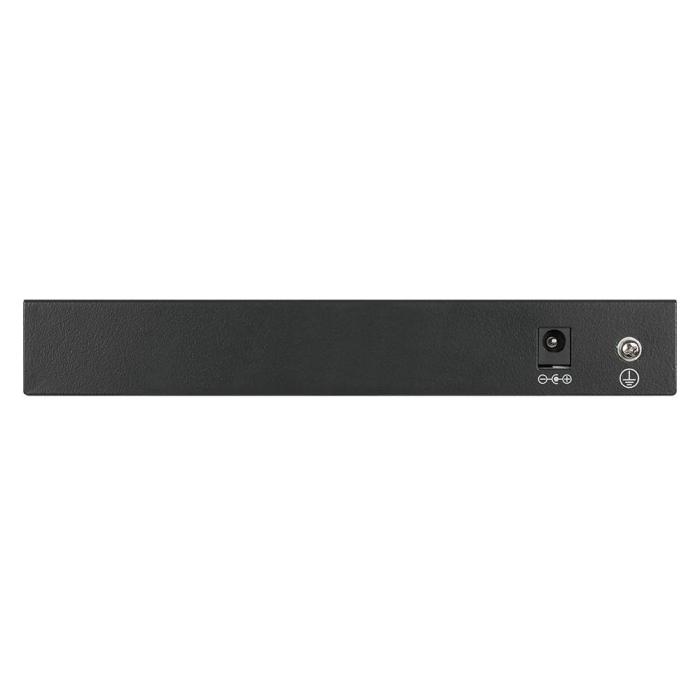

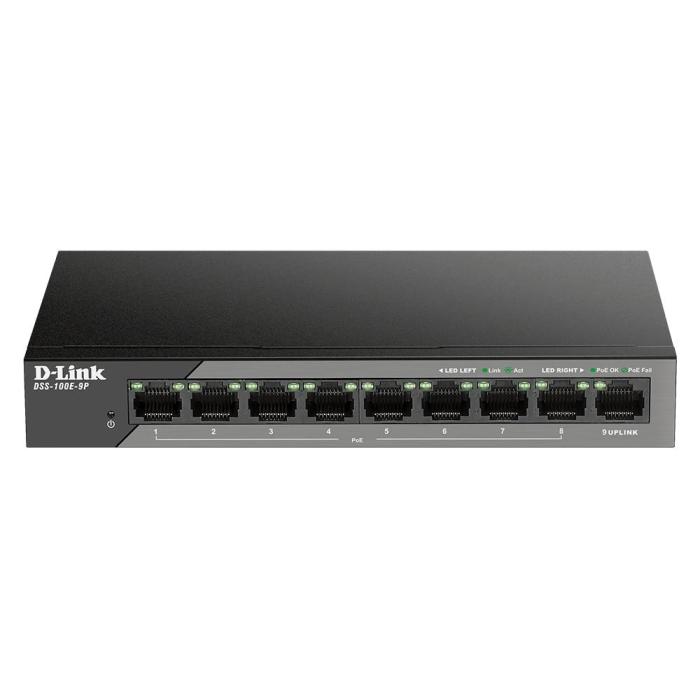

D-Link DSS-100E-9P network switch Unmanaged Fast Ethernet (10/100) Power over Ethernet (PoE) Black

Not avaliable

D-Link DSS-100E-9P network switch Unmanaged Fast Ethernet (10/100) Power over Ethernet (PoE) Black.   More info

Brand: D-LINK
SKU: 85942 PRC: 299133 EAN: 790069451089 PN: DSS-100E-9P

Description

Specifications

Management features

  • Switch type: Unmanaged

Ports & interfaces

  • Basic switching RJ-45 Ethernet ports quantity: 8
  • Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100)
  • Gigabit Ethernet (copper) ports quantity: 1

Network

  • Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
  • 10G support: No
  • Auto MDI/MDI-X: Yes

Data transmission

  • Switching capacity: 1.8 Gbit/s
  • Forwarding rate: 2.67 Mpps
  • MAC address table: 2000 entries
  • Store-and-forward: Yes
  • Packet forwarding rate (100 Mbps): 148800 pps
  • Packet forwarding rate (10 Mbps): 14880 pps
  • Packet buffer memory: 0.128 MB

Design

  • Rack mounting: No
  • Product colour: Black
  • LED indicators: Activity, Link, PoE, Power, Speed

Performance

  • Noise level: 0 dB
  • Mean time between failures (MTBF): 52308 h

Power

  • Power supply included: Yes
  • Power consumption (max): 102 W

Power over Ethernet (PoE)

  • Power over Ethernet (PoE): Yes
  • Power over Ethernet plus (PoE+) ports quantity: 8
  • Power over Ethernet (PoE) power per port: 30 W
  • Total Power over Ethernet (PoE) budget: 92 W

Operational conditions

  • Operating temperature (T-T): 0 - 40 °C
  • Storage temperature (T-T): -10 - 70 °C
  • Operating relative humidity (H-H): 0 - 95%
  • Storage relative humidity (H-H): 0 - 95%
  • Heat dissipation: 486.7 BTU/h

Weight & dimensions

  • Width: 177 mm
  • Depth: 104 mm
  • Height: 26 mm
  • Weight: 410 g

Packaging content

  • User guide: Yes

Certificates

  • Certification: CE, RoHS

Logistics data

  • Harmonized System (HS) code: 85176990
