Description

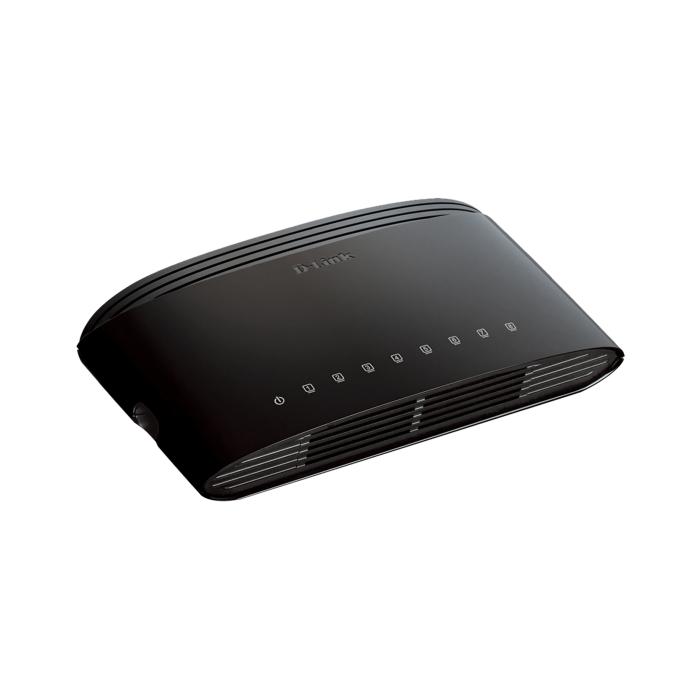

The D-Link DES-1008D switch is an unmanaged device with eight RJ-45 Fast Ethernet (10/100) ports. It features a DC input power socket connector and offers a switching capacity of 1 Gbit/s with a maximum data transfer rate of 100 Mbit/s. Its MAC address table supports 1024 entries, and it is compatible with the IEEE 802.3 and IEEE 802.3x network standards. It includes functions such as Auto MDI/MDI-X, full duplex mode and flow control, as well as working with 100BASE-TX and 10BASE-T copper ethernet cabling. It has a mean time between failures of 116186 hours and features LED indicators to show the connection status. Its black colour design allows it to be easily integrated into different working environments.
Specifications
Management features
- Switch type: Unmanaged
Ports & interfaces

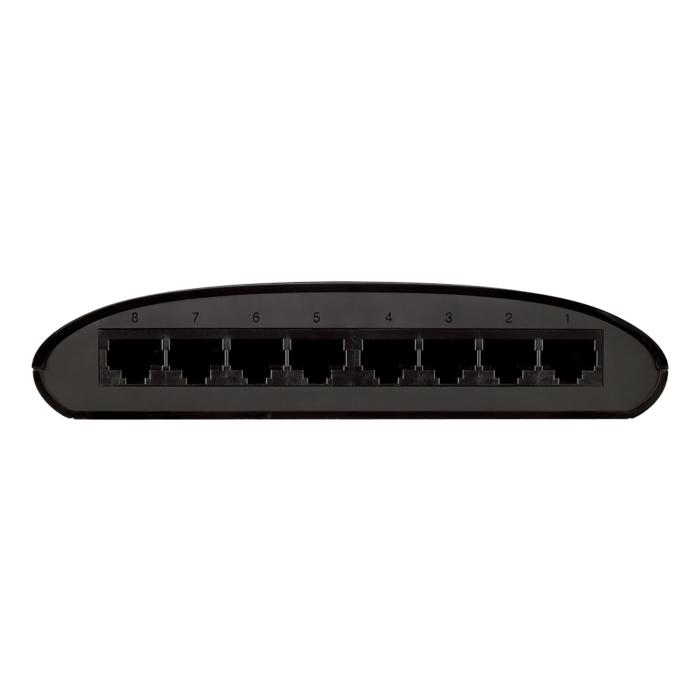

- Basic switching RJ-45 Ethernet ports quantity: 8
- Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100)
- Power connector: DC-in jack
Network
- Networking standards: IEEE 802.3, IEEE 802.3x
- 10G support: No
- Copper ethernet cabling technology: 100BASE-TX, 10BASE-T
- Full duplex: Yes
- Flow control support: Yes
- Auto MDI/MDI-X: Yes
Data transmission
- Switching capacity: 1 Gbit/s
- MAC address table: 1024 entries
Design
- Rack mounting: No
- Stackable: No
- Product colour: Black

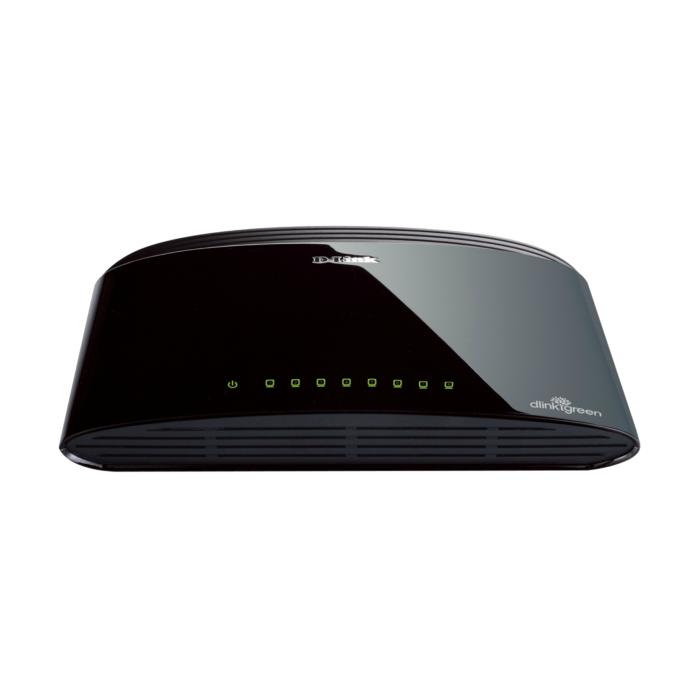

- LED indicators: Yes
Performance
- Maximum data transfer rate: 100 Mbit/s
- Mean time between failures (MTBF): 116186 h
Power
- Input current: 1 A
- Output voltage: 5 V
Power over Ethernet (PoE)
- Power over Ethernet (PoE): No
Packaging data
- Package width: 104 mm
- Package depth: 158 mm
- Package height: 94 mm
- Package weight: 310 g
Technical details
- Shipping (inner) case height: 35 cm
- Shipping (inner) case width: 21.1 cm
- Shipping (inner) case length: 54.3 cm
- Shipping (inner) case net weight: 3.96 kg
- Products per shipping (inner) case: 20 pc(s)
- Pallet gross weight (air): 330.5 kg
- Master (outer) cases per pallet (air): 50 pc(s)
- Products per pallet (air): 1000 pc(s)
- Pallet gross length: 110 cm
- Pallet gross width: 120 cm
- Pallet height (air): 188.5 cm
- Pallet gross weight (sea): 330.5 kg
- Master (outer) cases per pallet (sea): 50 pc(s)
- Products per pallet (sea): 1000 pc(s)
- Pallet height (sea): 188.5 cm
- Shipping (inner) case gross weight: 6.23 kg
Logistics data
- Harmonized System (HS) code: 85176990
