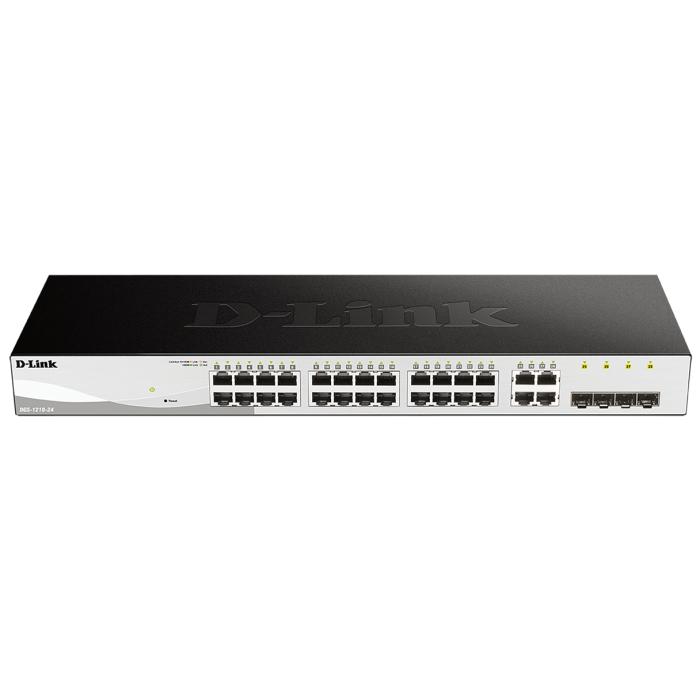

Name: D-Link 24-Port Gigabit Smart Managed Switch including 4 SFP ports
Brand: D-LINK
Availability: OutOfStock

D-Link 24-Port Gigabit Smart Managed Switch including 4 SFP ports

Not avaliable

D-Link 24-Port Gigabit Smart Managed Switch including 4 SFP ports. More info

Amount

Brand: D-LINK

SKU: 71182 PRC: 4616 EAN: 790069332302 PN: DGS-1210-24

Description

Specifications

Management features

Switch type: Managed
Switch layer: L2
Quality of Service (QoS) support: Yes
Web-based management: Yes
ARP inspection: Yes
Configuring Location Settings (CLI): Yes
System event log: Yes
MIB support: Yes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 24
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Combo SFP ports quantity: 4
Power connector: AC-in jack

Network

Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-T
Port mirroring: Yes
Full duplex: Yes
Flow control support: Yes
Link aggregation: Yes
Broadcast storm control: Yes
Auto MDI/MDI-X: Yes
Spanning tree protocol: Yes
Head-of-line (HOL) blocking: Yes
Auto-negotiation: Yes
VLAN support: Yes
Number of VLANs: 256

Data transmission

Switching capacity: 56 Gbit/s
Forwarding rate: 41.7 Mpps
MAC address table: 8000 entries
Store-and-forward: Yes
Jumbo frames support: Yes
Jumbo frames: 10000
Packet buffer memory: 4.1 MB

Security

DHCP features: DHCP server, DHCP client
Access Control List (ACL): Yes
IGMP snooping: Yes
MAC address filtering: Yes
Loop protection: Yes

Multicast features

Multicast support: Yes

Design

Rack mounting: Yes
Stackable: Yes
Form factor: 1U
Product colour: Black
LED indicators: Yes

Performance

Memory type: DDR3-SDRAM
Internal memory: 128 MB
Flash memory: 32 MB
Noise level: 0 dB
Mean time between failures (MTBF): 992594 h

Power

Power source: AC
Power supply included: Yes
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Power consumption (max): 17.32 W

Power over Ethernet (PoE)

Power over Ethernet (PoE): No

Operational conditions

Operating temperature (T-T): -5 - 50 °C
Storage temperature (T-T): -20 - 70 °C
Operating relative humidity (H-H): 0 - 95%
Storage relative humidity (H-H): 0 - 95%
Heat dissipation: 59.09 BTU/h

Weight & dimensions

Width: 440 mm
Depth: 140 mm
Height: 44 mm
Weight: 2.15 kg
