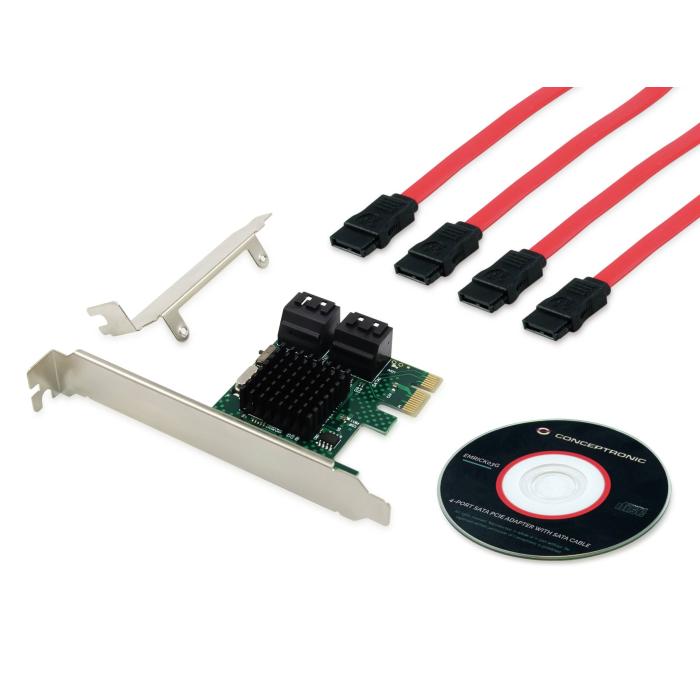

Conceptronic EMRICK 4-Port SATA PCIe Adapter with SATA Cable
More info
Brand: CONCEPTRONIC
35.28 €
29.16 €
without VAT
incl. 21 % VAT
Stock available: 1 ud.
Get it
on the
October 14
/
October 15
SKU:
85045
PRC:
291953
EAN:
4015867221976
PN:
EMRICK03G
Description

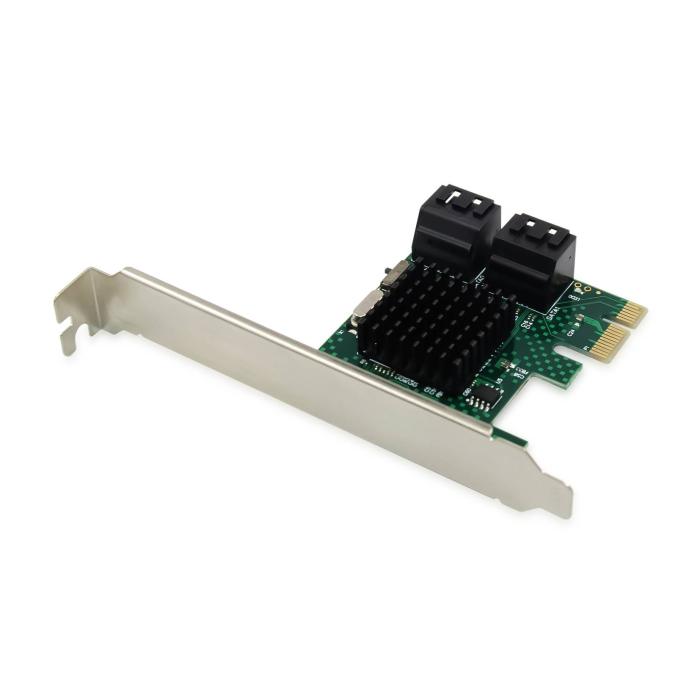

The Conceptronic EMRICK03G card expands your equipment with four internal SATA ports through a PCIe host interface and a PCIe 2.0 expansion card standard, so you can connect several drives inside the case. Its SATA output interface reaches SATA 3.0 revision with a maximum data transfer rate of 6 Gbit/s, and the ASMedia1061 chipset handles traffic management. It includes a port multiplier and Native Command Queuing NCQ, features that help organise read and write operations when several drives are working at the same time. As it is an internal card, it is installed inside the chassis, and supports hot-swap and hot-plug to change drives without turning off the system. It is compatible with Linux operating systems. The card measures 43 x 18 x 65 mm (width x height x depth) and weighs 41 g, so it barely adds any volume to the setup.
Specifications
Ports & interfaces
- Host interface: PCIe
- Output interface: SATA
- Expansion card standard: PCIe 2.0
- SATA revision: 3.0
- Internal SATA ports quantity: 4
- Port multiplier: Yes
Design
- Internal: Yes
- Hot-swap: Yes
- Hot-Plug support: Yes
- Country of origin: China
Features
- Chipset: ASMedia1061
- Data transfer rate (max): 6 Gbit/s
- Native Command Queuing (NCQ): Yes
System requirements
- Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, W
- Linux operating systems supported: Yes
Weight & dimensions
- Width: 43 mm
- Depth: 65 mm
- Height: 18 mm
- Weight: 41 g
Packaging data
- Cables included: SATA
- Mounting brackets included: Yes
- Quick installation guide: Yes
- Package width: 132 mm
- Package depth: 156 mm
- Package height: 26 mm
- Package weight: 120 g
- Package type: Box
Logistics data
- Products per master (outer) case: 30 pc(s)
- Master (outer) case width: 280 mm
- Master (outer) case length: 180 mm
- Master (outer) case height: 415 mm
- Master (outer) case gross weight: 4 kg
