Conceptronic EMRICK 2-Port USB 3.2 Gen 2 Type-C PCIe Card
More info
Brand: CONCEPTRONIC
28.42 €
23.49 €
without VAT
incl. 21 % VAT
Stock available: 3 units.
Get it
on the
October 16
/
October 19
SKU:
96099
PRC:
394199
EAN:
4015867227985
PN:
EMRICK07G
Description

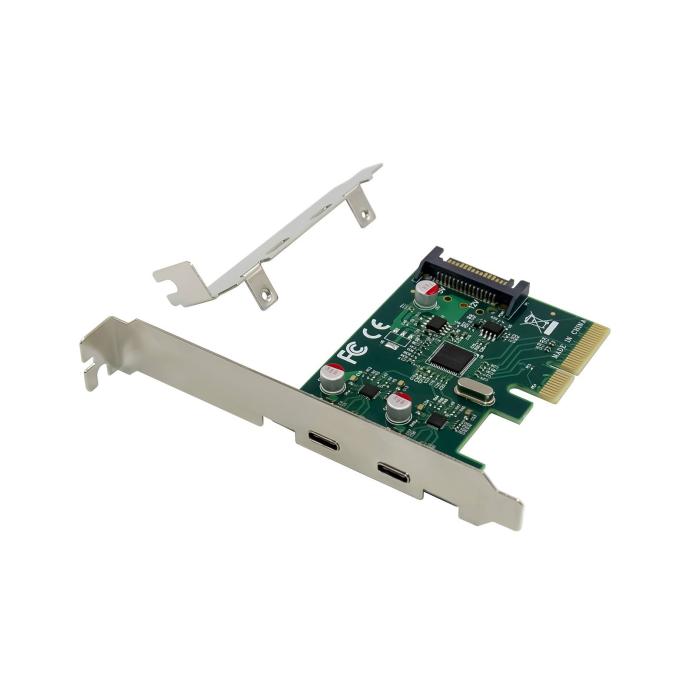

The Conceptronic EMRICK07G card is an internal green adapter that adds two USB Type-C ports with USB 3.2 Gen 2 interface to a PC. It is installed in a PCIe slot via PCIe host interface and follows the PCI 2.0 expansion card standard. It reaches a maximum data transfer rate of 10 Gbit/s and supports UASP, with an ASM1142 chipset. It incorporates an internal SATA port and a 15-pin SATA power connector, and features hot-swap function. It is compatible with Linux. Its dimensions are 58 x 20 x 80 mm (width x height x depth) and its weight is 32 g.
Specifications
Ports & interfaces
- Host interface: PCIe
- Output interface: USB 3.2 Gen 2 (3.1 Gen 2)
- Expansion card standard: PCI 2.0
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 2
- Internal SATA ports quantity: 1
- SATA power connector type: SATA 15-pin
Design
- Internal: Yes
- Product colour: Green
- Purpose: PC
- Hot-swap: Yes
- Country of origin: China
Features
- Chipset: ASM1142
- Data transfer rate (max): 10 Gbit/s
- UASP support: Yes
System requirements
- Windows operating systems supported: Windows 7 Ultimate x64, Windows 10, Windows 7 x64, Windows 10 Education, Windows 8, Windows 10 Education x64, Windows 7, Windows
- Linux operating systems supported: Yes
Weight & dimensions
- Width: 58 mm
- Depth: 80 mm
- Height: 20 mm
- Weight: 32 g
Packaging data
- Mounting brackets included: Yes
- Drivers included: Yes
- Quick installation guide: Yes
- Package width: 125 mm
- Package depth: 175 mm
- Package height: 30 mm
- Package weight: 90 g
- Package type: Box
Logistics data
- Harmonized System (HS) code: 84733020
- Products per master (outer) case: 30 pc(s)
- Master (outer) case width: 340 mm
- Master (outer) case length: 205 mm
- Master (outer) case height: 405 mm
- Master (outer) case gross weight: 2.7 kg
