Conceptronic EMRICK 2-in-1 M.2 SSD PCIe Adapter SATA AHCI NVMe
More info
Brand: CONCEPTRONIC
19.60 €
16.20 €
without VAT
incl. 21 % VAT
Stock available: 3 units.
Get it
on the
October 16
/
October 19
SKU:
85044
PRC:
291952
EAN:
4015867223666
PN:
EMRICK04B
Description

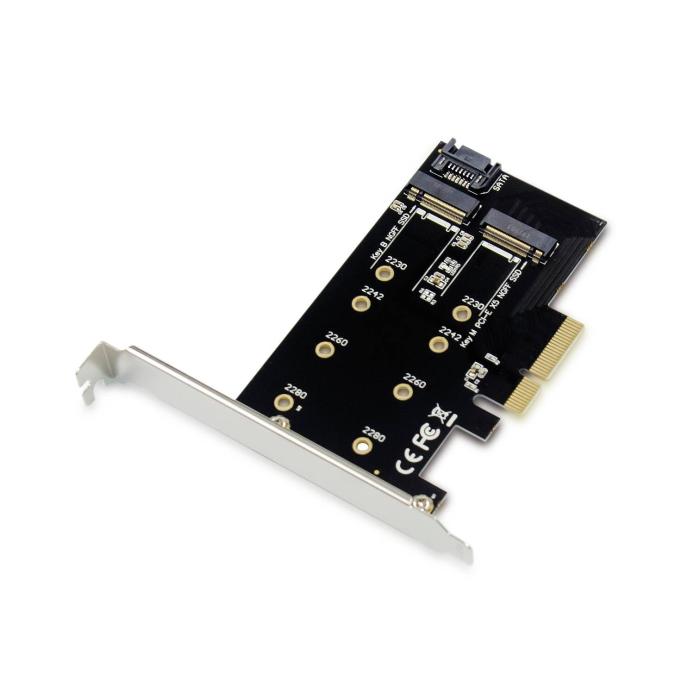

The Conceptronic EMRICK04B card is an internal adapter that converts a PCIe slot into a connection for M.2 and SATA drives. It incorporates the JMB585 chipset and offers a maximum data transfer rate of 6 Gbit/s, with a PCIe host interface and M.2 output. It features one M.2 (B) slot, one M.2 (M) slot and one internal SATA port, with SATA 3.0 revision and PCIe 3.0 expansion card standard. Its cooling type is passive and it supports plug and play, as well as being compatible with Linux operating systems. It is an internal component measuring 70 x 18 x 114 mm (width x height x depth) and weighing 42 g.
Specifications
Ports & interfaces
- Host interface: PCIe
- Output interface: M.2
- Expansion card standard: PCIe 3.0
- SATA revision: 3.0
- Internal SATA ports quantity: 1
- Number of M.2 (M) slots: 1
- Number of M.2 (B) slots: 1
Design
- Internal: Yes
- Cooling type: Passive
- Country of origin: China
Features
- Chipset: JMB585
- Data transfer rate (max): 6 Gbit/s
- Plug and Play: Yes
System requirements
- Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, W
- Linux operating systems supported: Yes
Weight & dimensions
- Width: 70 mm
- Depth: 114 mm
- Height: 18 mm
- Weight: 42 g
Packaging data

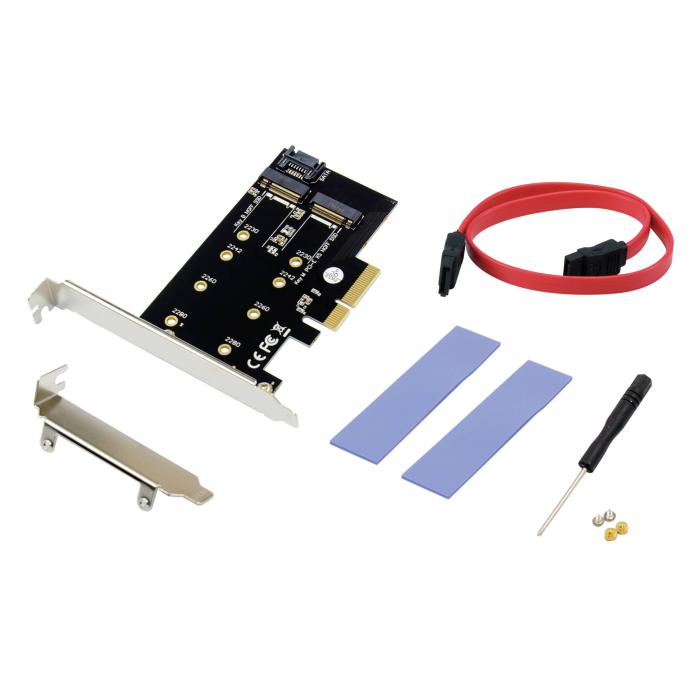

- Cables included: SATA
- Mounting brackets included: Yes
- Screws included: Yes
- Quick installation guide: Yes
- Package width: 132 mm
- Package depth: 156 mm
- Package height: 26 mm
- Package weight: 100 g
Logistics data
- Harmonized System (HS) code: 84733020
- Products per master (outer) case: 30 pc(s)
- Master (outer) case width: 280 mm
- Master (outer) case length: 180 mm
- Master (outer) case height: 415 mm
- Master (outer) case gross weight: 3.6 kg
