be quiet! TFX POWER 3 300W Bronze power supply unit 20+4 pin ATX Black

Return

Product 1 image

Product 2 image

Product 3 image

Product 4 image

Product 5 image

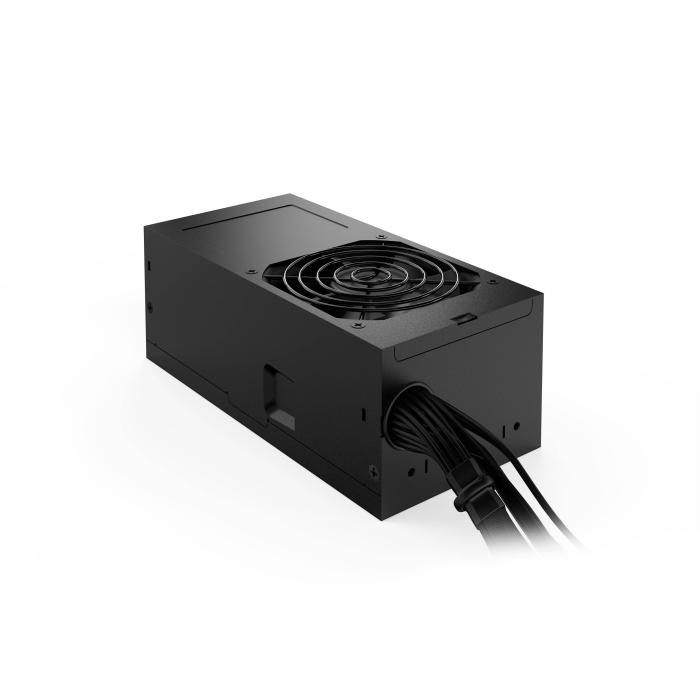

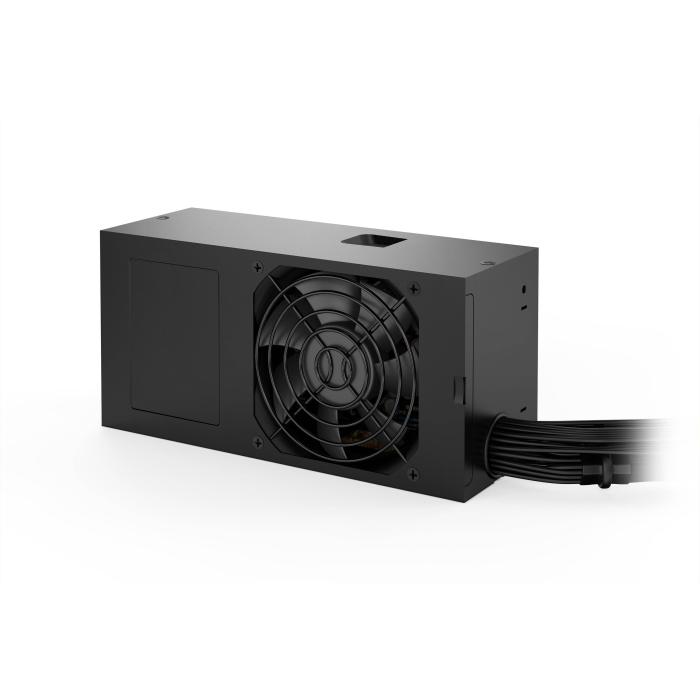

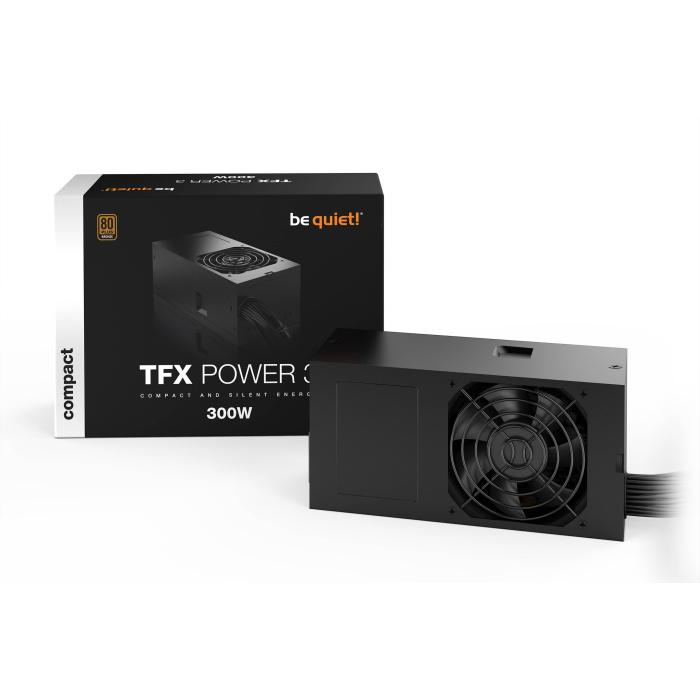

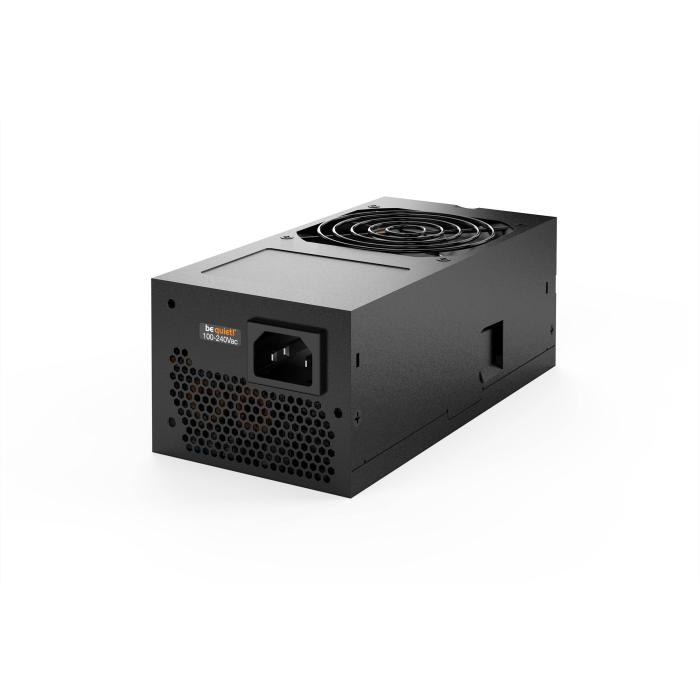

be quiet! TFX POWER 3 300W Bronze power supply unit 20+4 pin ATX Black

Not avaliable

be quiet! TFX POWER 3 300W Bronze, 300 W, 100 - 240 V, 350 W, 50/60 Hz, 4/1.5 A, 4 A. More info

Amount

Brand: BE QUIET!

SKU: 87418 PRC: 312705 EAN: 4260052188286 PN: BN322

Description

be quiet! TFX POWER 3 300W Bronze, 300 W, 100 - 240 V, 350 W, 50/60 Hz, 4/1.5 A, 4 A

Specifications

Power

Total power: 300 W
Peak power: 350 W
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Input current: 4/1.5 A
Maximum input current (@110V): 4 A
Maximum input current (@220V): 1.5 A
Power factor: 0.96
Power Factor Correction (PFC) type: Active
Combined power (+3.3V): 85 W
Combined power (+12V): 300 W
Combined power (+5V): 85 W
Max output current (+3.3V): 16 A
Max output current (+12V1): 25 A
Max output current (+5V): 16 A
Max output current (-12V): 0.3 A
Max output current (+5Vsb): 2.5 A
Hold time: 22 ms
Efficiency: 86.4%
Power protection features: Over current, Over power, Over voltage, Short circuit, Under voltage

Ports & interfaces

Motherboard power connector: 20+4 pin ATX
Motherboard power cable length: 35 cm
Number of SATA power connectors: 3
SATA power cable length: 300,450,600 mm
Peripheral (Molex) power connectors (4-pin): 2
Peripheral (Molex) power cable length: 300,450 mm
PCI Express power connectors (6+2 pin): 1
PCI Express power cable length: 40 cm
CPU P4 connector (4-pin): 1
CPU power cable length: 35 cm
Floppy drive power connector: 1
Floppy disk drive cable length: 60 cm
Cabling type: Non-Modular

Performance

80 PLUS certification: 80 PLUS Bronze
Purpose: PC
Power supply unit (PSU) form factor: TFX
ATX version: 2.52
EPS version: 2.92

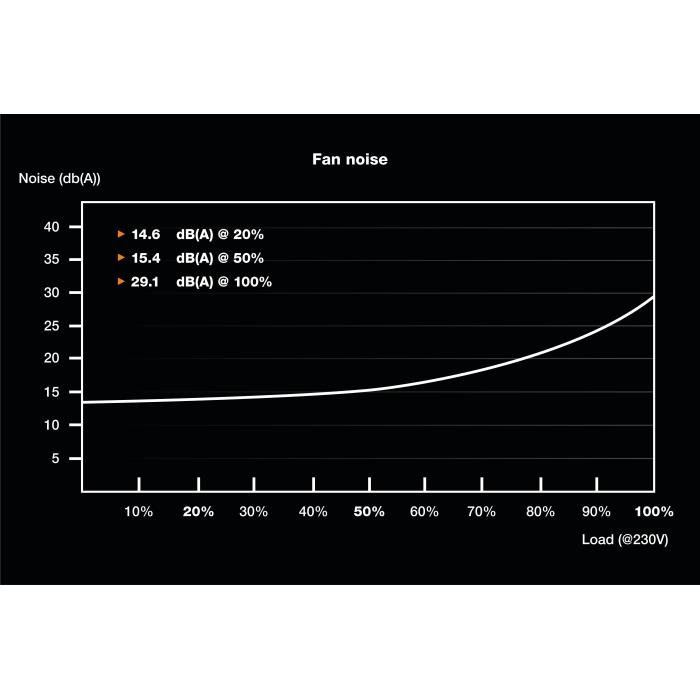

Noise level: 29.1 dB
Bearing technology: Rifle
Mean time between failures (MTBF): 100000 h
Safety: CE, CB, TÜV, CU

Design

Product colour: Black
Cooling type: Active
Fan diameter: 8 cm
Number of fans: 1 fan(s)

Weight & dimensions

Width: 85 mm
Depth: 175 mm
Height: 65 mm
Weight: 900 g

Packaging data

Package width: 159 mm
Package depth: 80 mm
Package height: 215 mm
Package weight: 1.24 kg
Package type: Box

Technical details

Sustainability compliance: Yes
Sustainability certificates: ENERGY STAR, ErP, RoHS, WEEE

Logistics data

Shipping (inner) case length: 47.4 cm
Shipping (inner) case width: 27.5 cm
Shipping (inner) case height: 19.5 cm
Shipping (inner) case gross weight: 8.25 kg
Quantity per shipping (inner) case: 6 pc(s)
