Description
The be quiet! Dark Power Pro 14 IO is a 1600 W ATX power supply unit with a 20+4 pin ATX connection and 80 PLUS Titanium certification. The model reaches a maximum power of 1700 W and supports an input voltage of 100 to 240 V at 50/60 Hz. It features a 13.5 cm fan that spins between 0 and 2600 RPM. Its motherboard power cable measures 60 cm and offers 16 SATA power connectors spread across 5 cables, with lengths of 600, 750, 900 and 1050 mm. The power supply unit follows the ATX 3.1 and EPS 2.92 versions, with a maximum input current of 15 A at 110 V, and comes in black. Its dimensions are 150 mm wide, 200 mm deep and 86 mm high, with a weight of 2.63 kg.
Specifications
Power
- Total power: 1600 W
- Peak power: 1700 W
- AC input voltage: 100 - 240 V
- AC input frequency: 50/60 Hz
- Maximum input current (@110V): 15 A
- Maximum input current (@220V): 9 A
- Power factor: 0.98
- Power Factor Correction (PFC) type: Active
- Number of +12V rail(s): 6
- Combined power (+3.3V): 150 W
- Combined power (+12V): 1600 W
- Combined power (+5V): 150 W
- Combined power (-12V): 6 W
- Combined power (+5Vsb): 17.5 W
- Max output current (+3.3V): 25 A
- Max output current (+12V1): 40 A
- Max output current (+12V2): 40 A
- Max output current (+12V3): 45 A
- Max output current (+12V4): 45 A
- Max output current (+5V): 25 A
- Max output current (-12V): 0.5 A
- Max output current (+5Vsb): 3.5 A
- Hold time: 14.5 ms
- Efficiency: 93.4%
- Power protection features: Over current, Over voltage, Overheating, Short circuit, Surge & inrush protection (SIP), Under voltage, Over power

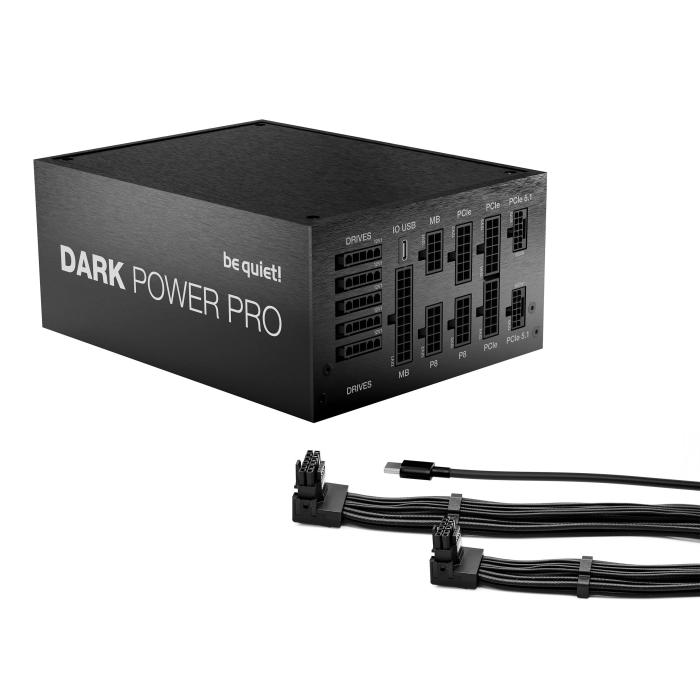

Ports & interfaces
- Motherboard power connector: 20+4 pin ATX
- Motherboard power cable length: 60 cm
- Number of SATA power connectors: 16
- SATA power cable length: 600, 750, 900, 1050 mm
- Number of SATA power cables: 5
- Peripheral (Molex) power connectors (4-pin): 2
- Peripheral (Molex) power cable length: 900, 1050 mm
- EPS power connector (8-pin): Yes
- EPS power connector (4+4 pin): Yes
- PCI Express power connectors (6+2 pin): 6
- PCI Express power connectors (12-pin): 2
- PCI Express power cable length: 60 cm
- CPU power connector (4+4 pin): Yes
- CPU power cable length: 70 cm
- ATX power connector (20+4 pin): Yes
- PCI Express connector: Yes

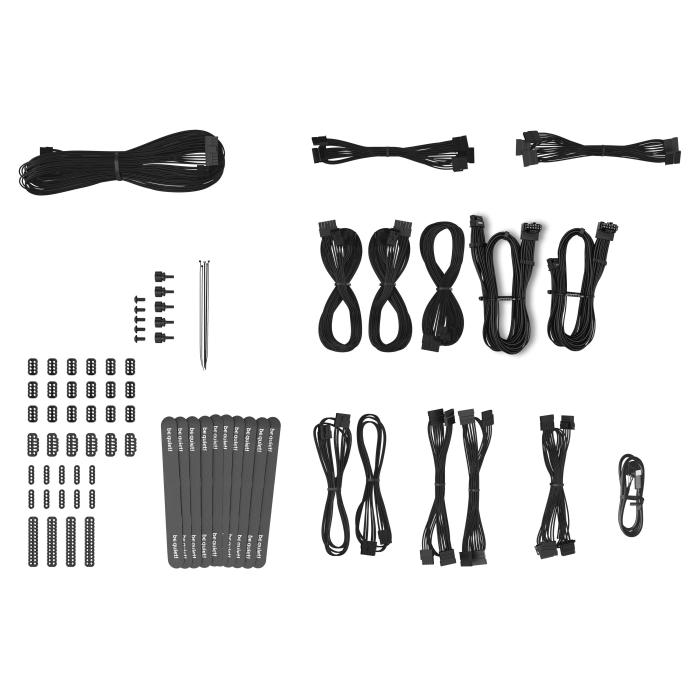

- Cabling type: Fully-Modular
Performance
- 80 PLUS certification: 80 PLUS Titanium
- Cybenetics certification: Titanium
- Purpose: PC
- Power supply unit (PSU) form factor: ATX
- ATX version: 3.1
- EPS version: 2.92
- Noise level: 29.1 dB
- Bearing technology: FDB
- Mean time between failures (MTBF): 100000 h
Design
- Product colour: Black
- Cooling type: Active

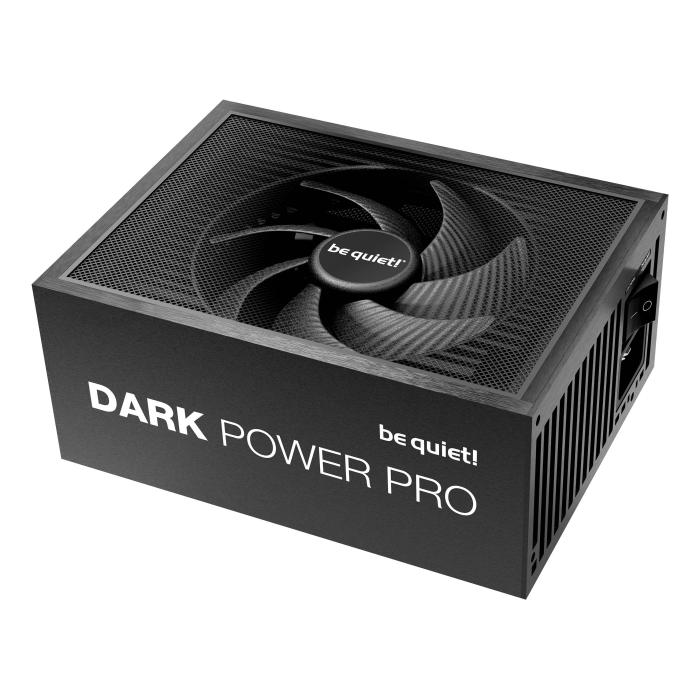

- Fan diameter: 13.5 cm
- Number of fans: 1 fan(s)
- Fan speed: 0 - 2600 RPM
- Illumination: No
- On/off switch: Yes
- On/off fan switch: Yes
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
Packaging content
- Cable tie(s) included: Yes
- USB cable length: 0.8 m
Certificates
- Compliance certificates: CB, Federal Communications Commission (FCC), RoHS, TÜV mark, UKCA, WEEE, cTUVus, BSMI, CCC, CE, RCM
Weight & dimensions
- Width: 150 mm
- Depth: 200 mm
- Height: 86 mm
- Weight: 2.63 kg
Packaging data
- Manual: Yes
- Manual languages: Simplified Chinese, German, English, Spanish, French, Italian, Japanese, Polish, Russian, Thai
- Package width: 253 mm
- Package depth: 417 mm
- Package height: 152 mm
- Package weight: 6.68 kg
Logistics data
- Shipping (inner) case length: 44 cm
- Shipping (inner) case width: 32.5 cm
- Shipping (inner) case height: 28.3 cm
- Shipping (inner) case net weight: 15.2 kg
- Products per shipping (inner) case: 2 pc(s)
- Warranty period: 10 year(s)
Other features
- Screws included: Yes
- Cable ties included: Yes
