Description

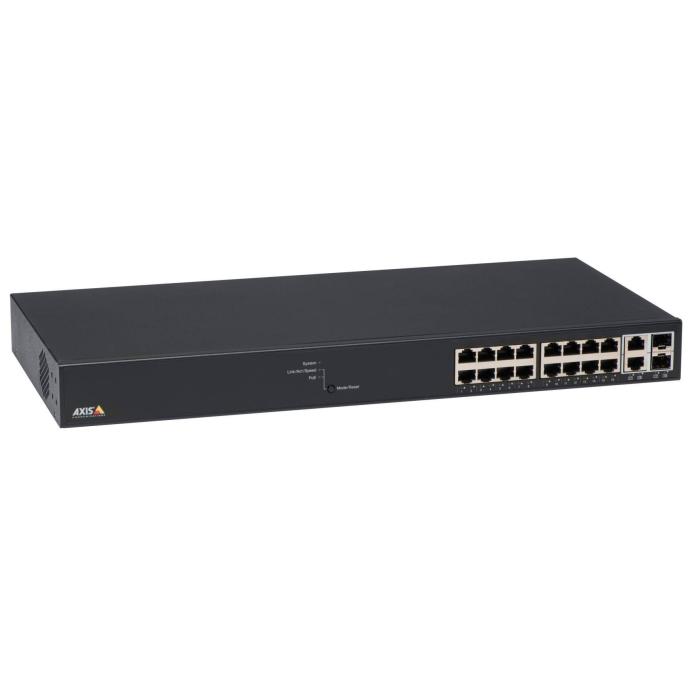

Axis 5801-693 managed network switch with 16 RJ-45 Gigabit Ethernet (10/100/1000) ports and 2 SFP connectors for fibre optic, designed in black to integrate into professional network environments. This model supports Power over Ethernet according to the IEEE 802.3at standard, allowing compatible devices to be powered directly from the port, while also offering quality of service (QoS), VLAN with Private VLAN functions and access control lists (ACL) for advanced traffic management. With a switching capacity of 36 Gbit/s, a throughput of 26.8 Mpps and support for jumbo frames of up to 9216 bytes, it facilitates data transfer in demanding networks. It includes password protection, DHCP functions such as server and snooping, and complies with IEEE 802. standards.
Specifications
Management features
- Switch type: Managed
- Quality of Service (QoS) support: Yes
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity: 16
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
- Fiber ports quantity: 2
- Fiber optic connector: SFP
Network
- Networking standards: IEEE 802.1x, IEEE 802.3at
- 10G support: No
- VLAN support: Yes
- Virtual LAN features: Private VLAN
Data transmission
- Switching capacity: 36 Gbit/s
- Throughput: 26.8 Mpps
- MAC address table: 8000 entries
- Jumbo frames support: Yes
- Jumbo frames: 9216
Security
- DHCP features: DHCP server, DHCP snooping
- Access Control List (ACL): Yes
- Password protection: Yes
Protocols
- Supported network protocols: IPv4, IPv6, HTTP, HTTPS, QoS, Bonjour, UPnP, SNMP v1/v2c/v3, DNS, NTP, TCP, UDP, IGMP, ICMP, DHCP, ARP, SSH, STP, RSTP, MSTP, LL
Design
- Rack mounting: Yes
- Product colour: Black
- Housing material: Metal
Power
- Power supply included: Yes
- AC input voltage: 100 - 240 V
- AC input frequency: 50 - 60 Hz
Power over Ethernet (PoE)
- Power over Ethernet (PoE): Yes
- Power over Ethernet plus (PoE+) ports quantity: 16
- Power over Ethernet (PoE) power per port: 30 W
- Total Power over Ethernet (PoE) budget: 240 W
Operational conditions
- Operating temperature (T-T): 0 - 50 °C
- Storage temperature (T-T): -10 - 70 °C
- Operating relative humidity (H-H): 10 - 90%
- Storage relative humidity (H-H): 5 - 95%
Weight & dimensions
- Width: 442 mm
- Depth: 211 mm
- Height: 44 mm
- Weight: 3 kg
Packaging content
- Quick start guide: Yes
- Rack mount kit: Yes
- Cables included: AC
Certificates
- Certification: EN 55032 Class A, EN 55024, FCC Part 15 Subpart B Class A, VCCI Class A, ICES-003 Class A, KCC, RCM, IEC/EN/UL 60950-1, S-mark (
Logistics data
- Harmonized System (HS) code: 85176990
